MS27484T16F35

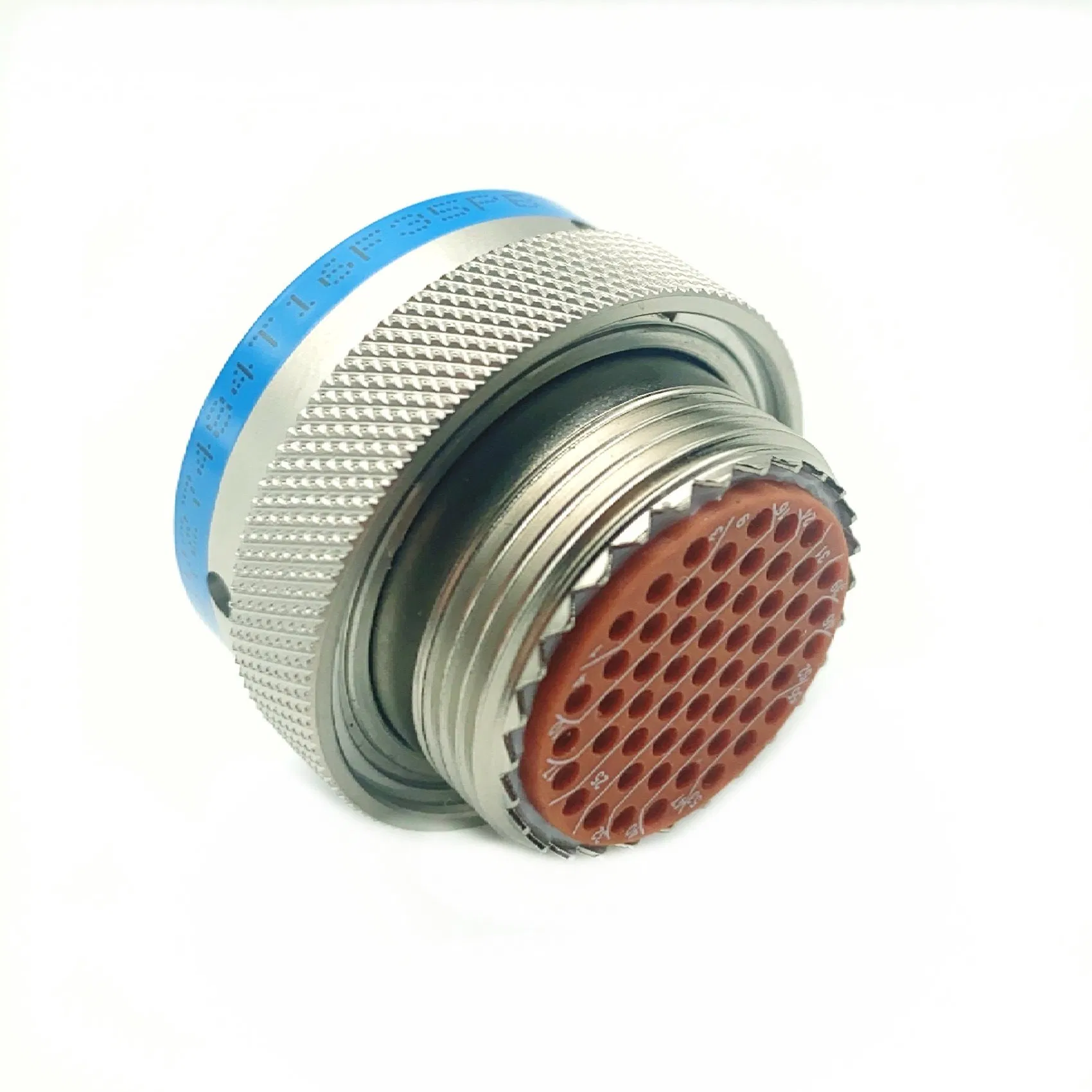

MS27484T16F35 identifies a Series II MS27484 straight-plug body with grounding fingers and bayonet coupling. Its shell16, insert16-35 configuration has fifty-five size22D positions and an electroless-nickel aluminum shell. Select contact configuration and keying with the complete ordering code for the offered assembly.
Product number MS27484T16F35
- Series
- Series II
- Shell / insert
- 16 / 35
- Contact positions
- 55 positions; 55×22D
- Material / finish
- Aluminum alloy; electroless nickel
Description
MS27484T16F35 identifies a Series II MS27484 straight-plug body with grounding fingers and bayonet coupling. Its shell16, insert16-35 configuration has fifty-five size22D positions and an electroless-nickel aluminum shell. Select contact configuration and keying with the complete ordering code for the offered assembly.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series II; Straight plug with grounding fingers |
|---|---|
| Shell size / insert arrangement | 16 / 35 |
| Contact quantity and size mix | 55 positions; 55×22D |
| Coupling | Bayonet |
| Shell material and finish | Aluminum alloy; electroless nickel |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which body and insert are identified for MS27484T16F35?
The Series II bayonet plug body uses shell16 and insert16-35, with 55 catalog positions (55×22D).
How is the installation checked for MS27484T16F35?
The listed configuration is a straight plug with grounding fingers. Check coupling clearance, rear termination space and the complete mating-half drawing for shell 16; confirm any backshell interface with the selected accessory drawing.
How are contacts and keying specified for MS27484T16F35?
The base code ends at insert35. Select pin or socket contacts, termination and keying with the complete offered-assembly ordering code; the product photo does not define these options.
What should an RFQ include for MS27484T16F35?
Include MS27484T16F35, quantity, complete contact/keying configuration, mating-half part number, installation drawing and required offered-unit documents.
