MIL-DTL-38999 Series II · catalog configuration
MS27484T12F04SHN43

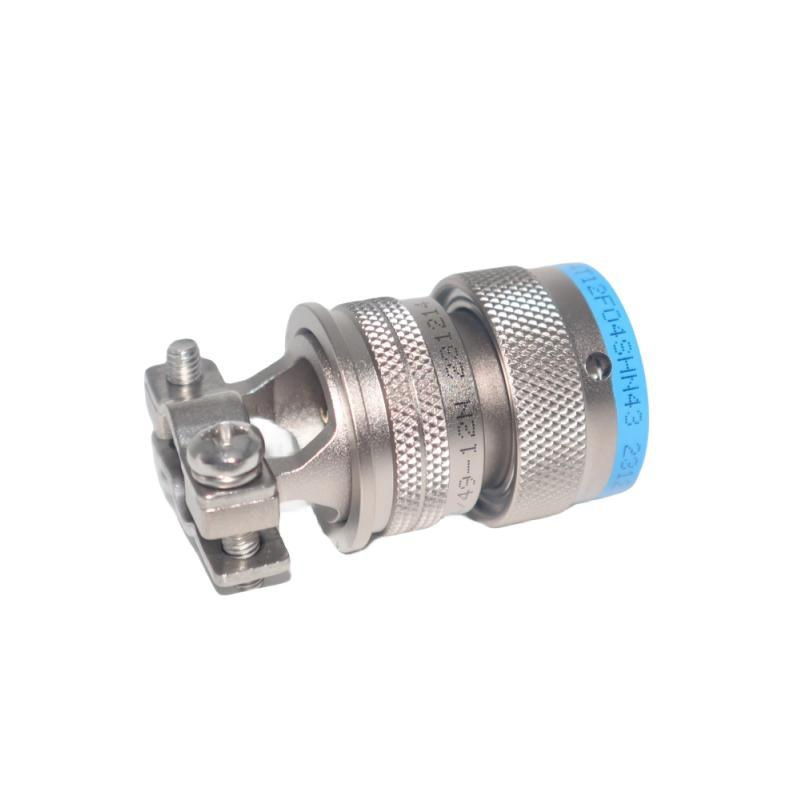

MS27484T12F04SHN43 is a MIL-DTL-38999 Series II straight plug with grounding fingers. The catalog configuration uses shell 12, insert 04, with 4 contact positions (4×16).
Product number MS27484T12F04SHN43
- Series
- Series II
- Shell / insert
- 12 / 04
- Contact positions
- 4 positions; 4×16
- Material / finish
- Aluminum alloy; electroless nickel
Description
MS27484T12F04SHN43 is a MIL-DTL-38999 Series II straight plug with grounding fingers. The catalog configuration uses shell 12, insert 04, with 4 contact positions (4×16). The listed contact configuration is Socket contact configuration; keying is N. Shell material and finish: Aluminum alloy; electroless nickel. Keep the complete product number when requesting the offered-unit drawing and contact supply details.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series II; Straight plug with grounding fingers |
|---|---|
| Shell size / insert arrangement | 12 / 04 |
| Contact quantity and size mix | 4 positions; 4×16 |
| Coupling | Bayonet |
| Contact / termination | Socket contact configuration |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; electroless nickel |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which insert configuration is listed for MS27484T12F04SHN43?
The catalog lists shell 12, insert 04, with 4 positions (4×16). Confirm supplied contact population with the offered-unit drawing.
What installation information matters for MS27484T12F04SHN43?
The listed configuration is a straight plug with grounding fingers. Check coupling clearance, rear termination space and the complete mating-half drawing for shell 12; confirm any backshell interface with the selected accessory drawing.
What contact and keying configuration is listed for MS27484T12F04SHN43?
The listed contact configuration is Socket contact configuration; keying is N. Compare the complete mating-half code and drawings.
What should an RFQ for MS27484T12F04SHN43 include?
Send the complete MS27484T12F04SHN43 product number, quantity, mating-half code, installation drawing, required supplied contacts and documents.
