VG95234 A
Front-panel wall-mount receptacle
Fixed receptacle family for front-panel installation.
Reverse-bayonet power and signal connector systems
VG95234 Reverse-Bayonet Connector Alternatives
A technical sourcing page for rugged reverse-bayonet plugs, receptacles and integrated rear-accessory configurations identified by VG95234 style, shell, insert, contacts, rotation and finish.
VG95234 connector alternativeVG95234 reverse bayonet connectorVG95234 plug supplierVG95234 receptacle equivalent

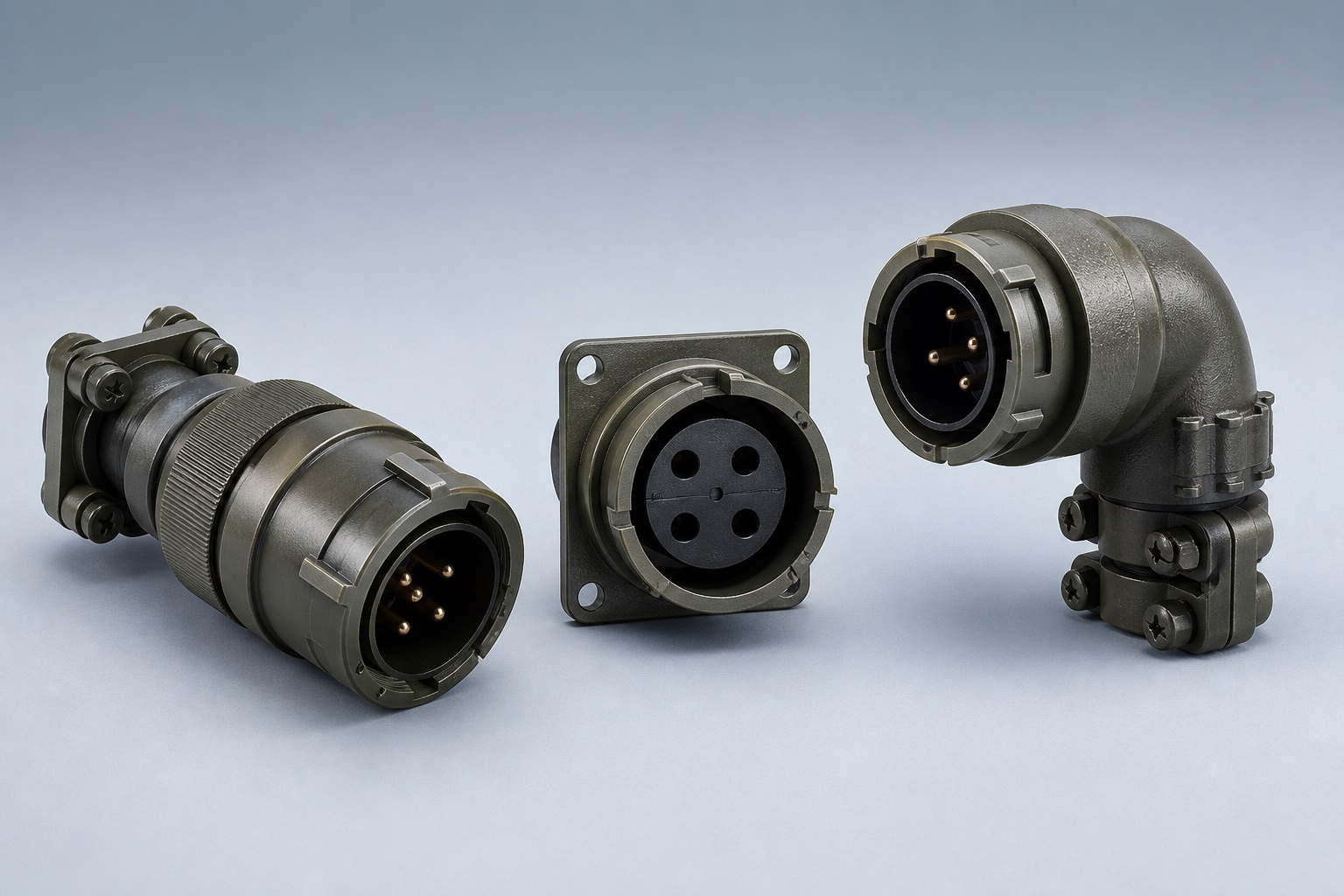

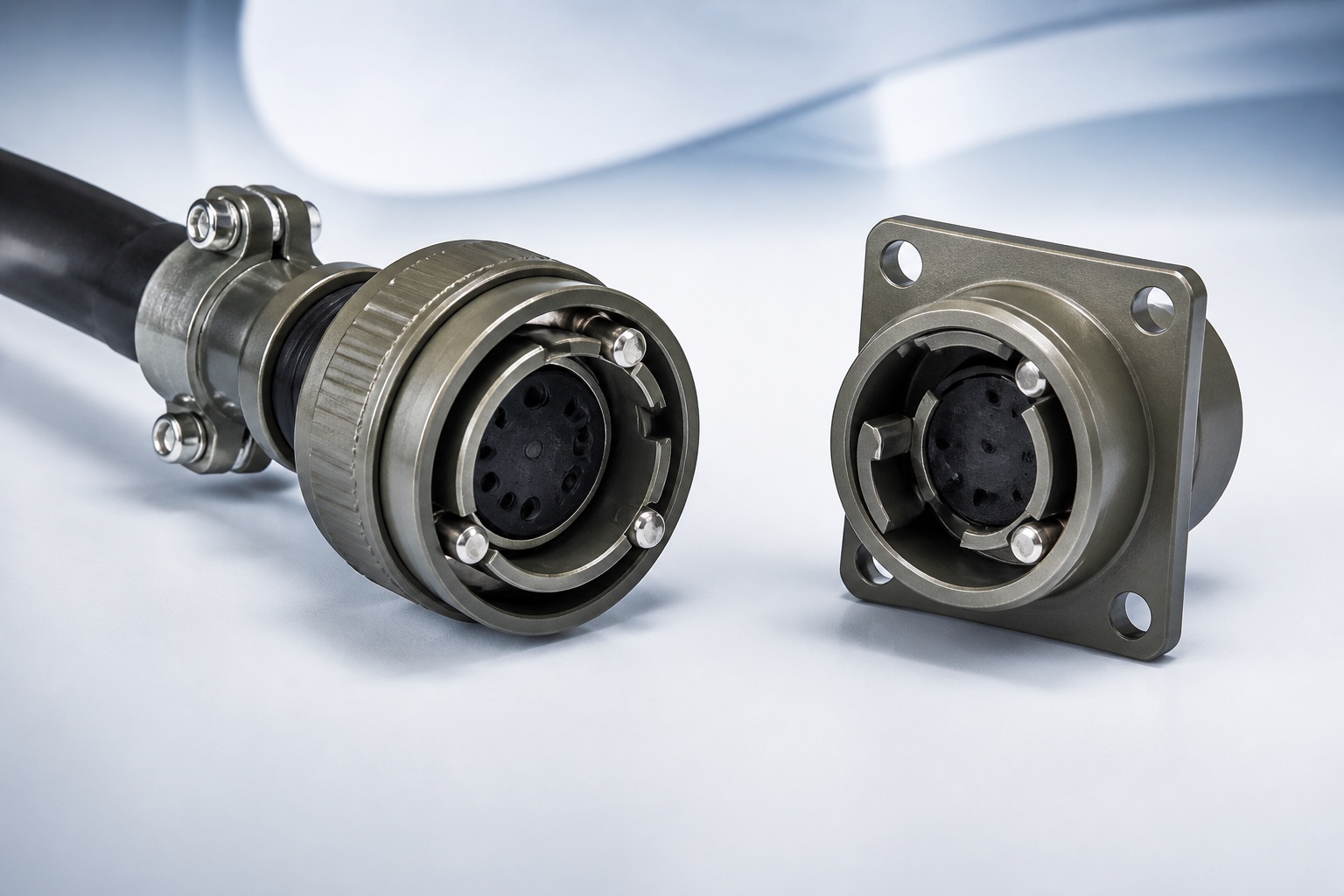

AI-GENERATED SERIES VISUALFamily-level visual: VG95234 D-style straight plug with cable clamp and VG95234 A-style wall-mount receptacle. Visual reference only; not an engineering drawing or exact SKU photo.
Quick Answer
Can Tradin Connect support VG95234 connectors?
Yes. Tradin Connect can review VG95234-style power and signal connector requirements for compatible alternative sourcing. We identify the exact shell style and rear treatment first, then confirm insert arrangement, contacts, alternate rotation, finish, cable entry, sealing and EMI needs.
Reference familyVG95234 reverse-bayonet power and signal connectors
Core selection axisShell style + shell size + insert + pin/socket + rotation + finish
Rear optionsCable clamp, conduit, heat-shrink adapter and EMI/RFI configurations
Common project contextRugged vehicles, transportation and harsh industrial systems
Supply positioningCompatible alternative only after documented interface review
Commercial positioning: These pages promote compatible, cost-focused alternatives and custom sourcing paths. They do not represent alternative products as original, universally interchangeable, QPL-listed or identical in every performance dimension.
Model Architecture
Major VG95234 model families
Use the style code to orient the discussion—not to complete a missing part number. Every remaining segment still needs verification.
VG95234 B1 / B2
Rear-panel wall-mount receptacle
Threaded-hole and through-hole mounting variants.
VG95234 C1 / C2
Bulkhead feed-through receptacle
Panel feed-through family; both sides of the interface require review.
VG95234 D
Straight plug with cable clamp
Straight cable plug family with bushing and wire-sealing grommet.
VG95234 E
90° plug with cable clamp
Right-angle cable plug family for constrained routing.
VG95234 F
In-line receptacle
Cable-side receptacle with clamp, bushing and wire sealing.
VG95234 M
EMI/RFI backshell plug
Integrated grounding and heat-shrink boot adapter configuration.
High-intent references covered on this page
VG95234 AVG95234 B1 / B2VG95234 C1 / C2VG95234 DVG95234 EVG95234 FVG95234 MPublished Product Records
VG95234 model sourcing window
No published SKU has been assigned to this series yet. The model families remain available for cross-reference review without creating placeholder product pages.
Send one of these starting references
Request Model ReviewVG95234 A · VG95234 B1 / B2 · VG95234 C1 / C2 · VG95234 D · VG95234 E
Selection Guide
Four checks before we quote
This is the practical information procurement and engineering teams need to reduce cross-reference risk.
DecisionWhy it mattersWhat to send
01Which lettered shell style?A, B, C, D, E, F and later accessory-integrated styles serve different installations.Complete style code or clear overall photo
02Which shell and insert?The family supports multiple shell sizes and insert arrangements; neither can be guessed.Full number segment or governing drawing
03Which contact and rotation?Pin/socket and normal or alternate rotation determine mating.P/S code, rotation and mating part
04Which rear and EMC configuration?Clamp, conduit, boot adapter, grounding fingers and EMI backshells change the assembly.Cable OD, shielding method and backshell requirement
Representative Form Factors
Identify the lettered VG95234 body and rear hardware together
The shell letter describes more than the mating face. Panel mounting, straight or 90-degree cable exit, clamp construction and EMI treatment all affect the complete assembly and must be reviewed together.
Beyond One Connector
From a part number to a complete harness-side solution
Our value is not simply offering a lower-cost connector. We organize the connector, mating half, contacts, rear accessories, shielding, sealing and cable protection around one reviewed BOM.
Send Your BOMReverse-bayonet interface review
Coupling and shell style are verified before any insert or accessory match is proposed.
Rugged cable termination
Cable clamp, sealing grommet, conduit or heat-shrink transition can be included in one technical check.
EMI/RFI option mapping
Grounding and shield-termination requirements are treated as project inputs, never assumed from a product photo.
Complete cable-side package
Contacts, rear accessories, boots, sealing and harness protection can be coordinated with the connector.
CONTENT OWNER
Tradin Connect Technical Sourcing Team
Last reviewed: 24 August 2026
How this page was prepared
Model-family structure was checked against manufacturer technical catalogs and the existing Tradin Connect catalog. The page deliberately avoids unverified qualification, performance, stock, lead-time and customer-use claims. Final quoted specifications still require document review.
Technical Sources
References used for this pre-review
Manufacturer catalogs describe the reference families; they do not prove that an alternative has identical performance or qualification.
- 01VG95234 model-family guideTradin ConnectOpen internal guide →
- 02VG95234 selection and visual guideTradin ConnectOpen internal guide →
- 03VG95234 Bayonet-Lock Connectors catalogGlenairCatalog reference
- 04ACA-B and GT Reverse Bayonet Coupling catalogAmphenol Industrial OperationsCatalog reference
- 05CIRH circular connectors based on VG95234TE ConnectivityCatalog reference
Question & Answer
VG95234 sourcing questions
Concise answers for buyers, distributors, harness makers and engineers. Exact compatibility, documentation and qualification are still confirmed against the quoted item.
01What makes VG95234 different from a threaded MIL-DTL-5015 connector?+
VG95234 product families use a reverse-bayonet coupling approach, while common MIL-DTL-5015 MS310x references use threaded coupling. Shared insert ancestry does not by itself prove that complete connectors will mate.
02What do the VG95234 letters A, D and E mean?+
In the cited Glenair catalog, A identifies a front-panel wall-mount receptacle, D a straight plug with cable clamp and sealing hardware, and E a 90-degree plug with cable clamp and sealing hardware.
03Can you supply VG95234 connectors with EMI backshells?+
EMI/RFI configurations can be reviewed when the full shielding, grounding, cable, shell and environmental requirements are provided. Availability and exact construction are confirmed per quotation.
04Can I cross-reference a manufacturer number instead of a VG number?+
Yes. Send the complete manufacturer number, catalog page, drawing or sample information. We will map it to the corresponding interface requirements before presenting an alternative.
05Are all VG95234 alternatives qualified products?+
No. Qualification must be proven for the specific quoted product with current documentation. Without that proof, the offer is described as a compatible alternative subject to validation.
Cross-Reference Request
Send the complete VG95234 part number.
Add the drawing, mating part, cable details, quantity, application, required documents and validation plan for a more dependable review.
