PT00 / MS3110
Wall-mount receptacle
Series I solder-contact reference family; verify service class, insert and contacts.
Miniature bayonet-coupled circular connectors
MIL-DTL-26482 Connector Alternatives & Cross-Reference Support
A focused sourcing page for buyers who need a compatible alternative to MIL-DTL-26482 Series I or a confirmed Series II configuration—matched from the complete part number, drawing, mating half and harness requirements.
MIL-DTL-26482 connector alternativeMIL-C-26482 connectorPT connector equivalentMS3116 connector alternative

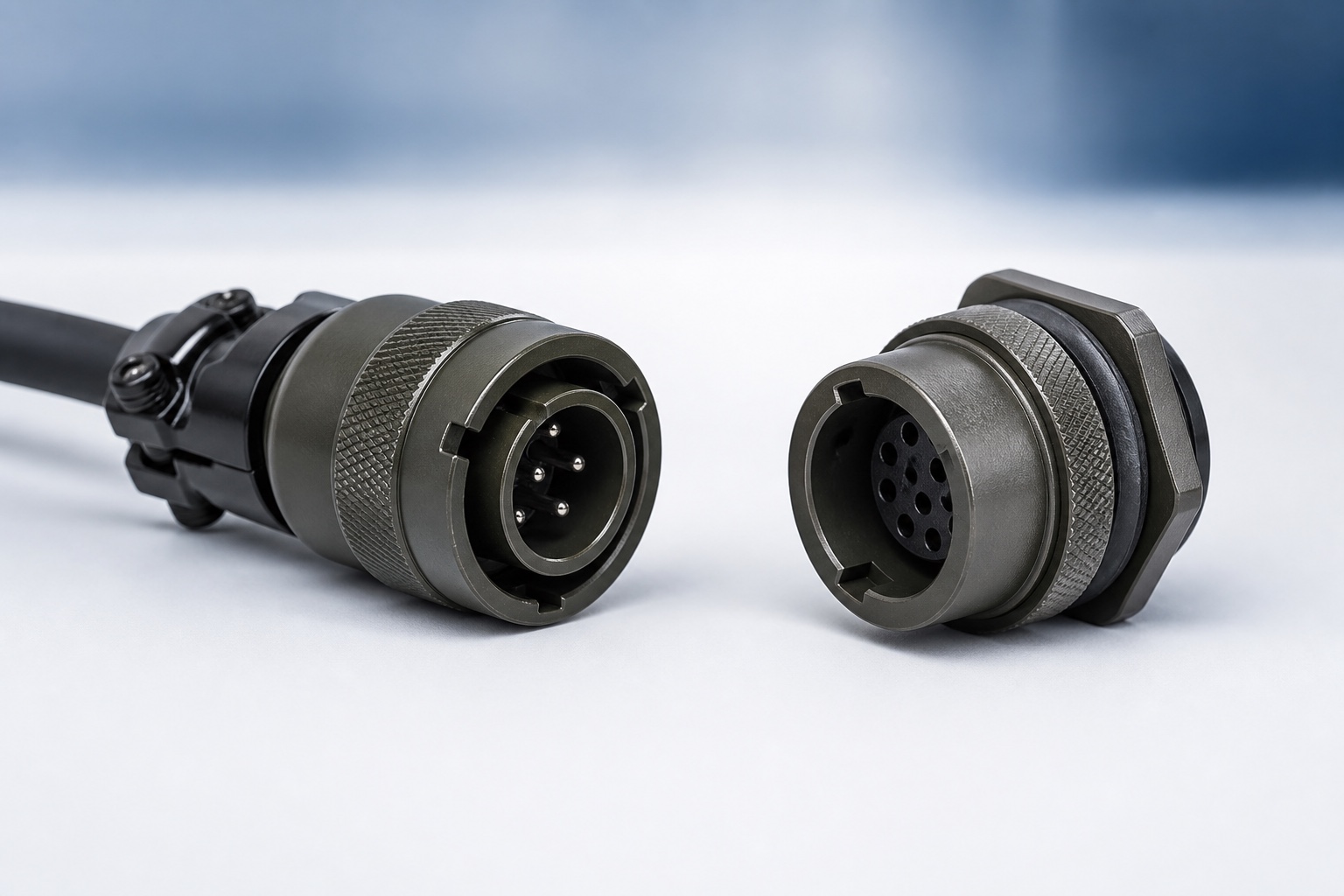

AI-GENERATED SERIES VISUALFamily-level visual: PT06 / MS3116-style straight plug with PT07 / MS3114-style jam-nut receptacle. Visual reference only; not an engineering drawing or exact SKU photo.
Quick Answer
Can Tradin Connect support MIL-DTL-26482 connectors?
Yes. Tradin Connect can review MIL-DTL-26482-style plugs and receptacles for compatible alternative sourcing, including PT/MS reference families already represented in our catalog. We confirm the exact series, shell style, insert arrangement, contacts, keying, finish and rear accessories before quotation.
Reference familyMIL-DTL-26482 Series I / Series II (must be identified exactly)
Common commercial familyPT / PT-SE miniature circular connectors
Coupling focusBayonet-coupled plug and receptacle configurations
Quotation routePart number, drawing, photo, mating half, cable data or sample
Supply positioningCompatible alternative or custom option—not represented as original
Commercial positioning: These pages promote compatible, cost-focused alternatives and custom sourcing paths. They do not represent alternative products as original, universally interchangeable, QPL-listed or identical in every performance dimension.
Model Architecture
Major MIL-DTL-26482 model families
Use the style code to orient the discussion—not to complete a missing part number. Every remaining segment still needs verification.
PT01 / MS3111
Cable-connecting receptacle
In-line cable interface; confirm the mating plug and cable exit.
PT02 / MS3112
Box-mount receptacle
Compact flange receptacle style for equipment interfaces.
PT07 / MS3114
Jam-nut receptacle
Single-hole panel mounting family; panel details remain part of review.
View matching product →PT06 / MS3116
Straight plug
Cable plug family; shell, insert, contact type and rotation must all match.
View matching product →PT-SE / MS312x
Crimp-contact families
Crimp variants require their own full reference; never infer from a solder model.
High-intent references covered on this page
Published Product Records
MIL-DTL-26482 products with direct internal links
Open a real product record to review its part number, images, specifications and inquiry path. The exact quoted configuration is still confirmed before supply.
MIL-DTL-26482 Connectors
PT06A-16-26P Compatible 26-Pin Bayonet Straight Plug
TC-PT06A-16-26P
PT06A-16-26P compatible high-density bayonet straight plug with 26 pin solder contacts for multi-circuit cable assemblies.
View Product
MIL-DTL-26482 Connectors
PT07E-10-6S Compatible 6-Socket Jam Nut Receptacle
TC-PT07E-10-6S
PT07E-10-6S compatible miniature jam-nut receptacle with six socket solder contacts and environmental rear-seal configuration.
View Product
MIL-DTL-26482 Connectors
PT06A-10-6P Compatible 6-Pin Bayonet Straight Plug
TC-PT06A-10-6P
PT06A-10-6P compatible miniature bayonet straight plug with six pin solder contacts for compact rugged cable assemblies.
View ProductMIL-DTL-26482 Connectors
MIL-DTL-26482 Receptacle
TC-26482-REC
Receptacle option for MIL-DTL-26482 style circular connector replacement and sourcing programs.
View ProductMIL-DTL-26482 Connectors
MIL-DTL-26482 Plug
TC-26482-PLUG
Lower-cost military circular plug alternative for rugged industrial, repair and control wiring applications.
View ProductMIL-DTL-26482 Connectors
MS3116 / PT06 MIL-DTL-26482 Series I Straight Plug
MS3116 / PT06
Family-level draft for MS3116 and PT06 MIL-DTL-26482 Series I solder-contact straight plugs.
View ProductSelection Guide
Four checks before we quote
This is the practical information procurement and engineering teams need to reduce cross-reference risk.
DecisionWhy it mattersWhat to send
01Series I or Series II?Similar family naming does not prove the same interface or performance.Full prefix, datasheet or clear coupling photo
02Which shell style?Wall mount, box mount, jam nut, cable receptacle and plug styles install differently.Part number plus panel or cable-side requirement
03Which insert and contacts?Contact count alone is insufficient; size, arrangement and pin/socket matter.Insert code, pin/socket requirement and mating half
04Which rear treatment?Cable clamp, strain relief, sealing and boot interfaces affect the total assembly.Cable OD, shield, boot and backshell needs

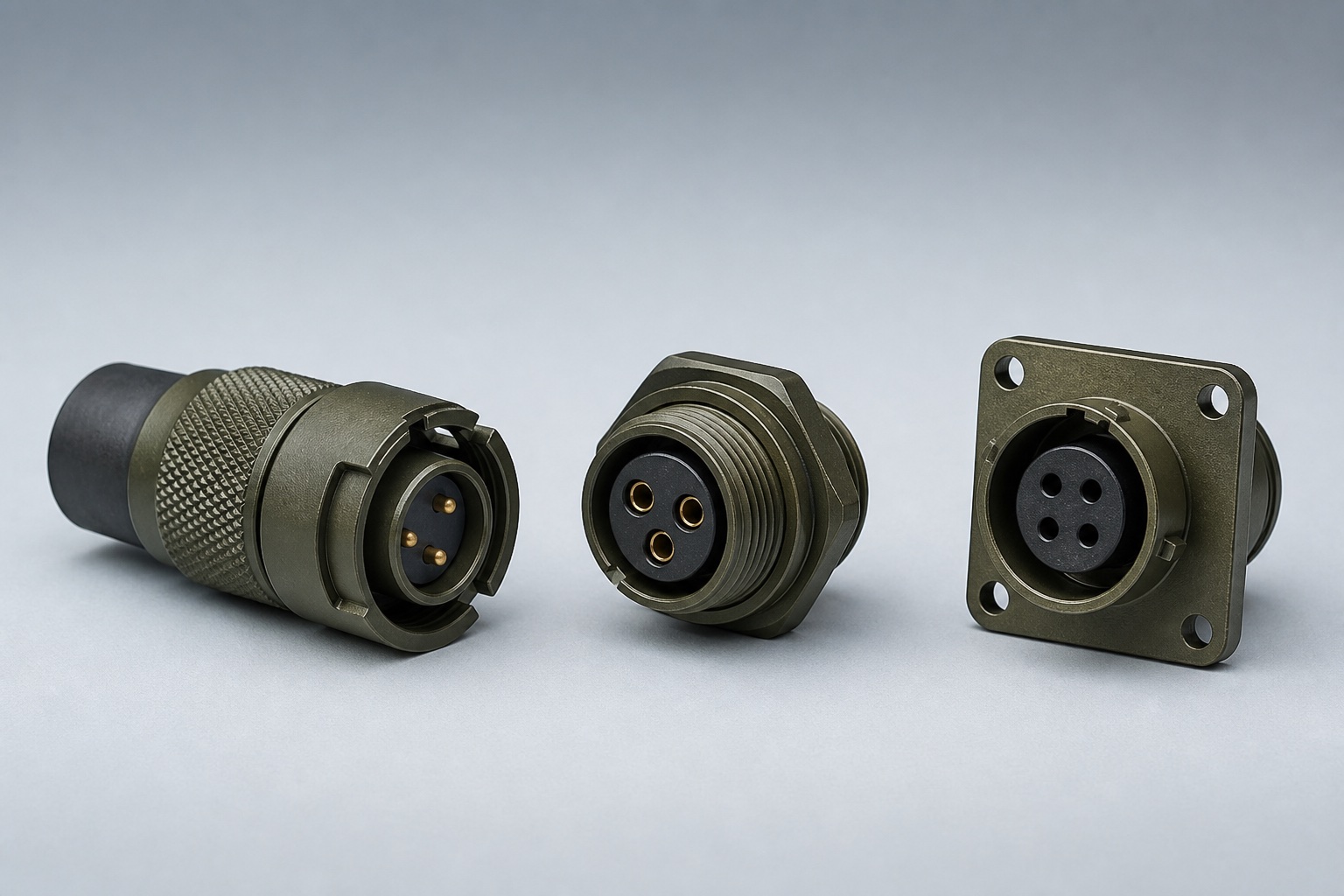

Representative Form Factors
Recognize the PT / MS311x shell style before matching details
Straight plugs, jam-nut receptacles and flange receptacles install differently even when they belong to the same 26482 family. Use the overall form only as a first check, then verify the complete number and mating interface.
Beyond One Connector
From a part number to a complete harness-side solution
Our value is not simply offering a lower-cost connector. We organize the connector, mating half, contacts, rear accessories, shielding, sealing and cable protection around one reviewed BOM.
Send Your BOMPart-number cross reference
We compare the complete reference instead of matching on “26482” alone.
Mating-pair review
Plug and receptacle are reviewed together with keying, contacts and installed interface.
Harness BOM supply
Connector, contacts, clamp or backshell, boot, sealing and cable-protection items can be quoted as one project.
Sample validation path
For alternative products, samples and customer validation are recommended before production commitment.
CONTENT OWNER
Tradin Connect Technical Sourcing Team
Last reviewed: 24 August 2026
How this page was prepared
Model-family structure was checked against manufacturer technical catalogs and the existing Tradin Connect catalog. The page deliberately avoids unverified qualification, performance, stock, lead-time and customer-use claims. Final quoted specifications still require document review.
Technical Sources
References used for this pre-review
Manufacturer catalogs describe the reference families; they do not prove that an alternative has identical performance or qualification.
- 01MIL-DTL-26482 model-family guideTradin ConnectOpen internal guide →
- 02MIL-DTL-26482 selection and visual guideTradin ConnectOpen internal guide →
- 03PT Series Miniature Cylindrical Connectors catalogAmphenol Industrial OperationsCatalog reference
- 04MIL-DTL-26482 Series II ConnectorsAmphenol AerospaceCatalog reference
Question & Answer
MIL-DTL-26482 sourcing questions
Concise answers for buyers, distributors, harness makers and engineers. Exact compatibility, documentation and qualification are still confirmed against the quoted item.
01Can a PT connector be used as a MIL-DTL-26482 replacement?+
PT is a widely used commercial reference family associated with MIL-DTL-26482 Series I, but a prefix alone is not enough to approve a replacement. We need the complete original number, mating half, service requirements and validation plan.
02Do Series I and Series II MIL-DTL-26482 connectors interchange?+
Do not assume interchangeability from the standard number alone. The exact series, shell, coupling, contacts, keying and approved mating interface must be verified from the governing drawing or catalog.
03Which MIL-DTL-26482 models can you quote?+
We can review wall-mount, box-mount, cable and jam-nut receptacles plus straight-plug families. Current catalog examples include PT06A-16-26P, PT07E-10-6S and PT06A-10-6P compatible alternatives.
04What information gives the fastest quotation?+
Send the complete part number, quantity, plug or receptacle style, mating part, insert and contact details, cable OD, application environment and any required inspection documents.
05Are your alternatives QPL-listed or original-brand products?+
Not unless documentation for the specific quoted item proves that status. Our default offer is a compatible alternative or custom sourcing option, with final specification and qualification route confirmed in the quotation.
Cross-Reference Request
Send the complete MIL-DTL-26482 part number.
Add the drawing, mating part, cable details, quantity, application, required documents and validation plan for a more dependable review.
