D38999/26KE11PN

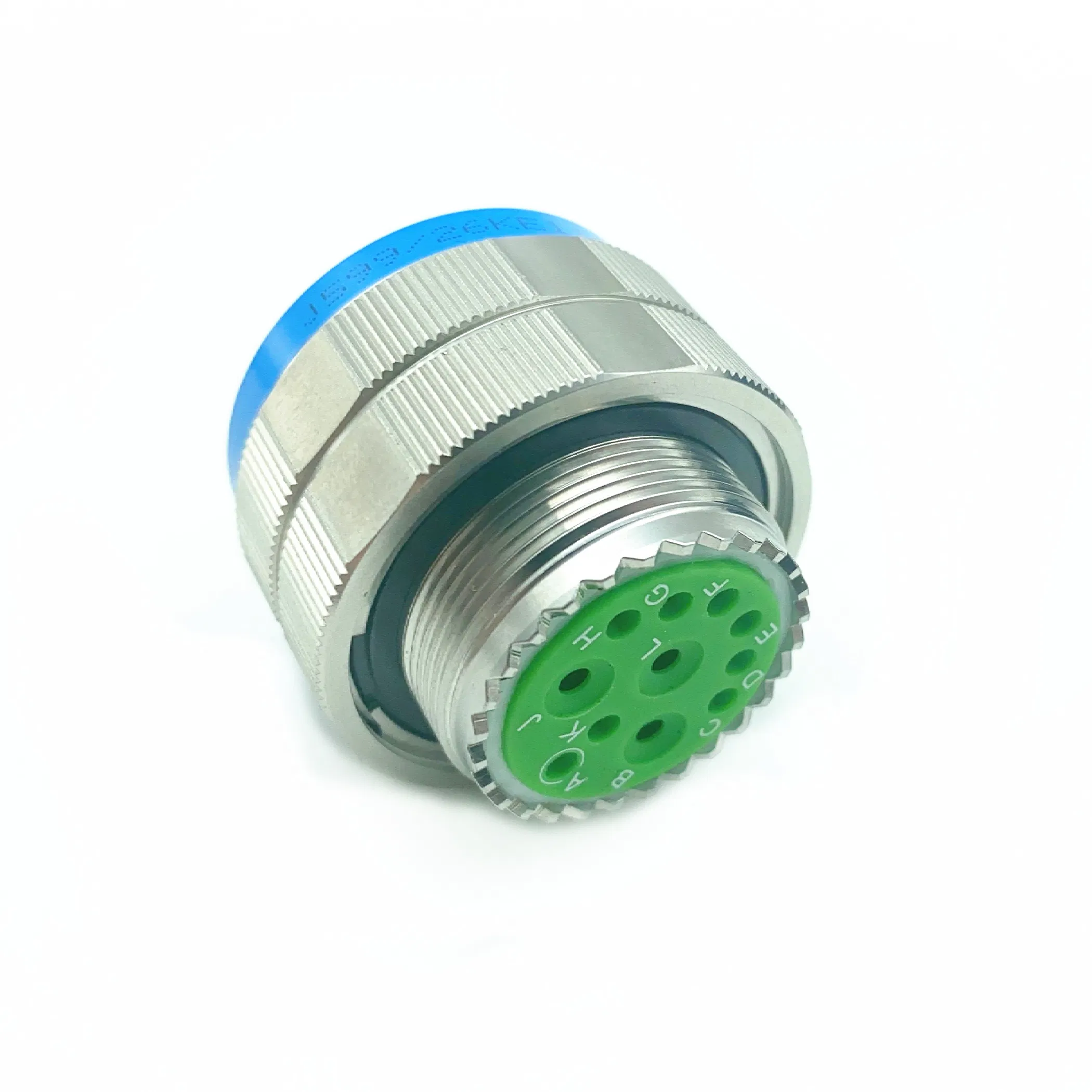

D38999/26KE11PN is a MIL-DTL-38999 Series III straight plug. The catalog configuration uses shell size E (17), insert arrangement 11, with 11 contact positions (8×20, 1×12 coax, 2×12 twinax).
Product number D38999/26KE11PN
- Series
- Series III
- Shell / insert
- E (17) / 11
- Contact positions
- 11 positions; 8×20, 1×12 coax, 2×12 twinax
- Material / finish
- Passivated stainless steel
Description
D38999/26KE11PN is a MIL-DTL-38999 Series III straight plug. The catalog configuration uses shell size E (17), insert arrangement 11, with 11 contact positions (8×20, 1×12 coax, 2×12 twinax). The listed coupling is Triple-start threaded, self-locking; shell material and finish are Passivated stainless steel. Match the full configuration with the offered unit and controlled drawing.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Straight plug |
|---|---|
| Shell size / insert arrangement | E (17) / 11 |
| Contact quantity and size mix | 11 positions; 8×20, 1×12 coax, 2×12 twinax |
| Coupling | Triple-start threaded, self-locking |
| Contact / termination | P (crimp pin) |
| Keying / option | N |
| Shell material and finish | Passivated stainless steel |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/26KE11PN?
The catalog lists shell E (17), insert 11 and 11 positions with 8×20, 1×12 coax, 2×12 twinax. Position count describes the insert; it does not prove supplied contact population.
What mounting information matters for D38999/26KE11PN?
The listed configuration is a straight plug. Check coupling clearance, rear termination space and the complete mating-half drawing for shell E (17); confirm any backshell interface with the selected accessory drawing.
How should a mating half be checked for D38999/26KE11PN?
Check MIL-DTL-38999 Series III, shell E (17), insert 11 and keying N. Compare complete controlled drawings and complementary contact configurations.
What should an RFQ for D38999/26KE11PN include?
Send D38999/26KE11PN, quantity, the mating-half code, mounting or harness drawing, contact supply and termination requirements, and required documents.
