MIL-DTL-38999 Series III · catalog configuration

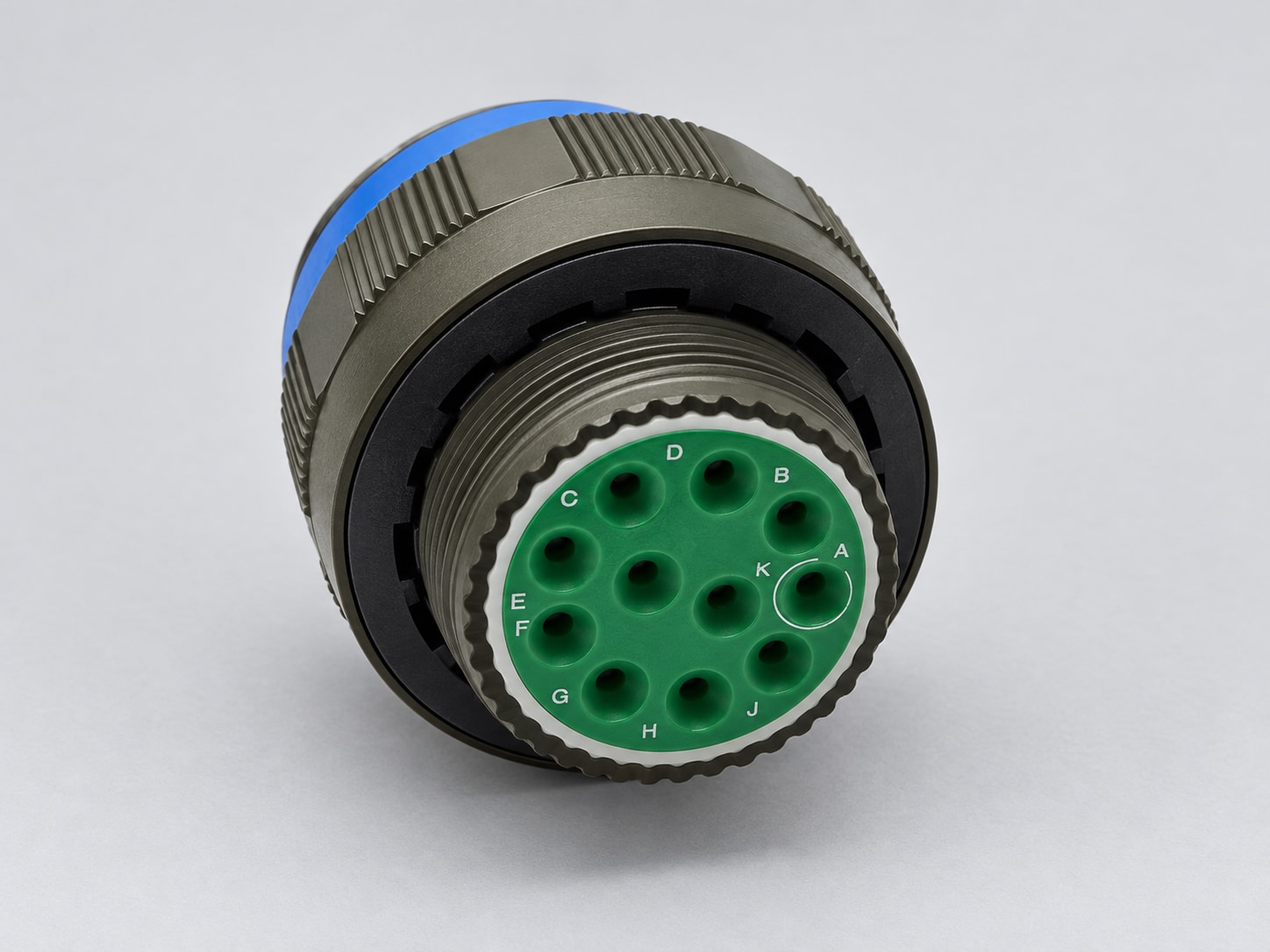

D38999/26WG11PA
D38999/26WG11PA is a catalog reference for a MIL-DTL-38999 Series III straight plug. The cited catalog lists shell G (21), insert 11, and 11 positions (11×12); confirm the offered configuration against its controlled drawing.
Product number D38999/26WG11PA
- Series
- Series III
- Shell / insert
- G (21) / 11
- Contact positions
- 11 positions (11×12)
- Material / finish
- Aluminum alloy; olive drab cadmium
Description
D38999/26WG11PA is a catalog reference for a MIL-DTL-38999 Series III straight plug. The cited catalog lists shell G (21), insert 11, and 11 positions (11×12); confirm the offered configuration against its controlled drawing. The catalog lists triple-start threaded, self-locking, p (crimp pin) contacts, keying A, and aluminum alloy; olive drab cadmium. Match the mating half, mounting interface, complete ordering code and controlled drawing before ordering. Catalog references: Own 2025 pp.45-47; Donconn pp.3-5 | Own 2025 pp.45-47,104-105 | Own 2025 p.105 row 56. These describe catalog/family data and do not verify a supplied unit, qualification, test result or certification.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Straight plug |
|---|---|
| Coupling | Triple-start threaded, self-locking |
| Ordering-code service / finish suffix | W |
| Shell size / insert arrangement | G (21) / 11 |
| Contact quantity and size mix | 11 positions (11×12) |
| Contact type / termination | P (crimp pin) |
| Keying / option | A |
| Shell material and finish | Aluminum alloy; olive drab cadmium |
| Insert service rating | II |
| Catalog withstand voltage at sea level | 2300 V |
| Catalog withstand voltage at 21 km | 1000 V |
| Catalog current rating by contact size | 12: 23 A/contact |
| Catalog contact resistance by size | 12: ≤1.5 mΩ |
| Catalog operating temperature | -65 to +175 °C |
| Catalog salt spray | 500 h |
| Family catalog mating life | ≥500 mating cycles (family catalog) |
| Family catalog insulation resistance | ≥5000 MΩ normal (family, own pp.46/73) |
| Family catalog shell continuity | ≤2.5 mΩ |
| Family catalog EMI shielding | ≥85 dB (100 MHz–1 GHz); ≥50 dB (1–10 GHz) (family, own pp.46/72) |
| Catalog accessory thread | M 31×1-6g |
| Catalog drawing reference | Own 2025 p.57, 7.1 plug drawing |
| Catalog source | Own 2025 pp.45-47; Donconn pp.3-5 | Own 2025 pp.45-47,104-105 | Own 2025 p.105 row 56 |
| Data boundary | Internal catalog basis; not a SKU test or qualification certificate |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
What does D38999/26WG11PA identify?
D38999/26WG11PA is the exact catalog reference to check in a MIL-DTL-38999 Series III sourcing request; confirm the supplied item against its controlled drawing.
What configuration is listed for D38999/26WG11PA?
The cited catalog lists shell G (21), insert 11, 11 positions (11×12), P (crimp pin) contacts and keying A. Confirm the offered configuration against its controlled drawing.
What should be checked before mating D38999/26WG11PA?
Match the series, shell, insert arrangement, contact type, keying and straight plug interface using the full ordering code and assembly drawing.
What should an RFQ for D38999/26WG11PA include?
Send the complete part number, mating-half code, drawing or photo, required quantity and document requirements.
