D38999/26FG29BN-H

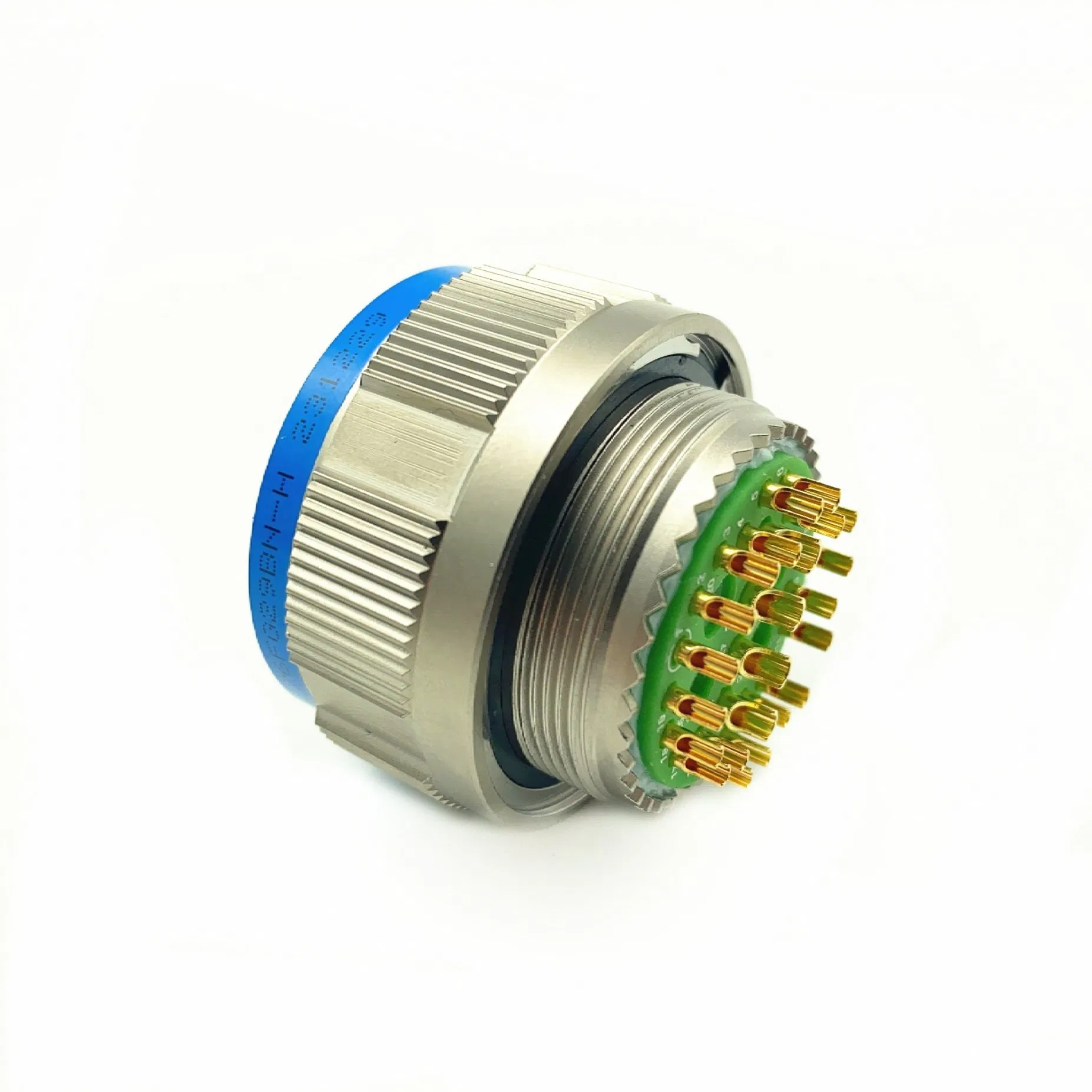

D38999/26FG29BN-H is a MIL-DTL-38999 Series III straight plug. The supplier catalog configuration uses shell size 21, insert arrangement 29, with 27 contact positions (19×20, 4×16, 4×12).
Product number D38999/26FG29BN-H
- Series
- Series III
- Shell / insert
- 21 / 29
- Contact positions
- 27 positions; 19×20, 4×16, 4×12
- Material / finish
- Aluminum alloy; electroless nickel
Description
D38999/26FG29BN-H is a MIL-DTL-38999 Series III straight plug. The supplier catalog configuration uses shell size 21, insert arrangement 29, with 27 contact positions (19×20, 4×16, 4×12). The listed coupling is Triple-start threaded, self-locking; shell material and finish are Aluminum alloy; electroless nickel. Match the full configuration with the offered unit and controlled drawing.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Straight plug |
|---|---|
| Shell size / insert arrangement | 21 / 29 |
| Contact quantity and size mix | 27 positions; 19×20, 4×16, 4×12 |
| Coupling | Triple-start threaded, self-locking |
| Contact / termination | B (socket insert); solder termination (-H supplier option) |
| Keying / option | N (normal keying) |
| Shell material and finish | Aluminum alloy; electroless nickel |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/26FG29BN-H?
The catalog lists shell 21, insert 29 and 27 positions with 19×20, 4×16, 4×12. Position count describes the insert; it does not prove supplied contact population. The supplier suffix -H specifies solder termination; supplied contacts are confirmed separately.
What mounting information matters for D38999/26FG29BN-H?
The listed configuration is a straight plug. Check coupling clearance, rear termination space and the complete mating-half drawing for shell 21; confirm any backshell interface with the selected accessory drawing.
How should a mating half be checked for D38999/26FG29BN-H?
Check MIL-DTL-38999 Series III, shell 21, insert 29 and keying N (normal keying). Compare complete controlled drawings and complementary contact configurations.
What should an RFQ for D38999/26FG29BN-H include?
Send D38999/26FG29BN-H, quantity, the mating-half code, mounting or harness drawing, contact supply and termination requirements, and required documents.
