MIL-DTL-38999 Series III · catalog configuration
D38999/26FA98PA

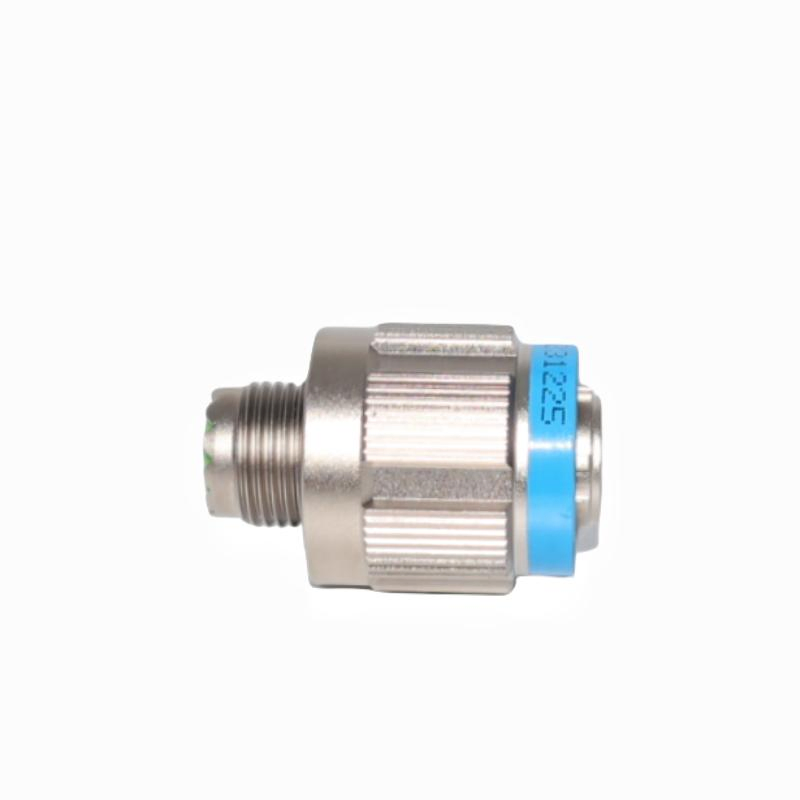

D38999/26FA98PA is a MIL-DTL-38999 Series III straight plug. The catalog configuration uses shell size A (09), insert arrangement 98, with 3 contact positions (3×20).
Product number D38999/26FA98PA
- Series
- Series III
- Shell / insert
- A (09) / 98
- Contact positions
- 3 positions; 3×20
- Material / finish
- Aluminum alloy; electroless nickel
Description
D38999/26FA98PA is a MIL-DTL-38999 Series III straight plug. The catalog configuration uses shell size A (09), insert arrangement 98, with 3 contact positions (3×20). The listed coupling is Triple-start threaded, self-locking; shell material and finish are Aluminum alloy; electroless nickel. Match the full configuration with the offered unit and controlled drawing.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Straight plug |
|---|---|
| Shell size / insert arrangement | A (09) / 98 |
| Contact quantity and size mix | 3 positions; 3×20 |
| Coupling | Triple-start threaded, self-locking |
| Contact / termination | P (crimp pin) |
| Keying / option | A |
| Shell material and finish | Aluminum alloy; electroless nickel |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/26FA98PA?
The catalog lists shell A (09), insert 98 and 3 positions with 3×20. Position count describes the insert; it does not prove supplied contact population.
What mounting information matters for D38999/26FA98PA?
The listed configuration is a straight plug. Check coupling clearance, rear termination space and the complete mating-half drawing for shell A (09); confirm any backshell interface with the selected accessory drawing.
How should a mating half be checked for D38999/26FA98PA?
Check MIL-DTL-38999 Series III, shell A (09), insert 98 and keying A. Compare complete controlled drawings and complementary contact configurations.
What should an RFQ for D38999/26FA98PA include?
Send D38999/26FA98PA, quantity, the mating-half code, mounting or harness drawing, contact supply and termination requirements, and required documents.
