MIL-DTL-38999 Series III · catalog configuration
D38999/20FD15PAB

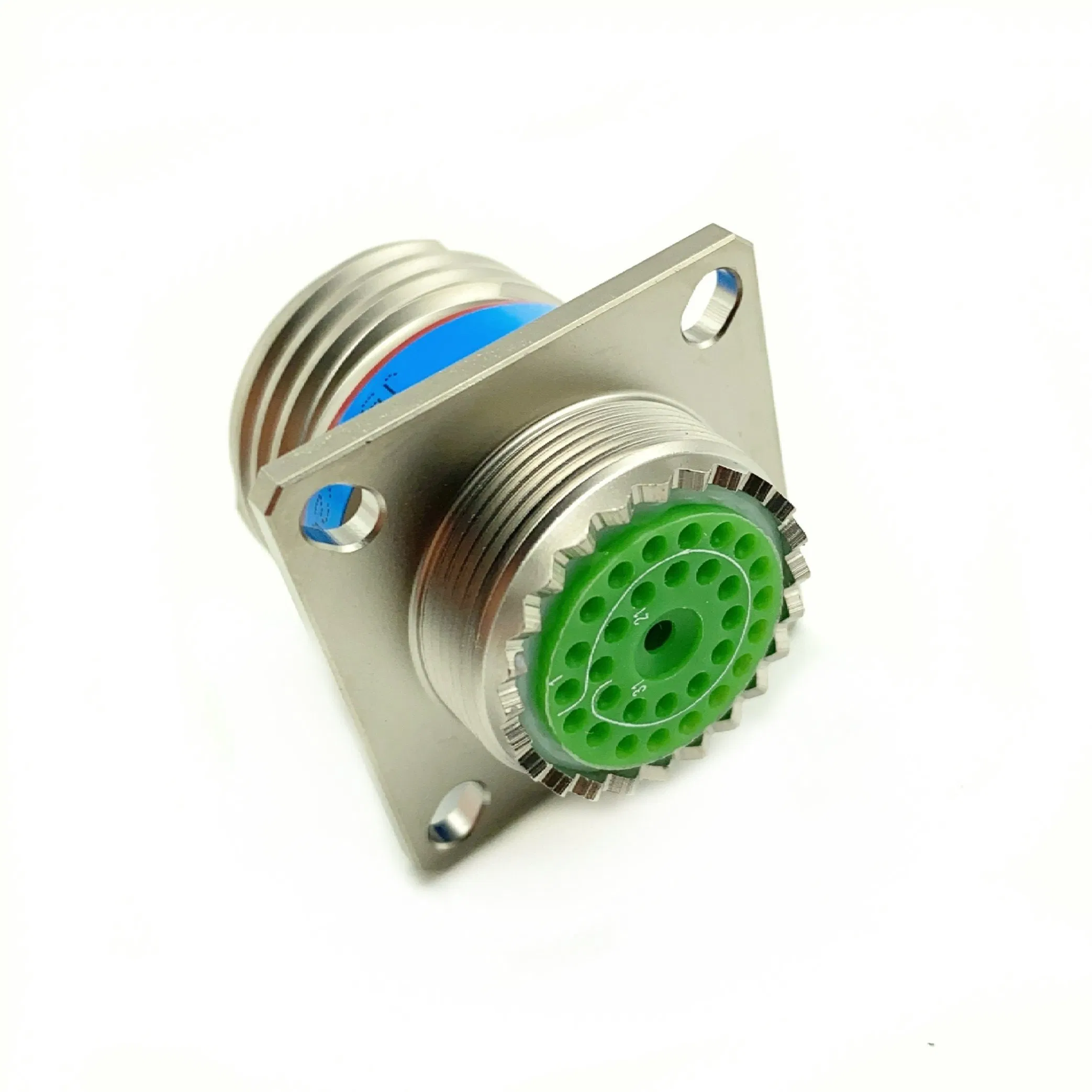

D38999/20FD15PAB is a supplier-listed Series III style square-flange receptacle configuration. Its catalog body uses shell15 and insert15, with fifteen positions (14×20 and1×16) and electroless-nickel aluminum. Retain the complete PAB supplier option when selecting the contact system and mating drawing.
Product number D38999/20FD15PAB
- Series
- Series III
- Shell / insert
- 15 / 15
- Contact positions
- 15 positions; 14×20, 1×16
- Material / finish
- Aluminum alloy; electroless nickel
Description
D38999/20FD15PAB is a supplier-listed Series III style square-flange receptacle configuration. Its catalog body uses shell15 and insert15, with fifteen positions (14×20 and1×16) and electroless-nickel aluminum. Retain the complete PAB supplier option when selecting the contact system and mating drawing.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | Series III style; square-flange receptacle |
|---|---|
| Shell size / insert arrangement | 15 / 15 |
| Contact quantity and size mix | 15 positions; 14×20, 1×16 |
| Coupling | Triple-start threaded |
| Contact / termination | PAB (complete supplier contact / keying code retained) |
| Shell material and finish | Aluminum alloy; electroless nickel |
| Complete manufacturer model | D38999/20FD15PAB |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which body configuration is listed for D38999/20FD15PAB?
The catalog body uses shell15 and insert15 with fifteen positions: fourteen size20 and one size16. Supplied contacts are selected with the offered assembly.
How should the mounting interface be selected for D38999/20FD15PAB?
This is a wall-mount receptacle in shell 15. Compare flange mounting, panel opening, seal placement and rear clearance against the controlled installation drawing.
How should the PAB option be specified for D38999/20FD15PAB?
Quote the complete PAB supplier code. Select contact system, termination and keying using the exact offered-unit and mating-half drawings.
What should an RFQ include for D38999/20FD15PAB?
Include D38999/20FD15PAB, quantity, mating-half model, panel drawing, supplied contacts and required configuration documents.
Similar Products
Compare adjacent catalog configurations and confirm mating, keying and rear interface by drawing.
D38999/20FD15PAB · RFQ
Send the exact drawing and mating requirement
Include the mating part, cable or panel details, quantity and documentation required for your project.
