D38999/26 Mating Connectors: D38999/20 vs D38999/24

A D38999/26 straight plug can be paired with an appropriate D38999/20 wall-mount receptacle or D38999/24 jam-nut receptacle. The choice between /20 and /24 concerns how the receptacle mounts to the equipment. The remaining part-number fields determine whether the proposed halves are a suitable mating configuration. [1]

For a D38999/26 mating connector inquiry, send the complete plug reference. “/26 plug, matching socket required” leaves the shell, insert, contact gender and keying unresolved.

Figure 1. Supplier-source Series III-style straight-plug photograph. It illustrates the cable-side form and socket face. The image is not evidence of a named manufacturer's identity, qualification or a complete matched pair.

/20 or /24: decide at the panel

Amphenol's Series III reference literature identifies /20 as a wall-mount receptacle, /24 as a jam-nut receptacle and /26 as a straight plug. [1] Begin the selection with the actual panel drawing.

The connector-side choice and the panel-side choice need to agree. A receptacle may be a mating candidate for the plug while still being unsuitable for the existing panel.

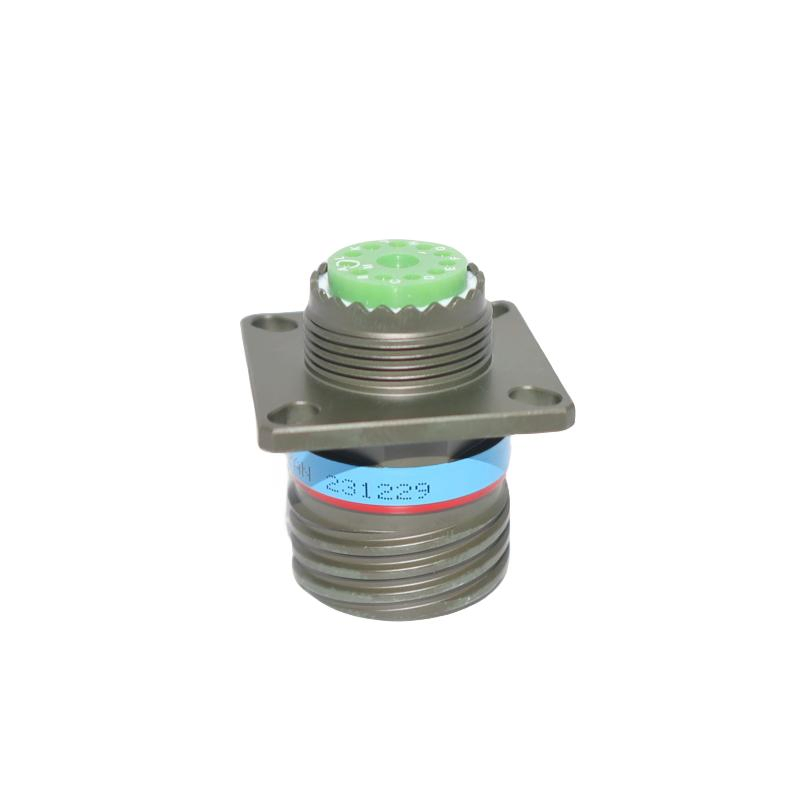

Wall-mount form: the flange and mounting holes are visible.

Jam-nut form: the retaining hardware is visible. Configuration examples, not dimensional drawings.

Figure 2. Supplier-source photographs used to compare mounting forms. These images are not at a common scale and do not establish the exact termination or complete ordering code of an offered item.

Read the full code before selecting the opposite half

Use this reference as a worked ordering example:

D38999/26WA35SN

The manufacturer's ordering guide supplies the code meanings. Its catalog identifies the 9-35 arrangement as six size-22D contacts. [2, 3] The arrangement number 35 is not the number of contacts.

Do not confuse the A shell-size code in this example with alternate uses of A in another field or product family. Preserve the whole reference when copying it into an inquiry.

Two candidate pairings—and one mismatch

For the example plug above, the following references illustrate the selection process:

These are catalog-code examples, not physically tested pairs, stock offers or approved substitutes. No fit test was performed for this article.

The same method applies when a drawing specifies a pin-contact plug: the receptacle needs the corresponding socket-contact configuration, alongside the other interface checks. Plug/receptacle describes the shell form; pin/socket describes the contacts. [2]

What can still go wrong after the codes look right?

A good quotation should separate four decisions.

Mating interface. Record series, shell, insert, contact gender and keying for both halves. A reference to “38999” without the series is insufficient; the manufacturer's reference guide distinguishes the interfaces of Series I, II and III. [2]

Installation. Compare panel thickness, cutout, access, connector projection and the space behind the panel. If the connector must pass through a tight opening, show that restriction in the inquiry.

Harness completion. State whether you need contacts, rear accessories, caps, seals or other items. Ask for an included-parts list. An assembly photograph can help, but the order should identify what is being purchased.

Purchase approval. State any manufacturer, qualification, traceability or program requirements. A connector that can be considered for a new ground-test fixture is not automatically an approved replacement in an existing airborne installation.

This separation makes it easier to see why a quotation is still pending. It also prevents an installation problem from being hidden behind the phrase “matching connector.”

Show the installed environment, not only the mating face

Figure 3. Archival avionics cable-installation scene, published in 2016. Credit: NASA/MSFC/Fred Deaton. Used as engineering context only; no connector series or part number is identified from the photograph. It is not a Tradin installation or endorsement.

For a panel-mounted connection, an overview can reveal the questions a close-up misses: rear access, cable routing and adjacent equipment. Include the local installation view or drawing with the two connector references.

For more detail on the surrounding hardware, see the complete MIL-DTL-38999 connector BOM guide.

Delivery-sensitive sourcing in the 2026 supply-chain environment

IATA's 7 June 2026 outlook discussed Middle East disruption and air-cargo constraints. [4] For connector procurement, the practical implication is to distinguish supplier dispatch date, transport assumptions and required arrival date. This is a planning recommendation—not a claim that D38999 demand or search interest has increased.

When a schedule is tight, request the complete pair and accessories together. Ask which configuration is actually available, which documents accompany it and what still requires confirmation.

Request a matched plug-and-receptacle quotation

Send both complete references, or the known plug number plus the equipment-interface drawing. Add quantity, required arrival date, delivery destination, cable details and whether original-only procurement or evaluated alternatives are acceptable.

Tradin Connect can review the requirement and prepare a project quotation for the proposed configuration and accessories.

Send your mating-pair requirement →

Explore the MIL-DTL-38999 connector range.
