A complete MIL-DTL-38999 connector BOM includes more than a plug and receptacle. Buyers should confirm the mating pair, contacts, rear accessories, shielding or sealing parts, protective caps and harness-protection materials before requesting a quote.

Conceptual component family showing the scope of a complete connector BOM; final parts require drawing review.

What belongs in a complete D38999 connector BOM?

The minimum practical BOM starts with the two mating connector halves, but the correct commercial package depends on the complete assembly. A connector can be dimensionally correct and still be unusable if the contact type, insert arrangement, keying, backshell interface or cable-entry range does not match the harness.

Connector halves: plug and receptacle styles selected from the complete approved designations.

Contacts and sealing items: pin or socket contacts, wire-range compatibility, cavity sealing and insertion/removal tooling as applicable.

Rear accessories: straight, 45-degree or 90-degree backshells, adapters, strain relief, shield termination and cable clamps.

Interface protection: plug-side or receptacle-side protective caps with the correct coupling interface and retention method.

Harness transition: molded boots, adhesive, tubing, braid or abrasion protection selected for the cable bundle and environment.

Documentation: supplier drawings, material and finish details, inspection expectations and any required qualification evidence.

A useful RFQ describes the entire connector-to-cable transition. A connector part number by itself rarely defines the finished harness assembly.

Start with the complete original designation

Do not shorten a military or manufacturer part number when requesting a cross-reference. Individual code positions may define shell style, shell size, insert arrangement, contact type, keying, service class or finish. A missing character can change the mating interface or performance requirement.

Send the complete part number exactly as shown on the drawing, label or procurement record.

Identify whether the requirement is an original product, a compatible alternative for evaluation or a custom drawing-based item.

Provide the mating connector designation when available.

Add cable outside diameter, conductor sizes, shielding construction and exit-direction constraints.

State the required documents, testing or approval path instead of assuming every compatible option carries the same qualification.

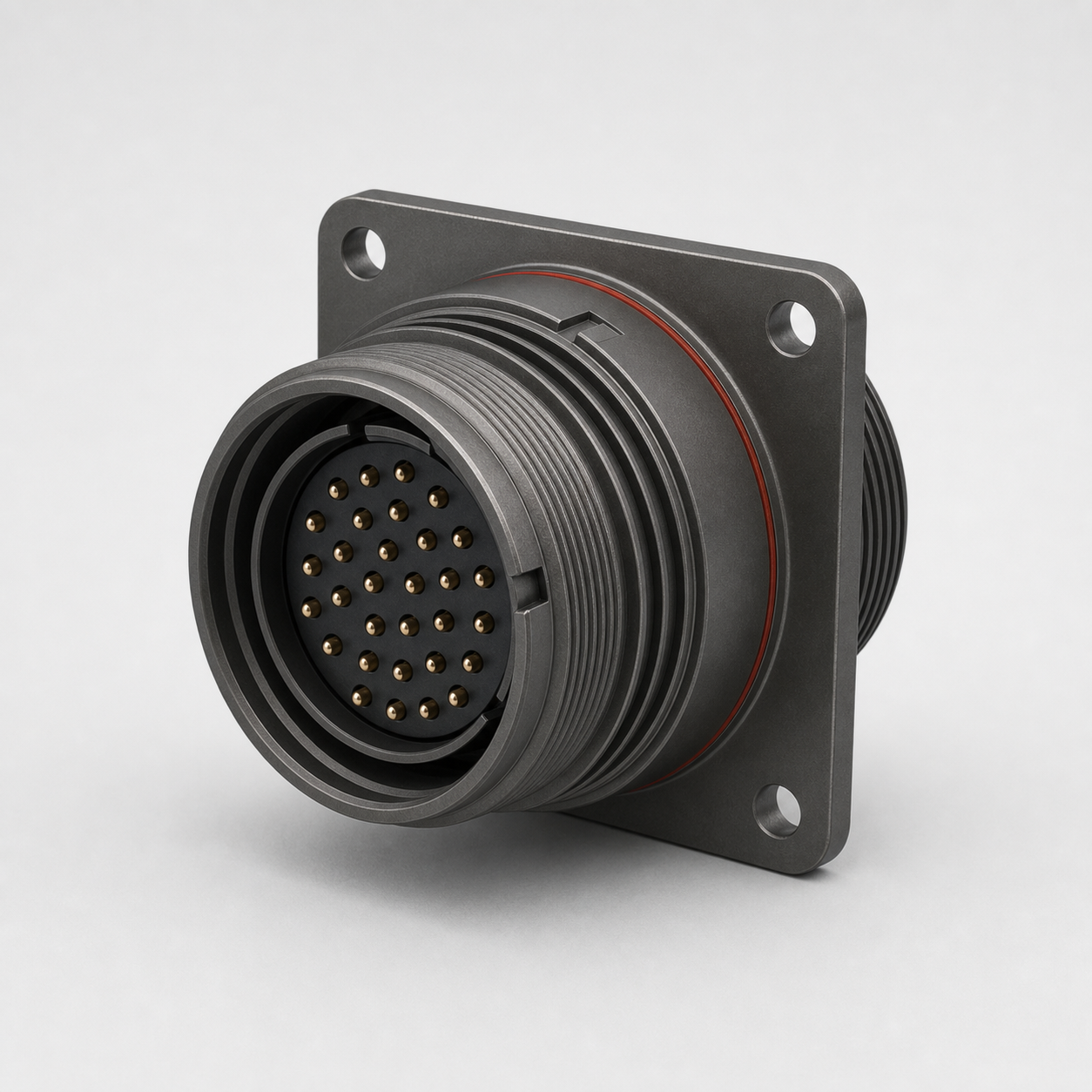

Generic Series III style wall-mount receptacle sourcing illustration; not a specific QPL or original-brand product.

Match the backshell to both connector and cable

Backshell selection bridges two different interfaces. The front of the backshell must match the connector rear interface, while the cable side must fit the finished bundle and support the required strain relief, shielding and bend geometry. Selecting only from connector shell size can miss cable-entry and installation constraints.

Prevent three common procurement gaps

Unspecified contacts: the connector body arrives, but the contacts do not match the conductor or termination process.

Missing rear accessories: procurement receives a connector pair without the backshell, clamp, boot or shield-termination hardware needed for assembly.

Unverified alternatives: a form-and-fit option is treated as automatically identical in materials, testing, qualification or service life.

Frequently asked questions

Can one supplier quote the connector and all rear accessories?

Yes, when the supplier receives enough interface and cable information. A consolidated BOM can reduce missing components and simplify technical communication, but each line still needs drawing and requirement review.

Does a compatible alternative have the same qualification?

Not automatically. Compatibility describes a documented fit or functional objective. Qualification, QPL status, materials, finish and performance evidence must be confirmed independently for the selected source.

What should be included with an RFQ?

Send the complete connector and backshell part numbers, drawings, mating details, cable construction, required documents, quantity and application constraints. Photos can help identification but should not replace the governing drawing.

Request a complete BOM review

Send Tradin Connect the complete connector or backshell part number, drawing, photo, cable details or BOM. The team can review a connector, contacts, rear accessories and protection-material package for quotation and sample validation.
