MS27473T10F35PN 13-Contact Straight Plug

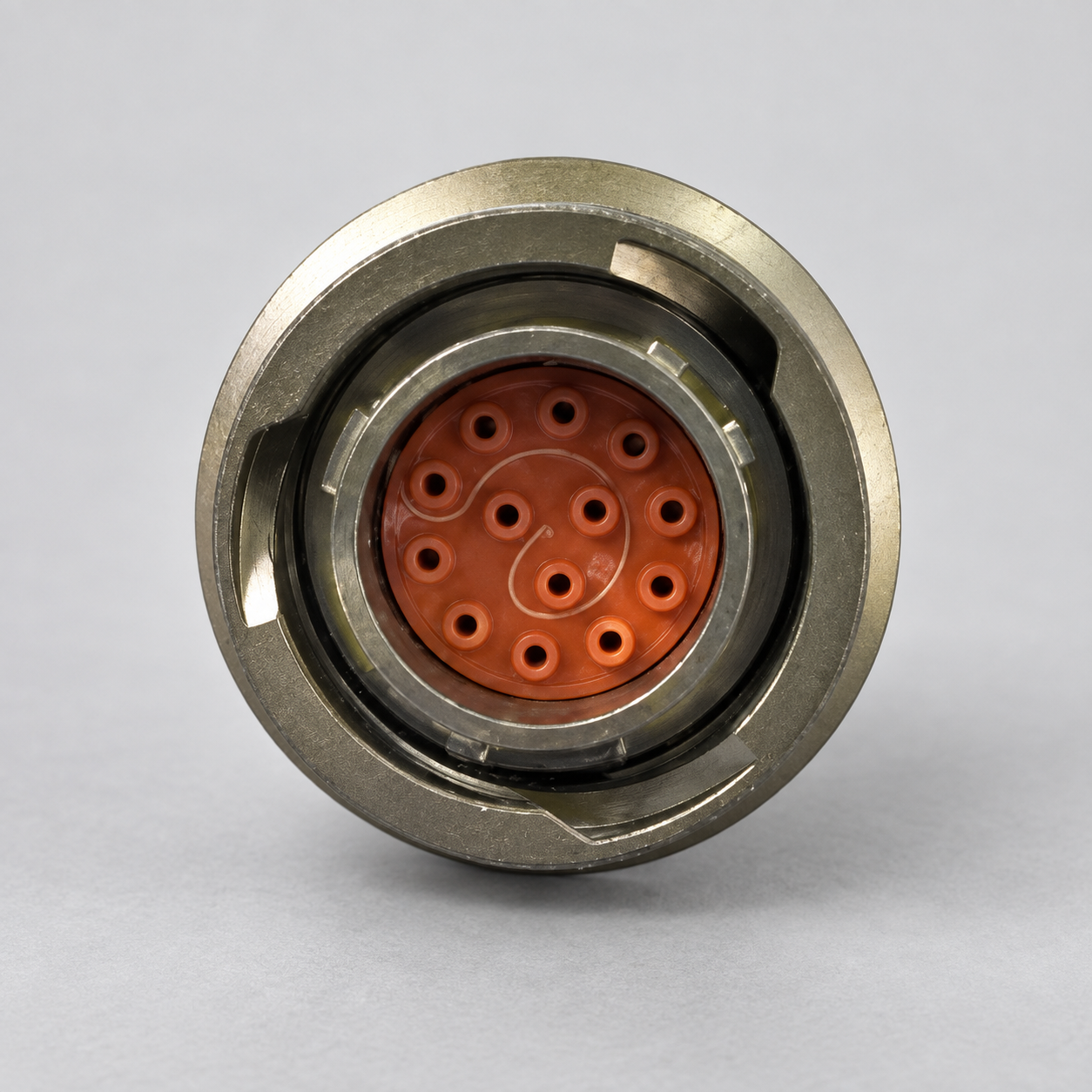

MS27473T10F35PN is a Series II straight-plug ordering reference with a shell 10, 10-35 insert, 13 size-22D positions and a Class F finish code. Confirm the supplied configuration against its controlled drawing.
Product number MS27473T10F35PN
- Series
- MIL-DTL-38999 II
- Shell / insert
- 10 / 10-35
- Contacts
- 13 × size 22D
- Finish code
- F · electroless nickel
Description
The MS27473 straight-plug family uses bayonet coupling. In the cited Tradin Connect catalog, T identifies the accessory-threaded rear, 10 the shell size, F electroless nickel finish, 35 the insert arrangement, P crimp pin contacts and N normal keying. The standard 10-35 insert has 13 size-22D positions. This code breakdown describes catalog configuration; the offered assembly, photo and any qualification documents require separate matching.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, key position and bayonet interface.
- Check contact termination, finish, cable exit and rear accessory.
- Request any required qualification or test documents for the offered unit.
Technical Data
Ordering-code and insert values: Tradin Connect MIL-DTL-38999 catalog, Series II pp. 27–29 and insert index pp. 104–105. Performance values are catalog class or family test figures; they do not certify the offered unit.
| Ordering reference | MS27473T10F35PN |
|---|---|
| Series and shell style | MIL-DTL-38999 Series II; straight plug |
| Coupling / rear code | Bayonet; T threaded rear for accessory mounting |
| Shell size / insert | 10 / 10-35 |
| Insert contact positions | 13 × size 22D |
| Contact code / keying | P crimp pin / N normal keying |
| Finish code | F; electroless nickel on aluminum alloy |
| Accessory thread reference | 0.5625-24 UNEF-2A (catalog shell drawing) |
| 22D catalog contact rating | 5 A per contact; resistance ≤12 mΩ |
| Insert service rating | M; dielectric 1300 V sea level / 800 V at 21 km (catalog test) |
| Class F catalog temperature | −65 to +200 °C |
| Class F catalog salt spray | 48 h |
| Family mating life | ≥500 cycles (catalog family test) |
Applications
These are sourcing contexts for this catalog configuration. Final suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
What does MS27473T10F35PN identify?
The cited Series II ordering guide identifies a straight plug, shell 10, 10-35 insert, Class F finish, crimp pin code P and normal-key code N.
How many contacts does the 10-35 insert have?
The catalog insert table gives 13 size-22D positions for Series II 10-35. The actual supplied connector must be checked against its drawing.
What mating details should be checked?
Check the mating receptacle, bayonet interface, key position, insert face, accessory thread and cable assembly before selecting a replacement.
Does this listing claim QPL qualification or unit test results?
No. Request the supplier's controlled drawing and any required qualification or test documents for the offered part.
Similar Products
Compare related connector styles and confirm the mating interface by drawing before substitution.
MIL-DTL-38999 Connectors
MS27484T08B35P 6-Contact Grounding Plug
MS27484T08B35P

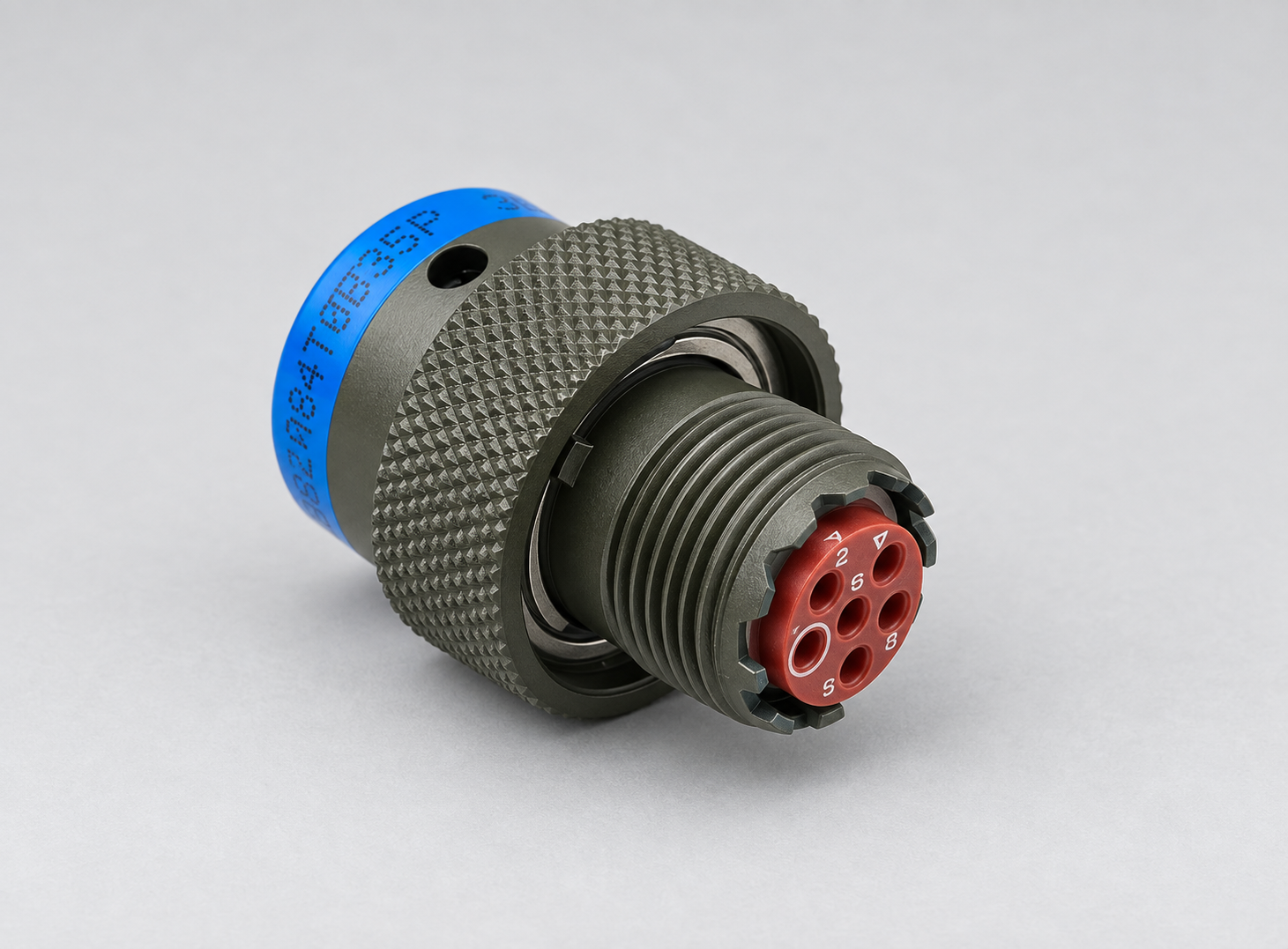

MS27484T08B35P is a Series II straight-plug ordering reference with grounding fingers, a shell 08, 08-35 insert, six size-22D positions and a Class B finish code. Confirm its key position and supplied configuration by drawing.
