M85049/A18-13N

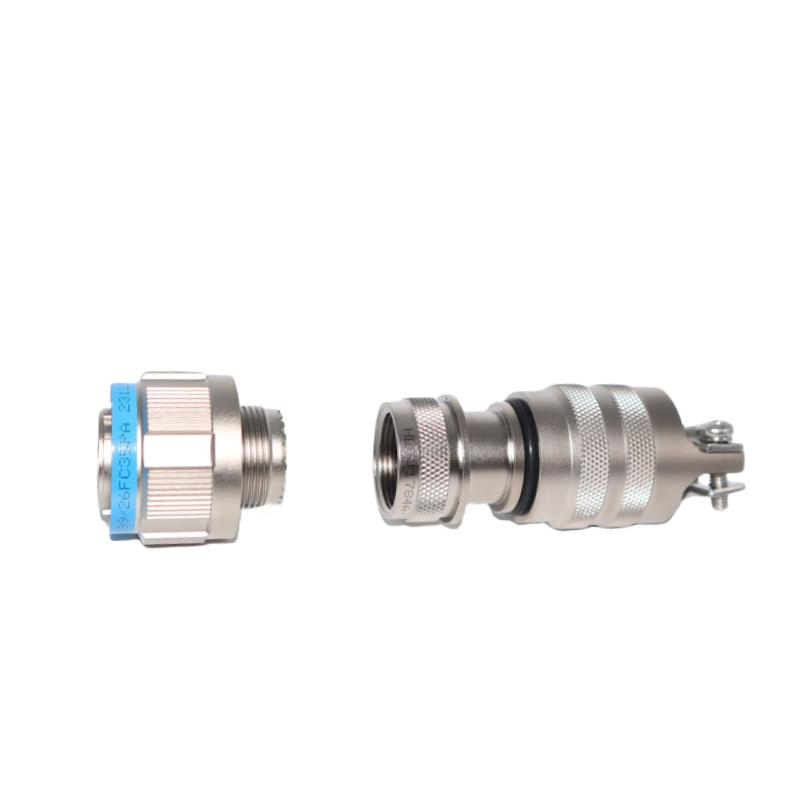

M85049/A18-13N is a supplier-designated straight backshell with cable clamp. Donconn lists it with the shell13 D38999/26FC35PA plug; the complete accessory code retains A18, shell13 and finishN.
Product number M85049/A18-13N
- Category
- Straight backshell + clamp
- Accessory shell
- 13
- Supplier designation
- A18
- Finish
- N; nickel finish
Description
M85049/A18-13N is a supplier-designated straight backshell with cable clamp. Donconn lists it with the shell13 D38999/26FC35PA plug; the complete accessory code retains A18, shell13 and finishN. Match the connector rear interface, cable fit, shielding and sealing requirements using the full supplier accessory drawing.
Configuration checklist
- Match the full cable clamp ordering code to the supplied drawing.
- Confirm the connector rear interface, cable fit and locking option.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
The table identifies the catalog ordering configuration. Use the controlled accessory drawing to confirm the connector rear interface, cable fit and mounting clearance.
| Accessory type | Straight backshell with cable clamp (supplier A18 designation) |
|---|---|
| Accessory shell size | 13 (supplier designation and paired shell13 connector) |
| Finish code | N; nickel finish |
| Supplier product designation | M85049/A18-13N |
| Supplier-listed paired connector | D38999/26FC35PA |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which accessory type is listed for M85049/A18-13N?
The supplier lists a straight backshell with cable clamp, paired with the D38999/26FC35PA plug. Use the exact accessory drawing to confirm the rear interface and cable fit.
How should the A18 designation in M85049/A18-13N be used?
Keep the complete supplier A18 designation in the RFQ. Confirm construction, cable sealing and any required EMI/RFI or environmental evidence against the exact supplied accessory drawing.
Which shell and finish code are listed for M85049/A18-13N?
The complete supplier designation uses shell13 and finishN. The paired supplier product listing specifies nickel finish; dimensions and accessory threads are confirmed by drawing.
What should an RFQ for M85049/A18-13N include?
Include M85049/A18-13N, connector part number, cable outside diameter, shielding and sealing requirements, quantity, installation drawing and required documents.
