M85049/38-15N

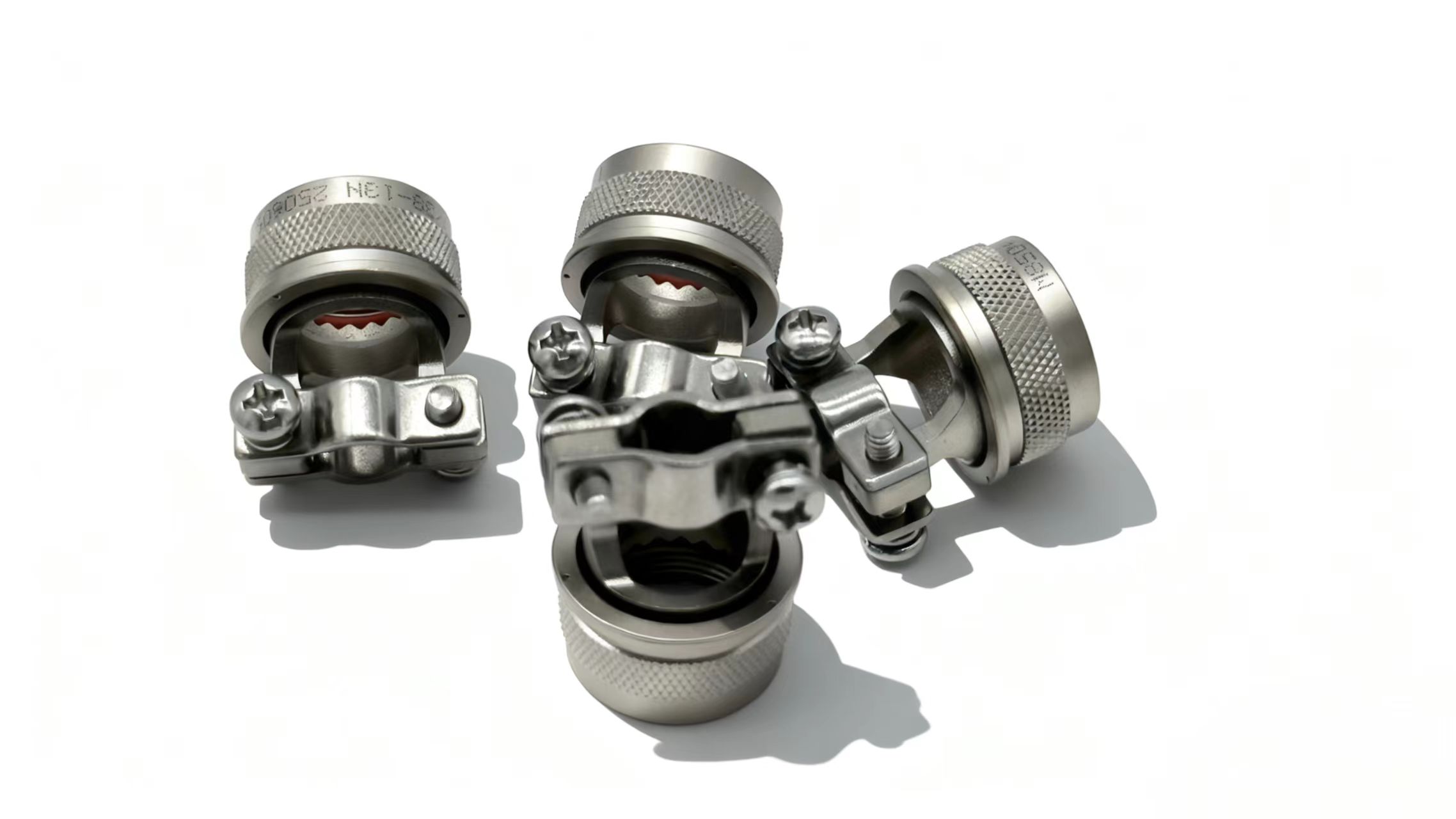

M85049/38-15N is a non-self-locking straight strain-relief cable clamp with accessory shell size 15 and aluminum/electroless nickel finish N.
Product number M85049/38-15N
- Category
- Straight cable clamp
- Accessory shell
- 15
- Locking
- Non-self-locking
- Finish
- N
Description
M85049/38-15N is a non-self-locking straight strain-relief cable clamp with accessory shell size 15 and aluminum/electroless nickel finish N. The /38 family is cataloged for rear accessory interfaces of MIL-DTL-38999 Series III and IV connectors. Confirm the full accessory code, connector rear interface and cable accommodation against the controlled assembly drawing.
Configuration checklist
- Match the full cable clamp ordering code to the supplied drawing.
- Confirm the connector rear interface, cable fit and locking option.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
The table identifies the catalog ordering configuration. Use the controlled accessory drawing to confirm the connector rear interface, cable fit and mounting clearance.
| Accessory category | Straight strain-relief cable clamp |
|---|---|
| Accessory shell size | 15 |
| Locking option | Non-self-locking (dash ordering option) |
| Material and finish | Aluminum; electroless nickel |
| Finish code | N |
| Catalog connector family | MIL-DTL-38999 Series III and IV |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
What accessory is M85049/38-15N?
The /38 family is a straight strain-relief cable clamp. It is a rear accessory rather than an electrical connector insert or contact assembly.
Which ordering fields identify M85049/38-15N?
The code specifies the /38 family, a dash for the non-self-locking option, accessory shell size 15 and N for aluminum with electroless nickel finish.
Which connector family should be checked for M85049/38-15N?
The manufacturer catalog identifies MIL-DTL-38999 Series III and IV rear accessory interfaces. Confirm the exact connector rear interface and cable accommodation with the controlled assembly drawing.
What should an RFQ for M85049/38-15N include?
Send the exact accessory part number, connector rear-interface drawing, cable outside diameter, quantity and required supplied-item documents. Check cable fit and mounting clearance before order confirmation.
