M85049/19 Backshells · catalog configuration
M85049/1915W04
M85049/1915W04 is a straight EMI/RFI non-environmental backshell configuration with accessory shell size 15, olive drab cadmium finish W and clamp size 04.
Product number M85049/1915W04
- Category
- Straight backshell
- Accessory shell
- 15
- Clamp size
- 04
- Finish
- W; olive drab cadmium
Description
M85049/1915W04 is a straight EMI/RFI non-environmental backshell configuration with accessory shell size 15, olive drab cadmium finish W and clamp size 04. The /19 family is cataloged for MIL-DTL-38999 Series III and IV rear accessories. Match the connector rear interface, cable outside diameter and shielding arrangement against the controlled assembly drawing.
Configuration checklist
- Match the full backshell ordering code to the supplied drawing.
- Confirm the connector rear interface, shielding termination and clamp configuration.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering fields and cable accommodation are catalog references. Confirm the actual accessory, cable fit and shielding requirements using the complete assembly drawing. Confirm the exact configuration and required evidence against its controlled drawing.
| Accessory category | Straight EMI/RFI non-environmental backshell |
|---|---|
| Accessory shell size | 15 |
| Clamp size | 04 |
| Finish code | W; olive drab cadmium |
| Catalog connector family | MIL-DTL-38999 Series III and IV |
| Length option | Standard (no additional length suffix) |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
What accessory category is M85049/1915W04?
The /19 family is a straight EMI/RFI non-environmental backshell. This rear connector accessory has no electrical insert or connector contacts.
Which ordering configuration identifies M85049/1915W04?
The ordering code specifies accessory shell size 15, finish W (olive drab cadmium) and clamp size 04. No additional length suffix means the standard catalog length option; use the supplied-item drawing for inspection dimensions.
How should the photograph be used when ordering M85049/1915W04?

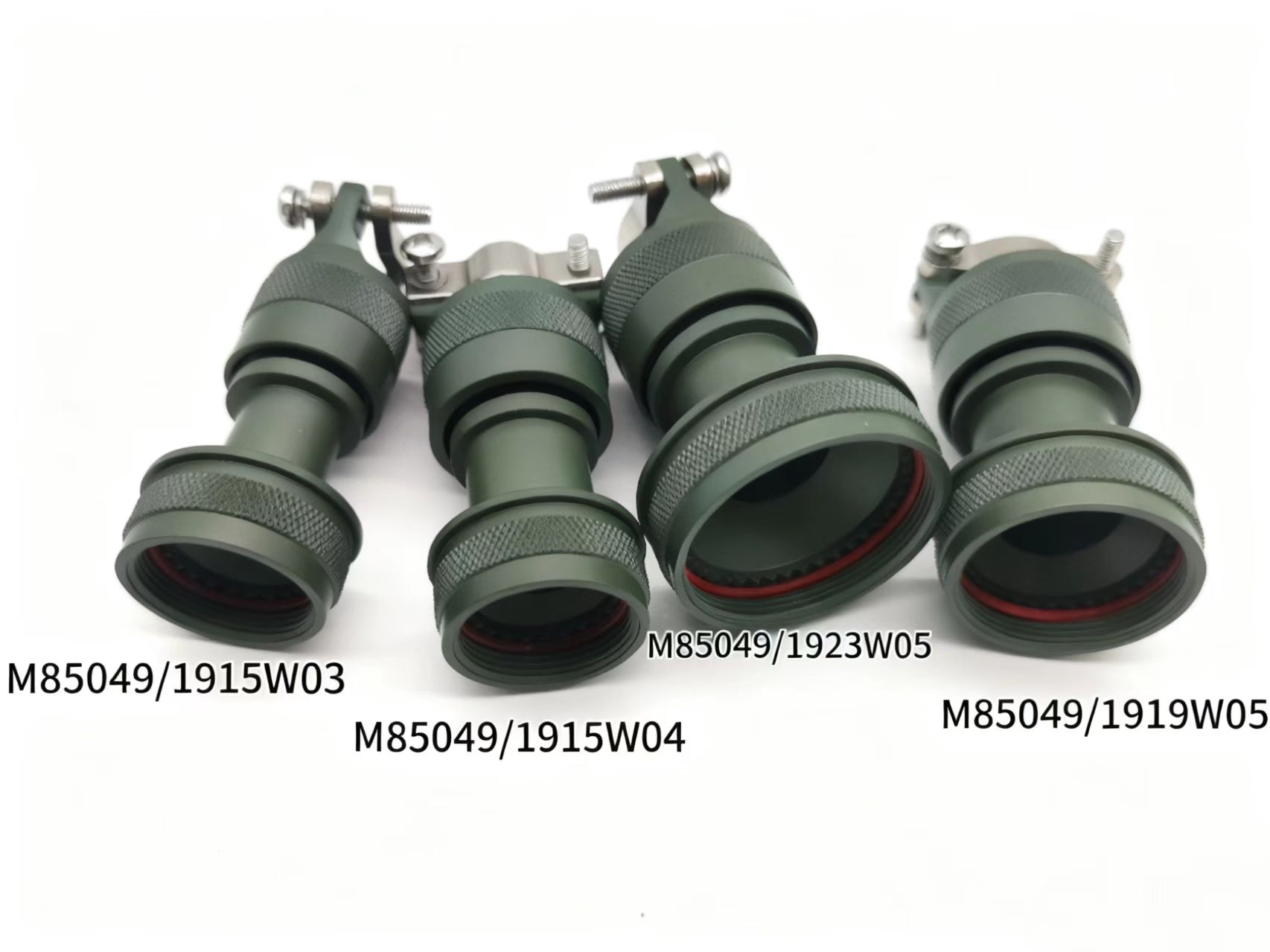

The supplier photograph labels four /19 variants separately, including M85049/1915W04. Quote this exact code; the other pictured variants are separate configurations and are not implied to be included in the order.
What should an RFQ for M85049/1915W04 include?
Send the full part number, connector rear-interface drawing, cable outside diameter, shielding arrangement, quantity and required supplied-item documents. Confirm the connector and backshell interface together.
Similar Products
Review related accessory families and verify the exact connector interface and cable requirements by drawing.
Connector Accessories
M85049 Compatible Straight Backshell for D38999 Connectors
Review the exact connector rear interface, cable build and controlled accessory drawing.
Connector Accessories
M85049 Compatible 90-Degree Backshell for D38999 Connectors
Review the exact connector rear interface, cable build and controlled accessory drawing.
Connector Accessories
EMI Shielded Backshell for MIL-SPEC Circular Connectors
Review the exact connector rear interface, cable build and controlled accessory drawing.
M85049/1915W04 · RFQ
Send the exact accessory drawing and cable requirement
Include the connector rear interface, cable outside diameter, shielding details, quantity and required documents.
