M85049/19 Backshells · catalog configuration
M85049/1915W03

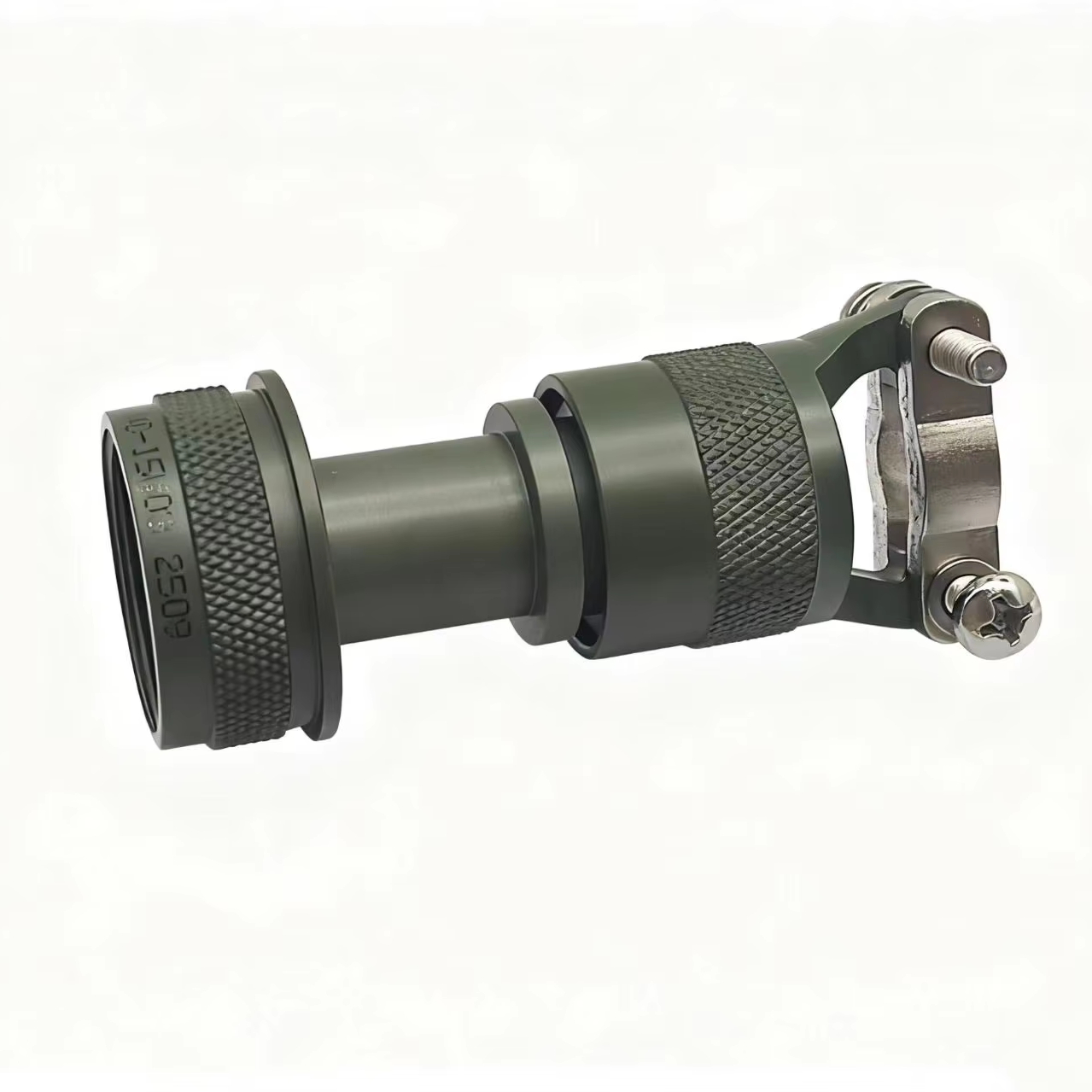

M85049/1915W03 is a straight EMI/RFI non-environmental backshell catalog configuration. The ordering code specifies accessory shell size 15, olive drab cadmium finish W and clamp size 03.
Product number M85049/1915W03
- Category
- Straight backshell
- Accessory shell
- 15
- Clamp / cable range
- 03 / 6.4–9.5 mm
- Finish
- W; olive drab cadmium
Description
M85049/1915W03 is a straight EMI/RFI non-environmental backshell catalog configuration. The ordering code specifies accessory shell size 15, olive drab cadmium finish W and clamp size 03. The family is cataloged for MIL-DTL-38999 Series III and IV rear accessories. Review the connector interface and shielding termination using the complete assembly drawing. This accessory does not contain an electrical insert.
Configuration checklist
- Match the full backshell ordering code to the supplied drawing.
- Confirm the connector rear interface, shielding termination and clamp configuration.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering fields and cable accommodation are catalog references. Confirm the actual accessory, cable fit and shielding requirements using the complete assembly drawing. Confirm the exact configuration and required evidence against its controlled drawing.
| Accessory category | Straight EMI/RFI non-environmental backshell |
|---|---|
| Accessory shell size | 15 |
| Clamp size | 03 |
| Finish code | W; olive drab cadmium |
| Body material | Aluminum alloy (supplier catalog) |
| Catalog cable accommodation | 6.4–9.5 mm |
| Catalog connector family | MIL-DTL-38999 Series III and IV |
| Length option | Standard (no additional length suffix) |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
What accessory category is M85049/1915W03?
The /19 family is a straight EMI/RFI non-environmental backshell. It is a rear connector accessory, with no electrical insert or included connector contacts.
Which shell and cable configuration is listed for M85049/1915W03?
The catalog ordering code specifies accessory shell size 15 and clamp size 03. The listed clamp accommodation range is 6.4–9.5 mm; confirm the actual cable build and supplied-item drawing.
Does M85049/1915W03 provide environmental sealing?
The /19 category is non-environmental. Confirm shielding, strain relief and any separate sealing requirement against the assembly drawing; do not assume a sealing rating from this part number.
What should an RFQ for M85049/1915W03 include?
Send the full part number, connector rear-interface drawing, cable outside diameter, shielding arrangement, quantity and required supplied-item documents. Confirm the connector and backshell interface together.
