MIL-DTL-38999 Series I · catalog configuration
MS27656E17F35PNH

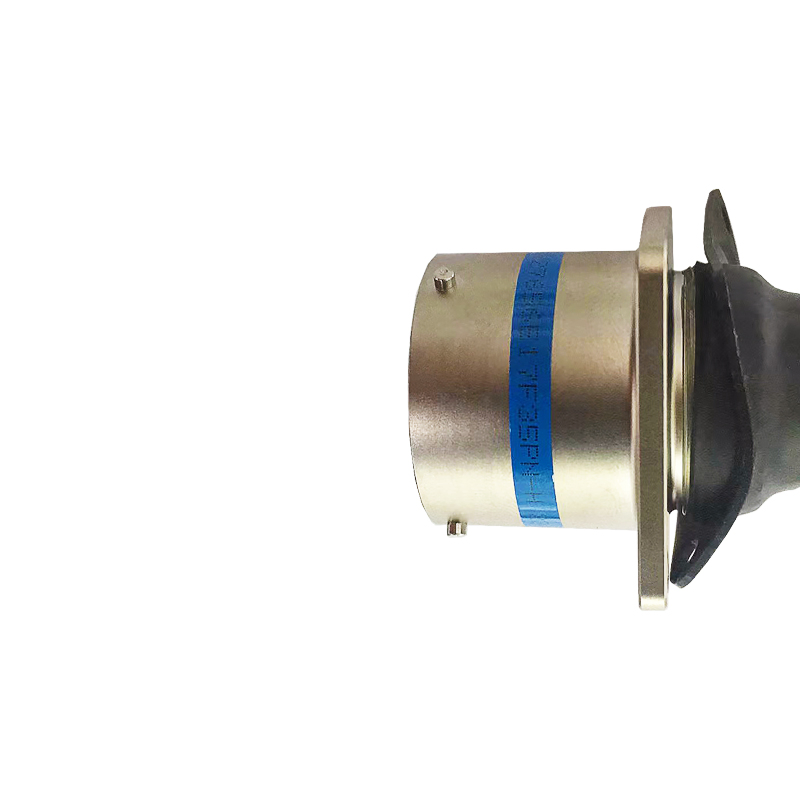

MS27656E17F35PNH is a MIL-DTL-38999 Series I rear wall-mount receptacle. The catalog configuration uses shell 17, insert 35, with 55 contact positions (55×22D).
Product number MS27656E17F35PNH
- Series
- Series I
- Shell / insert
- 17 / 35
- Contact positions
- 55 positions; 55×22D
- Material / finish
- Aluminum alloy; electroless nickel
Description
MS27656E17F35PNH is a MIL-DTL-38999 Series I rear wall-mount receptacle. The catalog configuration uses shell 17, insert 35, with 55 contact positions (55×22D). The listed contact configuration is P (solder pin; supplier full-model listing); keying is N. Shell material and finish: Aluminum alloy; electroless nickel. Keep the complete product number when requesting the offered-unit drawing and contact supply details.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series I; Rear wall-mount receptacle |
|---|---|
| Shell size / insert arrangement | 17 / 35 |
| Contact quantity and size mix | 55 positions; 55×22D |
| Coupling | Bayonet |
| Contact / termination | P (solder pin; supplier full-model listing) |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; electroless nickel |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which insert configuration is listed for MS27656E17F35PNH?
The catalog lists shell 17, insert 35, with 55 positions (55×22D). Confirm supplied contact population with the offered-unit drawing.
What installation information matters for MS27656E17F35PNH?
This is a rear wall-mount receptacle in shell 17. Compare flange mounting, panel opening, seal placement and rear clearance against the controlled installation drawing.
What contact and keying configuration is listed for MS27656E17F35PNH?
The listed contact configuration is P (solder pin; supplier full-model listing); keying is N. Compare the complete mating-half code and drawings.
What should an RFQ for MS27656E17F35PNH include?
Send the complete MS27656E17F35PNH product number, quantity, mating-half code, installation drawing, required supplied contacts and documents.
