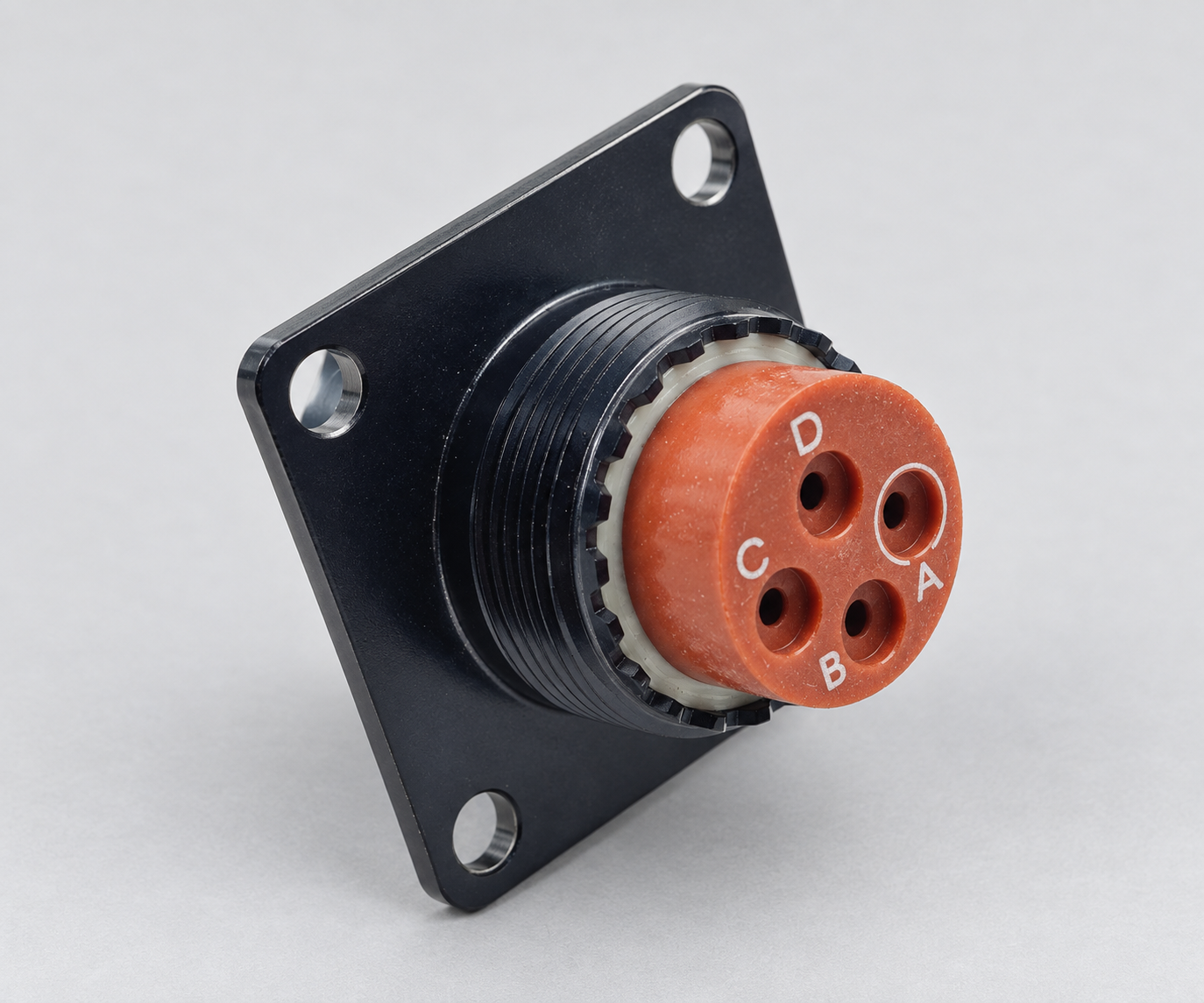

Reference view of the listed series, shell style and finish. Confirm contact population and supplied configuration by drawing.
MIL-DTL-38999 Series II · catalog configuration
MS27513E12C04SN
MS27513E12C04SN is a MIL-DTL-38999 Series II box-mount receptacle with grommet. The catalog configuration uses shell size 12, insert arrangement 04, with 4 contact positions (4×16).
Product number MS27513E12C04SN
- Series
- Series II
- Shell / insert
- 12 / 04
- Contact positions
- 4 positions (4×16)
- Material / finish
- Anodized aluminum alloy
Description
MS27513E12C04SN is a MIL-DTL-38999 Series II box-mount receptacle with grommet. The catalog configuration uses shell size 12, insert arrangement 04, with 4 contact positions (4×16). The catalog lists Bayonet coupling and Anodized aluminum alloy. Select this reference with the full contact and keying code, panel or harness drawing, and intended mating half. Catalog configuration: S (crimp socket) contacts; keying N. Contact positions do not establish the contact population supplied with an order.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series II; Box-mount receptacle with grommet |
|---|---|
| Shell size / insert arrangement | 12 / 04 |
| Contact quantity and size mix | 4 positions (4×16) |
| Coupling | Bayonet |
| Ordering-code service / finish suffix | E rear / C finish |
| Contact type / termination | S (crimp socket) |
| Keying / option | N |
| Shell material and finish | Anodized aluminum alloy |
| Insert service rating | I |
| Catalog withstand voltage at sea level | 1800 V |
| Catalog withstand voltage at 21 km | 1000 V |
| Catalog current rating by contact size | 16: 13 A/contact |
| Catalog contact resistance by size | 16: ≤2.5 mΩ |
| Family catalog mating life | ≥500 mating cycles (family catalog) |
| Family catalog insulation resistance | ≥5000 MΩ normal; ≥100 MΩ humid (family, Tradin Connect catalog pp.5/28) |
| Family catalog EMI shielding | ≥45 dB (100 MHz–1 GHz) (family, Tradin Connect catalog pp.5/28) |
| Catalog accessory thread | 0.6875-24 |
| Catalog drawing reference | Tradin Connect 2025 catalog pp.34-36 |
| Catalog source | Tradin Connect 2025 catalog pp.27-29,104-105 | Souriau p.14; Amphenol 38999 catalog insert chart |
| Data boundary | Catalog configuration; confirm the offered item and required qualification documents against its controlled drawing. |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for MS27513E12C04SN?
The cited catalog lists shell 12, insert 04, 4 contact positions with 4×16. Use the full ordering reference when checking the supplied configuration.
What mounting information matters for MS27513E12C04SN?
The listed shell style is box-mount receptacle with grommet. The catalog drawing reference is Tradin Connect 2025 catalog pp.34-36; compare its installation dimensions and rear interface 0.6875-24 with the equipment drawing.
How should a mating half be checked for MS27513E12C04SN?
Check the same MIL-DTL-38999 Series II, shell 12, insert 04 and keying N, with complementary contact gender. Verify the two complete drawings; matching a family name does not establish interchangeability.
What should an RFQ for MS27513E12C04SN include?
Send MS27513E12C04SN, quantity, mating-half reference, mounting or harness drawing, contact/termination requirements and required documents. State any configuration changes separately from the base ordering code.
