MS27497T8B35SA

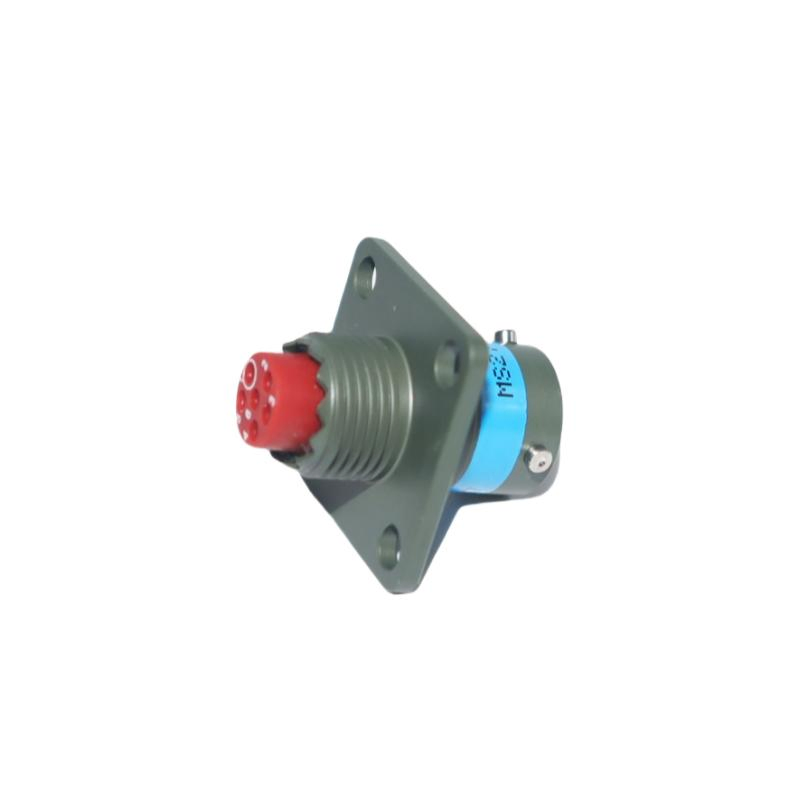

MS27497T8B35SA is a MIL-DTL-38999 Series II rear wall-mount receptacle. The catalog configuration uses shell size 08, insert arrangement 35, with 6 contact positions (6×22D).
Product number MS27497T8B35SA
- Series
- Series II
- Shell / insert
- 08 / 35
- Contact positions
- 6 positions; 6×22D
- Material / finish
- Aluminum alloy; olive drab cadmium over nickel base
Description
MS27497T8B35SA is a MIL-DTL-38999 Series II rear wall-mount receptacle. The catalog configuration uses shell size 08, insert arrangement 35, with 6 contact positions (6×22D). The listed coupling is Bayonet; shell material and finish are Aluminum alloy; olive drab cadmium over nickel base. Match the full configuration with the offered unit and controlled drawing.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series II; Rear wall-mount receptacle |
|---|---|
| Shell size / insert arrangement | 08 / 35 |
| Contact quantity and size mix | 6 positions; 6×22D |
| Coupling | Bayonet |
| Contact / termination | S (crimp socket) |
| Keying / option | A |
| Shell material and finish | Aluminum alloy; olive drab cadmium over nickel base |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for MS27497T8B35SA?
The catalog lists shell 08, insert 35 and 6 positions with 6×22D. Position count describes the insert; it does not prove supplied contact population.
What mounting information matters for MS27497T8B35SA?
This is a wall-mount receptacle in shell 08. Compare flange mounting, panel opening, seal placement and rear clearance against the controlled installation drawing.
How should a mating half be checked for MS27497T8B35SA?
Check MIL-DTL-38999 Series II, shell 08, insert 35 and keying A. Compare complete controlled drawings and complementary contact configurations.
What should an RFQ for MS27497T8B35SA include?
Send MS27497T8B35SA, quantity, the mating-half code, mounting or harness drawing, contact supply and termination requirements, and required documents.
