MIL-DTL-38999 Series II · catalog configuration
MS27484T8B35S

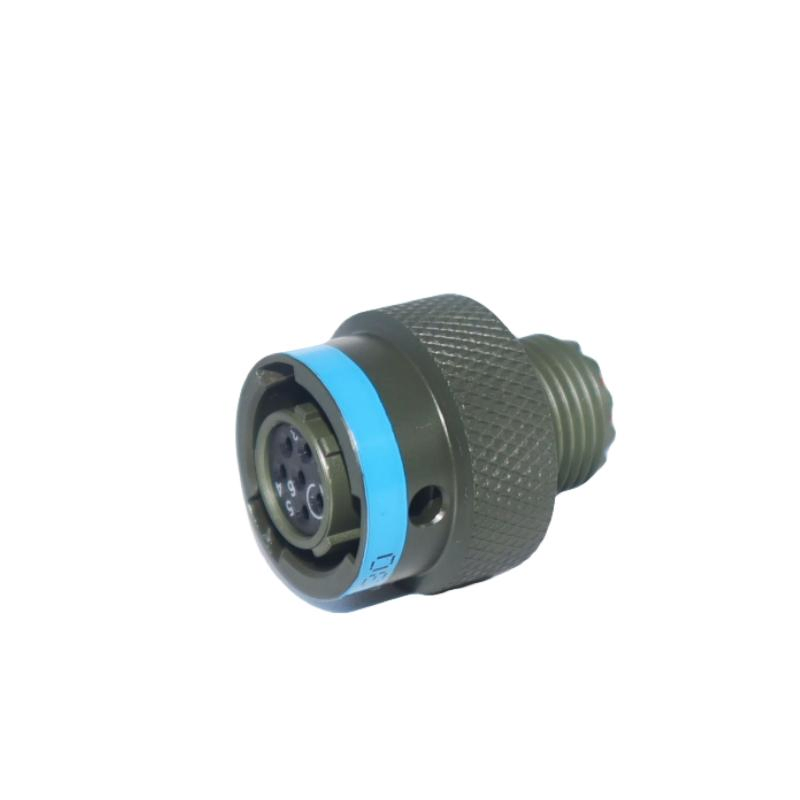

MS27484T8B35S is a MIL-DTL-38999 Series II straight plug with grounding fingers. The catalog configuration uses shell size 08, insert arrangement 35, with 6 contact positions (6×22D).
Product number MS27484T8B35S
- Series
- Series II
- Shell / insert
- 08 / 35
- Contact positions
- 6 positions; 6×22D
- Material / finish
- Aluminum alloy; olive drab cadmium over nickel base
Description
MS27484T8B35S is a MIL-DTL-38999 Series II straight plug with grounding fingers. The catalog configuration uses shell size 08, insert arrangement 35, with 6 contact positions (6×22D). The listed coupling is Bayonet; shell material and finish are Aluminum alloy; olive drab cadmium over nickel base. Match the full configuration with the offered unit and controlled drawing.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series II; Straight plug with grounding fingers |
|---|---|
| Shell size / insert arrangement | 08 / 35 |
| Contact quantity and size mix | 6 positions; 6×22D |
| Coupling | Bayonet |
| Contact / termination | S (crimp socket) |
| Keying / option | Normal (no suffix) |
| Shell material and finish | Aluminum alloy; olive drab cadmium over nickel base |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for MS27484T8B35S?
The catalog lists shell 08, insert 35 and 6 positions with 6×22D. Position count describes the insert; it does not prove supplied contact population.
What mounting information matters for MS27484T8B35S?
The listed configuration is a straight plug with grounding fingers. Check coupling clearance, rear termination space and the complete mating-half drawing for shell 08; confirm any backshell interface with the selected accessory drawing.
How should a mating half be checked for MS27484T8B35S?
Check MIL-DTL-38999 Series II, shell 08, insert 35 and keying Normal (no suffix). Compare complete controlled drawings and complementary contact configurations.
What should an RFQ for MS27484T8B35S include?
Send MS27484T8B35S, quantity, the mating-half code, mounting or harness drawing, contact supply and termination requirements, and required documents.
