MIL-DTL-38999 Series I · catalog configuration
MS27468T21B16PN

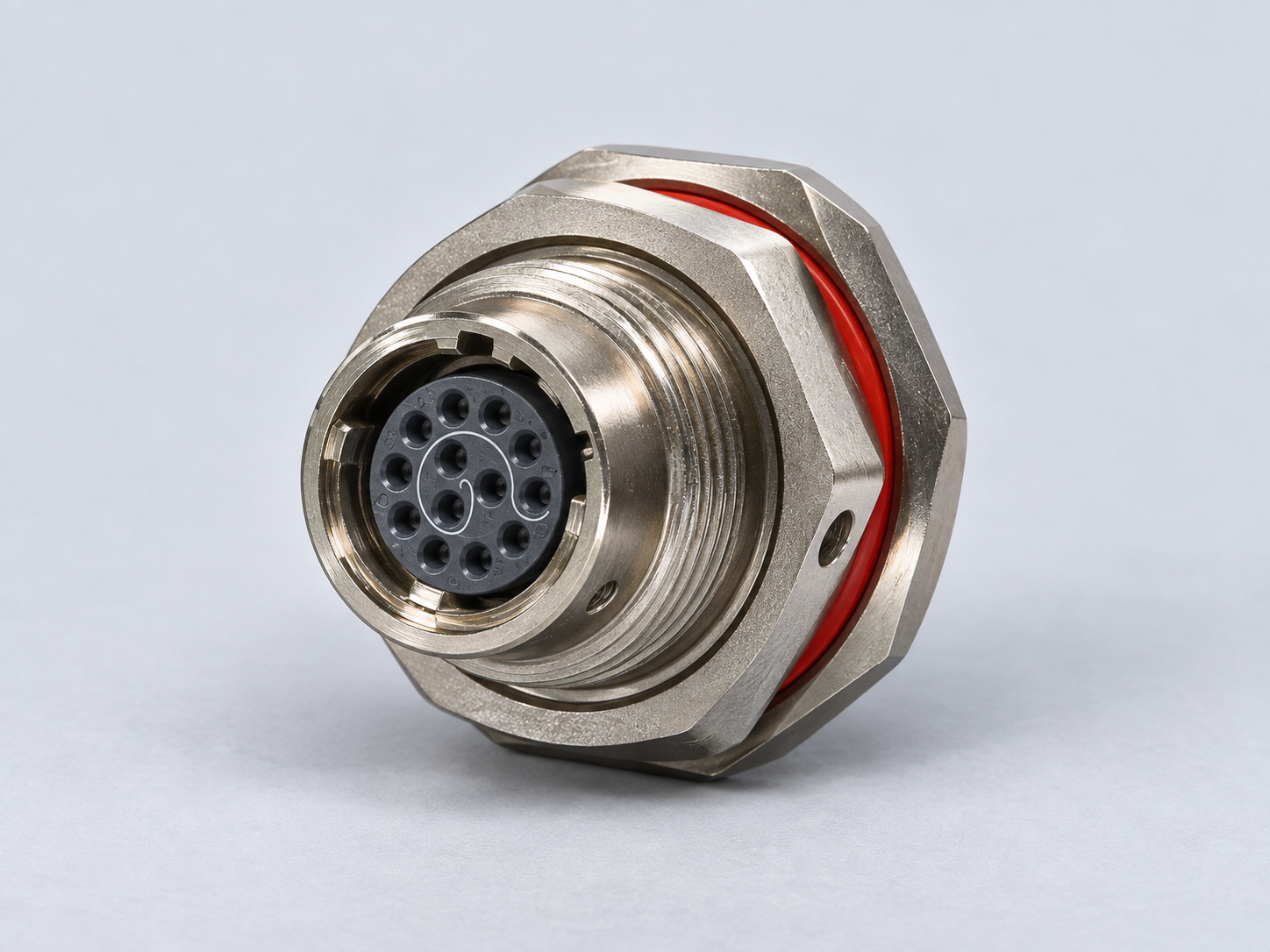

MS27468T21B16PN is an exact-code search reference for a MIL-DTL-38999 Series I jam-nut receptacle. Match the full ordering code and mating half before selecting a supply option.
Product number MS27468T21B16PN
- Series
- Series I
- Shell / insert
- 21 / 16
- Contact positions
- 16 positions; 16×16
- Material / finish
- Aluminum alloy; olive drab cadmium over nickel base
Description
MS27468T21B16PN is an exact-code search reference for a MIL-DTL-38999 Series I jam-nut receptacle. Match the full ordering code and mating half before selecting a supply option. Check the panel cutout, mounting depth, gasket and mating-half code. Compare the proposed supply against the requested drawing rather than assuming that a shared family name establishes interchangeability.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series I; Jam-nut receptacle |
|---|---|
| Coupling | Bayonet |
| Rear configuration code | T |
| Shell size / insert arrangement | 21 / 16 |
| Contact quantity and size mix | 16 positions; 16×16 |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; olive drab cadmium over nickel base |
| Insert service rating | II |
| Catalog withstand voltage at sea level | 2300 V |
| Catalog withstand voltage at 21 km | 1000 V |
| Catalog current rating by contact size | 16: 13 A/contact |
| Catalog contact resistance by size | 16: ≤2.5 mΩ |
| Catalog operating temperature | -65 to +175 °C |
| Catalog salt spray | 500 h |
| Family catalog mating life | ≥500 mating cycles (family catalog) |
| Family catalog insulation resistance | ≥5000 MΩ normal; ≥100 MΩ humid (family, own pp.5/28) |
| Family catalog shell continuity | ≤2.5 mΩ |
| Family catalog EMI shielding | ≥85 dB (100 MHz–1 GHz); ≥50 dB (1–10 GHz) (family, own pp.5/28) |
| Catalog drawing reference | Own 2025 pp.16-18 |
| Finish code | B |
| Contact gender / termination | P (crimp pin) |
| Accessory interface / shell drawing reference | Not applicable to jam-nut receptacle as an accessory thread; the shell drawing value 1.1875-18 is a drawing reference only. Confirm the controlled drawing. |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
What does MS27468T21B16PN identify?
MS27468T21B16PN is the exact reference to check in the MIL-DTL-38999 Series I sourcing request; confirm the supplier drawing for the supplied item.
What insert and contact arrangement is listed for MS27468T21B16PN?
The cited catalog lists insert 16 with 16 positions (16×16); confirm the supplied configuration against its controlled drawing.
What panel details matter for MS27468T21B16PN?
Check the panel cutout, mounting depth, gasket and mating-half code.
What should an RFQ for MS27468T21B16PN include?
Send the full part number, mating-half code, drawing or photo, required quantity and document requirements.
