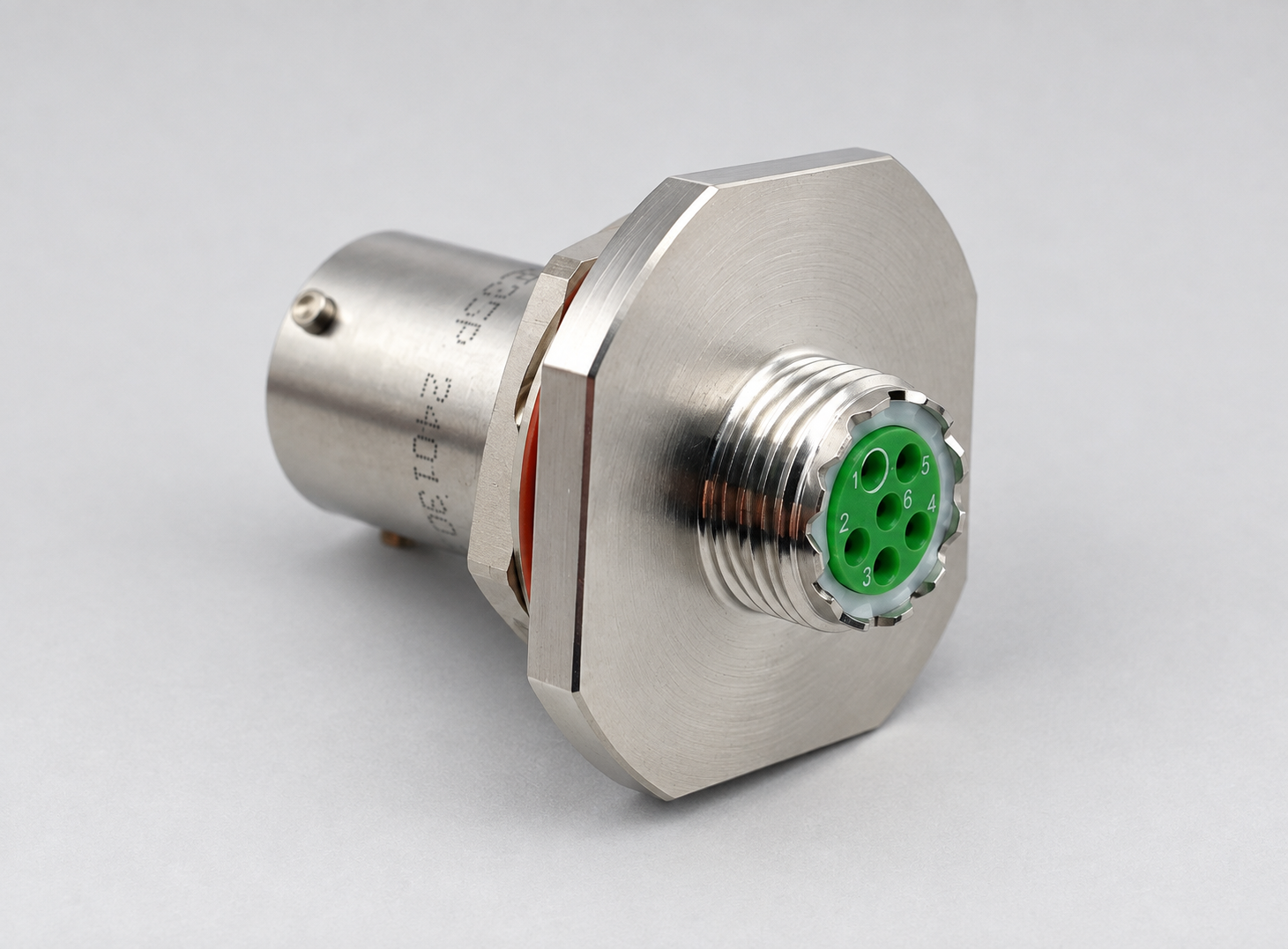

MS27468T09E35P
MS27468T09E35P is an exact-code search reference for a MIL-DTL-38999 Series I jam-nut receptacle. Match the full ordering code and mating half before selecting a supply option.
Product number MS27468T09E35P
- Series
- Series I
- Shell / insert
- 09 / 35
- Contact positions
- 6 positions; 6×22D
- Material / finish
- Passivated stainless steel
Description
MS27468T09E35P is an exact-code search reference for a MIL-DTL-38999 Series I jam-nut receptacle. Match the full ordering code and mating half before selecting a supply option. Check the panel cutout, mounting depth, gasket and mating-half code. Compare the proposed supply against the requested drawing rather than assuming that a shared family name establishes interchangeability.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series I; Jam-nut receptacle |
|---|---|
| Coupling | Bayonet |
| Rear configuration code | T |
| Shell size / insert arrangement | 09 / 35 |
| Contact quantity and size mix | 6 positions; 6×22D |
| Keying / option | N (omitted for crimp; own p.6) |
| Shell material and finish | Passivated stainless steel |
| Insert service rating | M |
| Catalog withstand voltage at sea level | 1300 V |
| Catalog withstand voltage at 21 km | 800 V |
| Catalog current rating by contact size | 22D: 5 A/contact |
| Catalog contact resistance by size | 22D: ≤12 mΩ |
| Catalog operating temperature | -65 to +200 °C |
| Catalog salt spray | 1000 h |
| Family catalog mating life | ≥500 mating cycles (family catalog) |
| Family catalog insulation resistance | ≥5000 MΩ normal; ≥100 MΩ humid (family, own pp.5/28) |
| Family catalog shell continuity | ≤5 mΩ |
| Family catalog EMI shielding | ≥85 dB (100 MHz–1 GHz); ≥50 dB (1–10 GHz) (family, own pp.5/28) |
| Catalog drawing reference | Own 2025 pp.16-18 |
| Finish code | E |
| Contact gender / termination | P (crimp pin) |
| Accessory interface / shell drawing reference | Not applicable to jam-nut receptacle as an accessory thread; the shell drawing value 0.4375-28 is a drawing reference only. Confirm the controlled drawing. |
