MIL-DTL-38999 Series III · catalog configuration
D38999/26ZG75AN

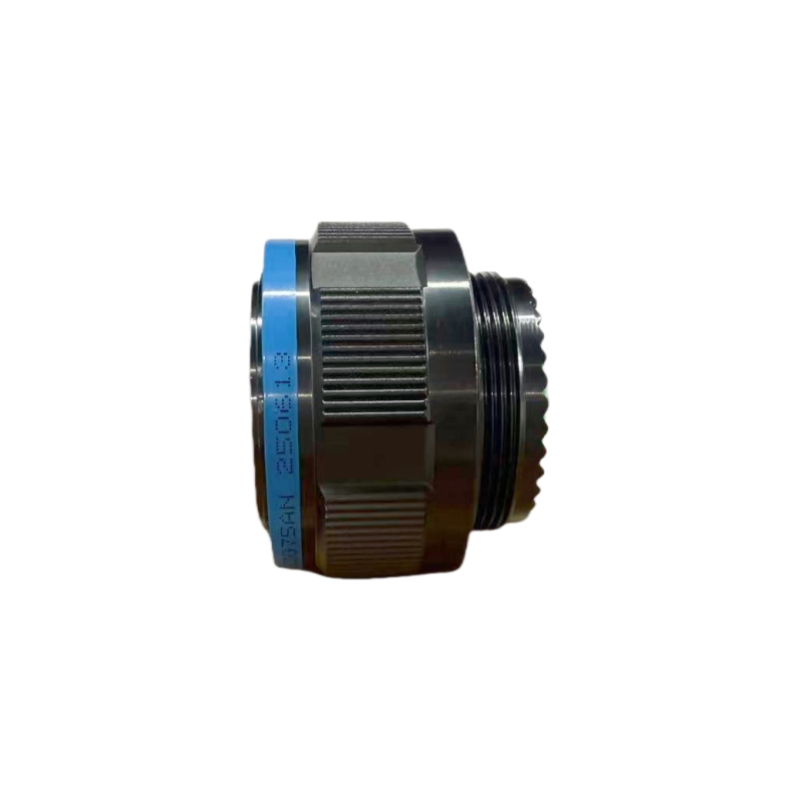

D38999/26ZG75AN is a MIL-DTL-38999 Series III straight plug. Its catalog ordering configuration uses shell G (21), insert 75 and four size8 contact positions; the A contact option does not include pin contacts.
Product number D38999/26ZG75AN
- Series
- Series III
- Shell / insert
- G (21) / 75
- Contact positions
- 4 positions; 4×8 contact positions
- Material / finish
- Aluminum alloy; black zinc-nickel
Description
D38999/26ZG75AN uses the Series III triple-start threaded plug format, shell G (21), insert 75 and black zinc-nickel aluminum. Four size8 positions are listed in the catalog. Confirm the required coax or twinax population separately against the supplied-item drawing; contacts are not included under option A.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Straight plug |
|---|---|
| Shell size / insert arrangement | G (21) / 75 |
| Contact quantity and size mix | 4 positions; 4×8 contact positions |
| Coupling | Triple-start threaded, self-locking |
| Contact / termination | A (pin insert supplied without pin contacts) |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; black zinc-nickel |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/26ZG75AN?
The catalog lists shell G (21), insert 75 with four size8 contact positions.
What mounting information matters for D38999/26ZG75AN?
The listed configuration is a straight plug. Check coupling clearance, rear termination space and the complete mating-half drawing for shell G (21); confirm any backshell interface with the selected accessory drawing.
Are contacts included with D38999/26ZG75AN?
Ordering option A denotes a pin insert supplied without pin contacts. Confirm the required contact parts, coax or twinax configuration and cable requirements against the controlled drawing.
What should an RFQ for D38999/26ZG75AN include?
Send the exact part number, mating drawing, quantity, contact and cable requirements, and required supplied-item documentation.
Similar Products
Compare adjacent catalog configurations and confirm mating, keying and rear interface by drawing.
D38999/26ZG75AN · RFQ
Send the exact drawing and mating requirement
Include the mating part, cable or panel details, quantity and documentation required for your project.
