D38999/26WD18SN

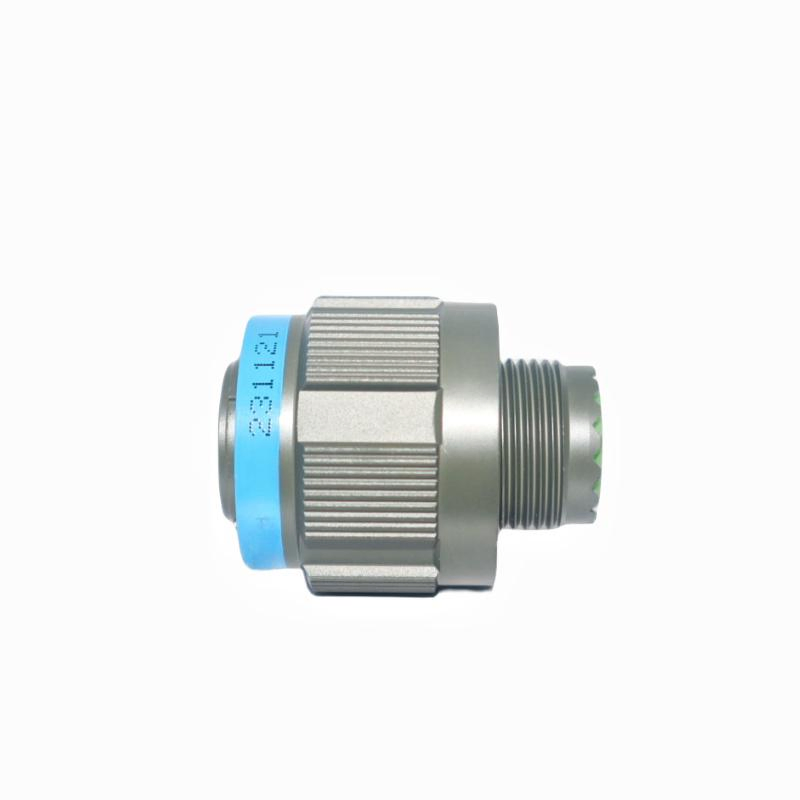

D38999/26WD18SN is a MIL-DTL-38999 Series III straight plug. The catalog configuration uses shell size D (15), insert arrangement 18, with 18 contact positions (18×20).
Product number D38999/26WD18SN
- Series
- Series III
- Shell / insert
- D (15) / 18
- Contact positions
- 18 positions; 18×20
- Material / finish
- Aluminum alloy; olive drab cadmium
Description
D38999/26WD18SN is a MIL-DTL-38999 Series III straight plug. The catalog configuration uses shell size D (15), insert arrangement 18, with 18 contact positions (18×20). The catalog lists Triple-start threaded, self-locking coupling and Aluminum alloy; olive drab cadmium. Select this reference with the full contact and keying code, panel or harness drawing, and intended mating half.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Straight plug |
|---|---|
| Shell size / insert arrangement | D (15) / 18 |
| Contact quantity and size mix | 18 positions; 18×20 |
| Coupling | Triple-start threaded, self-locking |
| Contact / termination | S (crimp socket) |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; olive drab cadmium |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/26WD18SN?
The catalog lists shell D (15), insert 18, 18 contact positions with 18×20. Use the full ordering reference when checking the supplied configuration.
What mounting information matters for D38999/26WD18SN?
The listed configuration is a straight plug. Check coupling clearance, rear termination space and the complete mating-half drawing for shell D (15); confirm any backshell interface with the selected accessory drawing.
How should a mating half be checked for D38999/26WD18SN?
Check the same MIL-DTL-38999 Series III, shell D (15), insert 18 and keying N, with complementary contact gender. Verify the two complete drawings; matching a family name does not establish interchangeability.
What should an RFQ for D38999/26WD18SN include?
Send D38999/26WD18SN, quantity, mating-half reference, mounting or harness drawing, contact/termination requirements and required documents. State any configuration changes separately from the base ordering code.
