D38999/26KC03PN

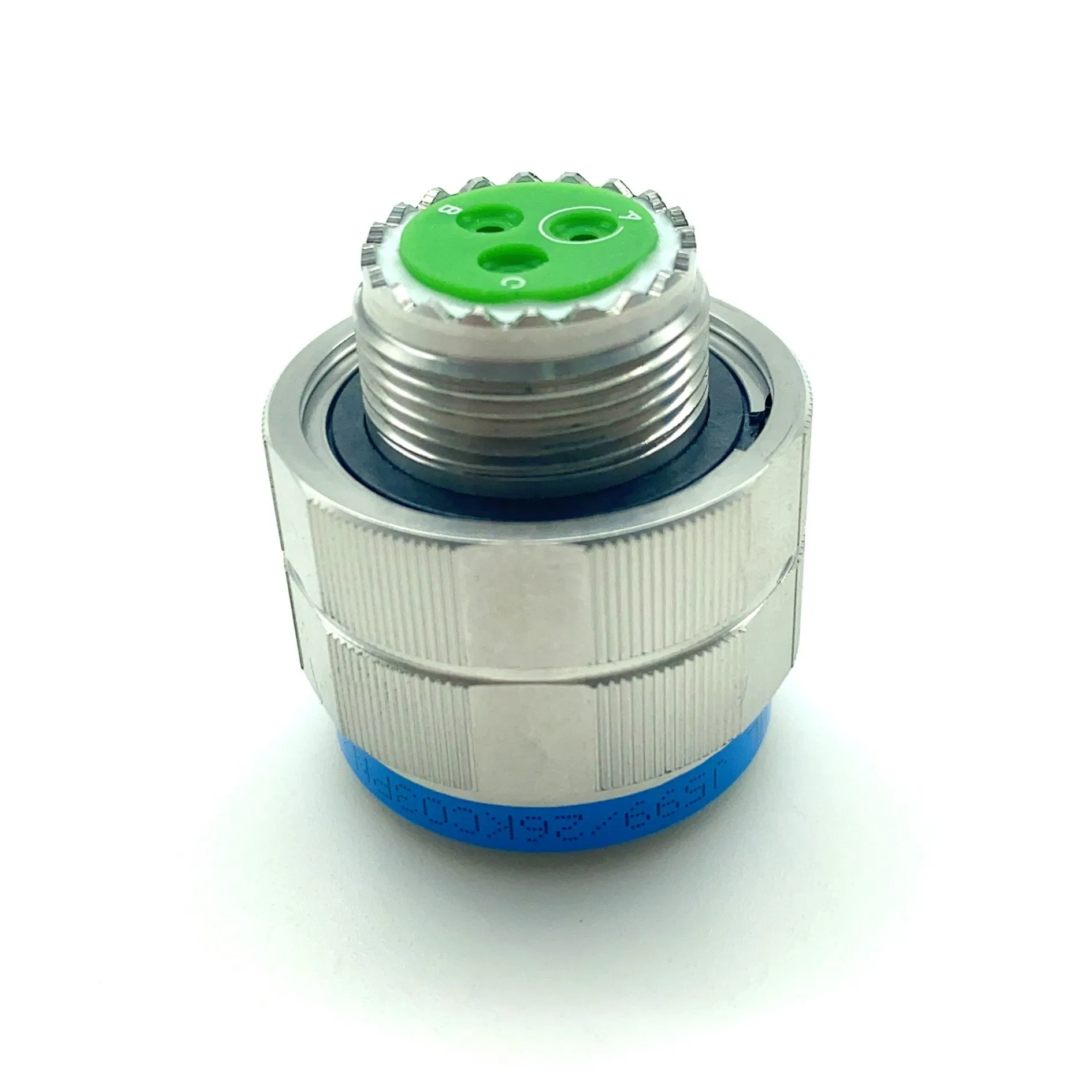

D38999/26KC03PN is a MIL-DTL-38999 Series III straight plug. The catalog configuration uses shell size C (13), insert arrangement 03, with 3 contact positions (3×16).
Product number D38999/26KC03PN
- Series
- Series III
- Shell / insert
- C (13) / 03
- Contact positions
- 3 positions; 3×16
- Material / finish
- Passivated stainless steel
Description
D38999/26KC03PN is a MIL-DTL-38999 Series III straight plug. The catalog configuration uses shell size C (13), insert arrangement 03, with 3 contact positions (3×16). The catalog lists Triple-start threaded, self-locking coupling and Passivated stainless steel. Confirm supplied contacts, the complete mating half and installation drawing before ordering.
