MIL-DTL-38999 Series III · catalog configuration
D38999/25YB35PN

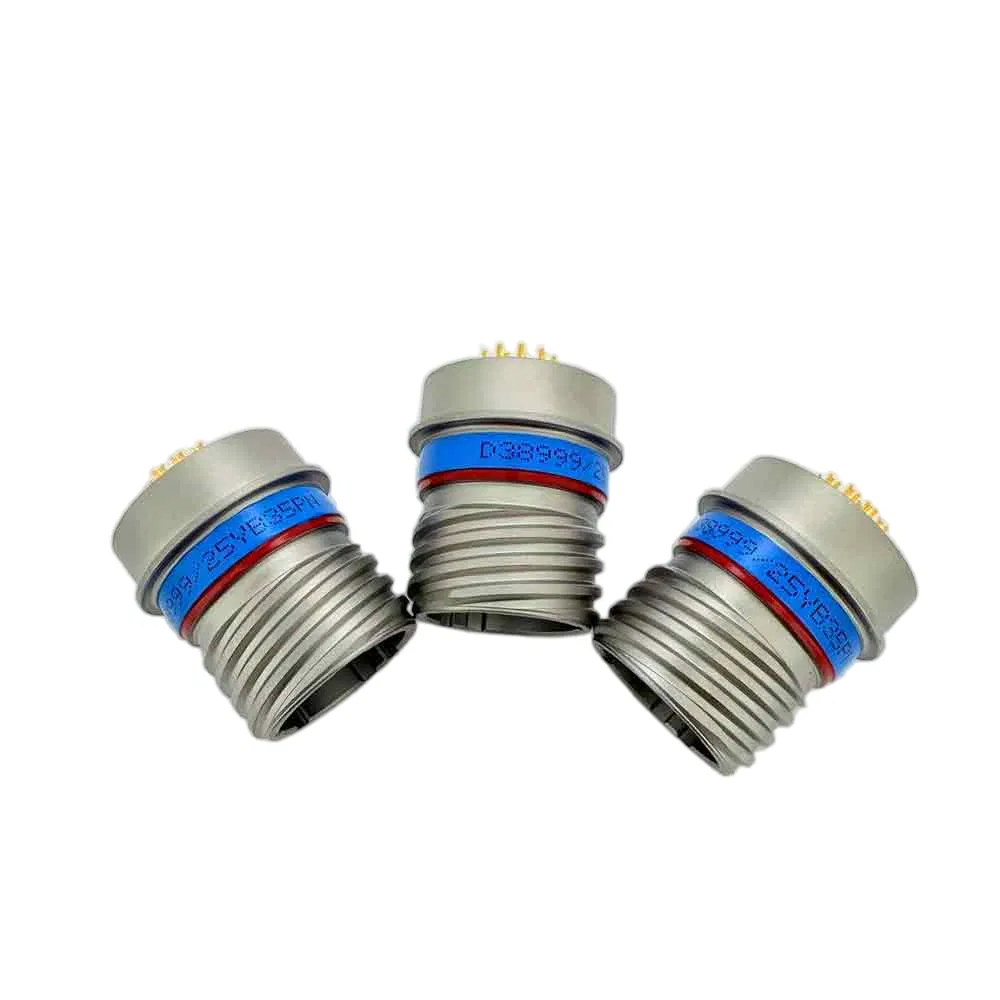

D38999/25YB35PN is a MIL-DTL-38999 Series III hermetic solder-mount receptacle. The catalog configuration uses shell size B (11), insert arrangement 35, with 13 contact positions (13×22D).
Product number D38999/25YB35PN
- Series
- Series III
- Shell / insert
- B (11) / 35
- Contact positions
- 13 positions; 13×22D
- Material / finish
- Passivated stainless steel; hermetic catalog class Y
Description
D38999/25YB35PN is a MIL-DTL-38999 Series III hermetic solder-mount receptacle. The catalog configuration uses shell size B (11), insert arrangement 35, with 13 contact positions (13×22D). The listed coupling is Triple-start threaded mating interface; shell material and finish are Hermetic stainless steel. Match the full configuration with the offered unit and controlled drawing.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Hermetic solder-mount receptacle |
|---|---|
| Shell size / insert arrangement | B (11) / 35 |
| Contact quantity and size mix | 13 positions; 13×22D |
| Coupling | Triple-start threaded mating interface |
| Contact / termination | P (pin contacts; hermetic solder termination) |
| Keying / option | N (normal) |
| Shell material and finish | Passivated stainless steel; hermetic catalog class Y |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/25YB35PN?
The catalog lists shell B (11), insert 35 and 13 positions with 13×22D. Position count describes the insert; it does not prove supplied contact population. Hermetic inserts use standard solder termination; the P contact code is not a crimp-removable contact claim for this hermetic family.
What mounting information matters for D38999/25YB35PN?
The /25 receptacle uses a solder-mount housing. Check the panel opening, solder installation process and rear clearance against the controlled installation drawing; it does not use the mounting flange of a wall-mount receptacle.
How should a mating half be checked for D38999/25YB35PN?
Check MIL-DTL-38999 Series III, shell B (11), insert 35 and keying N. Compare complete controlled drawings and complementary contact configurations.
What should an RFQ for D38999/25YB35PN include?
Send D38999/25YB35PN, quantity, the mating-half code, mounting or harness drawing, contact supply and termination requirements, and required documents.
