D38999/24WD04BN

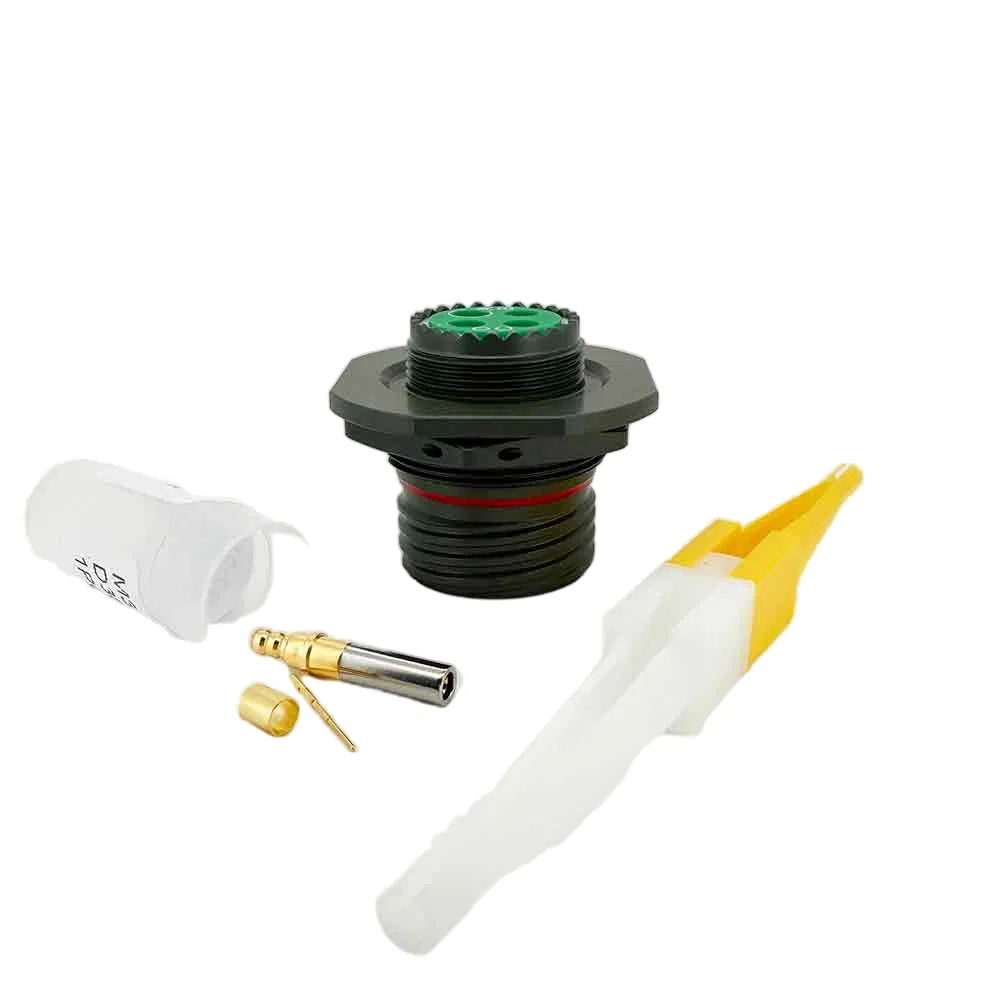

D38999/24WD04BN is a MIL-DTL-38999 Series III jam-nut receptacle. The catalog configuration uses shell size D (15), insert arrangement 04, with 4 contact positions (4×12).
Product number D38999/24WD04BN
- Series
- Series III
- Shell / insert
- D (15) / 04
- Contact positions
- 4 positions; 4×12
- Material / finish
- Aluminum alloy; olive drab cadmium
Description
D38999/24WD04BN is a MIL-DTL-38999 Series III jam-nut receptacle. The catalog configuration uses shell size D (15), insert arrangement 04, with 4 contact positions (4×12). The listed coupling is Triple-start threaded, self-locking; shell material and finish are Aluminum alloy; olive drab cadmium. Match the full configuration with the offered unit and controlled drawing.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Jam-nut receptacle |
|---|---|
| Shell size / insert arrangement | D (15) / 04 |
| Contact quantity and size mix | 4 positions; 4×12 |
| Coupling | Triple-start threaded, self-locking |
| Contact / termination | B (socket insert supplied without socket contacts) |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; olive drab cadmium |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/24WD04BN?
The catalog lists shell D (15), insert 04 and 4 positions with 4×12. Position count describes the insert; it does not prove supplied contact population. Contact code B denotes a socket insert supplied without socket contacts; specify contacts separately.
What mounting information matters for D38999/24WD04BN?
This is a jam-nut receptacle in shell D (15). Compare the panel opening, panel thickness, sealing arrangement and nut access against the controlled installation drawing.
How should a mating half be checked for D38999/24WD04BN?
Check MIL-DTL-38999 Series III, shell D (15), insert 04 and keying N. Compare complete controlled drawings and complementary contact configurations.
What should an RFQ for D38999/24WD04BN include?
Send D38999/24WD04BN, quantity, the mating-half code, mounting or harness drawing, contact supply and termination requirements, and required documents.
Similar Products
Compare adjacent catalog configurations and confirm mating, keying and rear interface by drawing.
