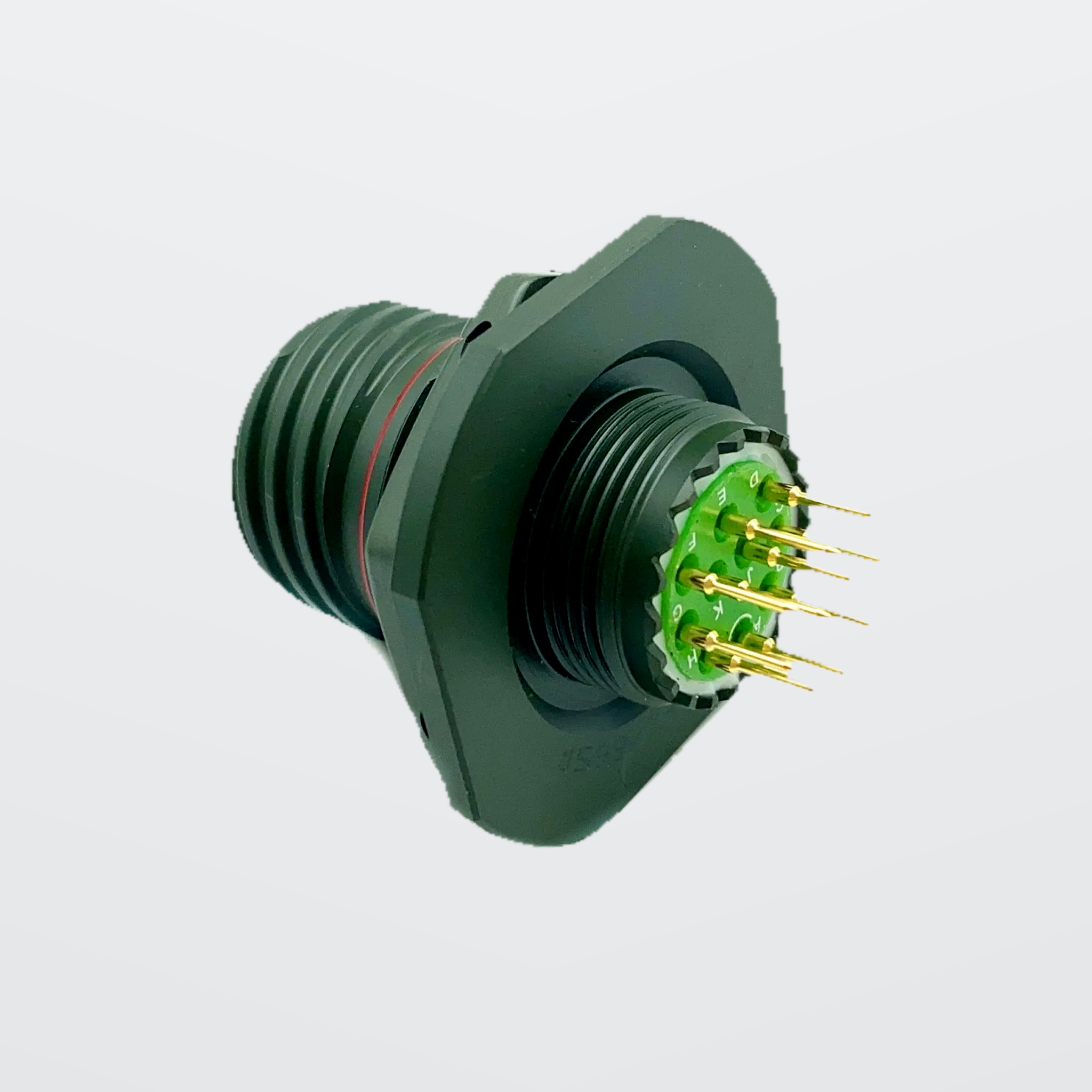

Reference view of the listed series, shell style and finish. Confirm contact population and supplied configuration by drawing.
MIL-DTL-38999 Series III · catalog configuration
D38999/24WC98PCN
D38999/24WC98PCN is a MIL-DTL-38999 Series III jam-nut receptacle. The catalog configuration uses shell size C (13), insert arrangement 98, with 10 contact positions (10×20).
Product number D38999/24WC98PCN
- Series
- Series III
- Shell / insert
- C (13) / 98
- Contact positions
- 10 positions (10×20)
- Material / finish
- Aluminum alloy; olive drab cadmium
Description
D38999/24WC98PCN is a MIL-DTL-38999 Series III jam-nut receptacle. The catalog configuration uses shell size C (13), insert arrangement 98, with 10 contact positions (10×20). The catalog lists Triple-start threaded, self-locking coupling and Aluminum alloy; olive drab cadmium. Select this reference with the full contact and keying code, panel or harness drawing, and intended mating half. Catalog configuration: PC (short PCB pin) contacts; keying N. Contact positions do not establish the contact population supplied with an order.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Jam-nut receptacle |
|---|---|
| Shell size / insert arrangement | C (13) / 98 |
| Contact quantity and size mix | 10 positions (10×20) |
| Coupling | Triple-start threaded, self-locking |
| Ordering-code service / finish suffix | W |
| Contact type / termination | PC (short PCB pin) |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; olive drab cadmium |
| Insert service rating | I |
| Catalog withstand voltage at sea level | 1800 V |
| Catalog withstand voltage at 21 km | 1000 V |
| Catalog current rating by contact size | 20: 7.5 A/contact |
| Catalog contact resistance by size | 20: ≤5 mΩ |
| Catalog operating temperature | -65 to +175 °C |
| Catalog salt spray | 500 h |
| Family catalog mating life | ≥500 mating cycles (family catalog) |
| Family catalog insulation resistance | ≥5000 MΩ normal (family, Tradin Connect catalog pp.46/73) |
| Family catalog shell continuity | ≤2.5 mΩ |
| Family catalog EMI shielding | ≥85 dB (100 MHz–1 GHz); ≥50 dB (1–10 GHz) (family, Tradin Connect catalog pp.46/72) |
| Catalog accessory thread | M 18×1-6g |
| Catalog drawing reference | Tradin Connect 2025 catalog p.58, 7.3 jam-nut drawing |
| Catalog source | Tradin Connect 2025 catalog pp.45-47; Donconn pp.3-5 | Tradin Connect 2025 catalog pp.45-47,104-105 | Tradin Connect 2025 catalog p.104 row 11 |
| Data boundary | Catalog configuration; confirm the offered item and required qualification documents against its controlled drawing. |
