MIL-DTL-38999 Series III · catalog configuration
D38999/24WB35PCB

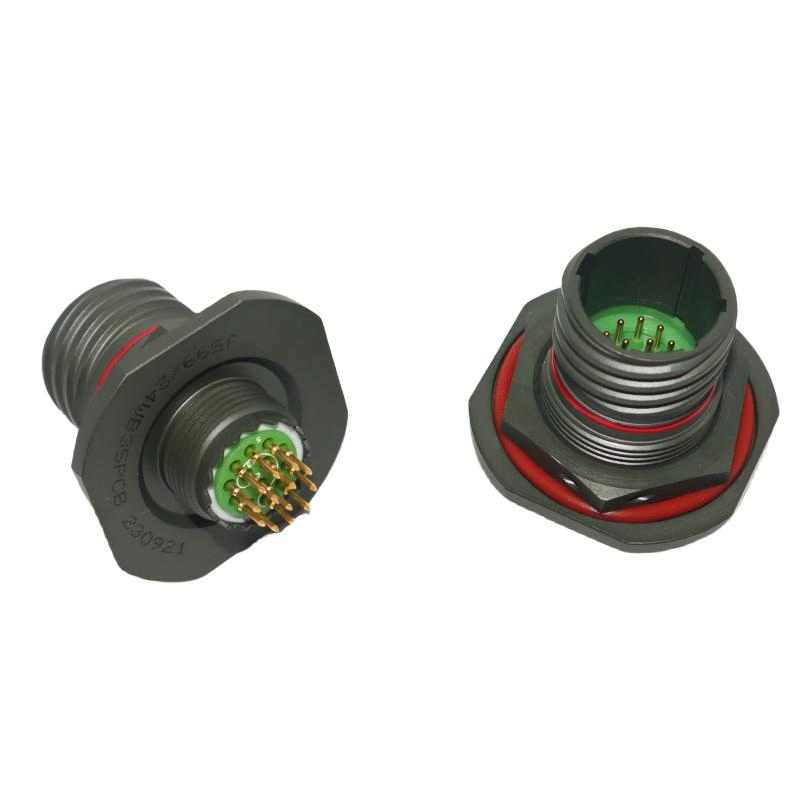

D38999/24WB35PCB is a MIL-DTL-38999 Series III jam-nut receptacle. The catalog configuration uses shell 11, insert 35, with 13 contact positions (13×22D).
Product number D38999/24WB35PCB
- Series
- Series III
- Shell / insert
- 11 / 35
- Contact positions
- 13 positions; 13×22D
- Material / finish
- Aluminum alloy; olive drab cadmium
Description
D38999/24WB35PCB is a MIL-DTL-38999 Series III jam-nut receptacle. The catalog configuration uses shell 11, insert 35, with 13 contact positions (13×22D). The listed contact configuration is PC (short PCB pin); keying is B (alternate keying). Shell material and finish: Aluminum alloy; olive drab cadmium. Keep the complete product number when requesting the offered-unit drawing and contact supply details.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Jam-nut receptacle |
|---|---|
| Shell size / insert arrangement | 11 / 35 |
| Contact quantity and size mix | 13 positions; 13×22D |
| Coupling | Triple-start threaded, self-locking |
| Contact / termination | PC (short PCB pin) |
| Keying / option | B (alternate keying) |
| Shell material and finish | Aluminum alloy; olive drab cadmium |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which insert configuration is listed for D38999/24WB35PCB?
The catalog lists shell 11, insert 35, with 13 positions (13×22D). Confirm supplied contact population with the offered-unit drawing.
What installation information matters for D38999/24WB35PCB?
This is a jam-nut receptacle in shell 11. Compare the panel opening, panel thickness, sealing arrangement and nut access against the controlled installation drawing.
What contact and keying configuration is listed for D38999/24WB35PCB?
The listed contact configuration is PC (short PCB pin); keying is B (alternate keying). Compare the complete mating-half code and drawings.
What should an RFQ for D38999/24WB35PCB include?
Send the complete D38999/24WB35PCB product number, quantity, mating-half code, installation drawing, required supplied contacts and documents.
