MIL-DTL-38999 Series III · catalog configuration
D38999/24TC4PN

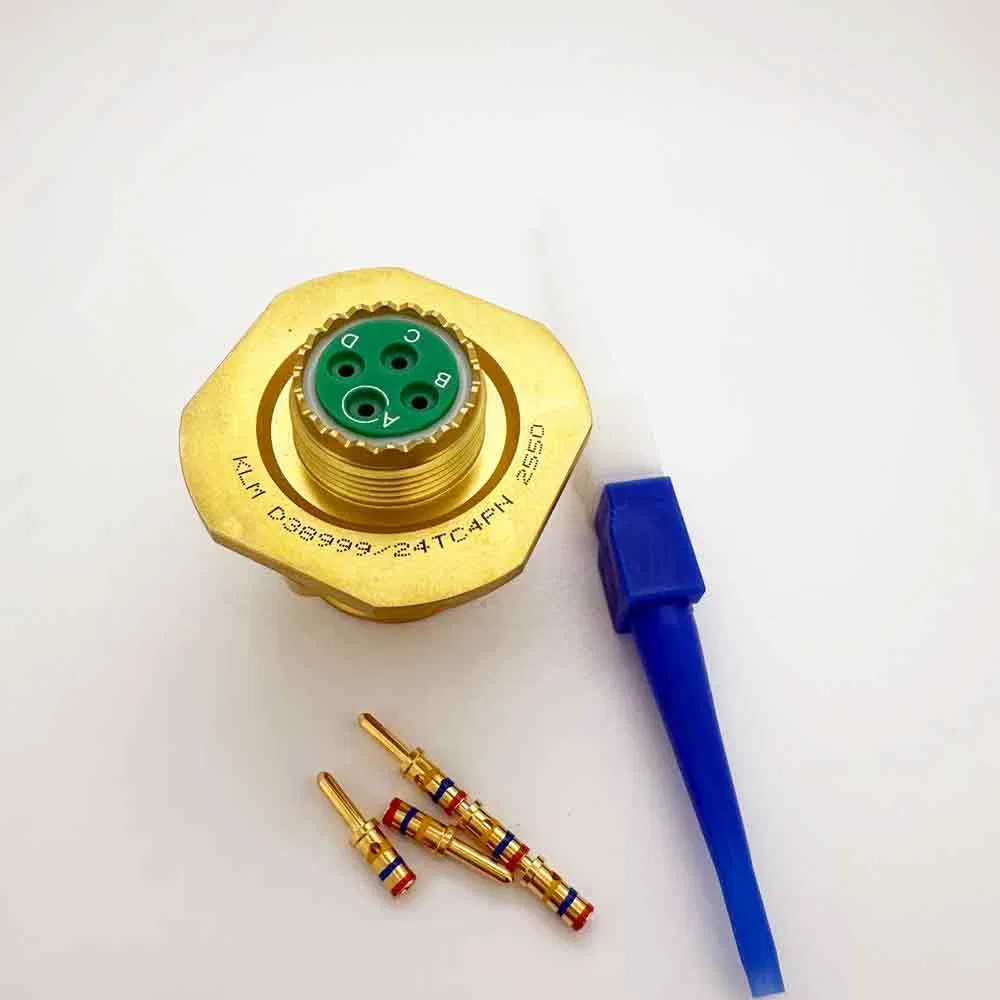

D38999/24TC4PN is a MIL-DTL-38999 Series III jam-nut receptacle. The catalog configuration uses shell size 13, insert arrangement 4, with 4 contact positions (4×16).
Product number D38999/24TC4PN
- Series
- Series III
- Shell / insert
- 13 / 4
- Contact positions
- 4 positions; 4×16
- Material / finish
- Aluminum alloy; nickel-PTFE (Amphenol T ordering definition)
Description
D38999/24TC4PN is a MIL-DTL-38999 Series III jam-nut receptacle. The catalog configuration uses shell size 13, insert arrangement 4, with 4 contact positions (4×16). The listed coupling is Triple-start threaded; shell material and finish are Aluminum alloy; nickel-PTFE (Amphenol T ordering definition). Match the full configuration with the offered unit and controlled drawing.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Jam-nut receptacle |
|---|---|
| Shell size / insert arrangement | 13 / 4 |
| Contact quantity and size mix | 4 positions; 4×16 |
| Coupling | Triple-start threaded |
| Contact / termination | P (crimp pin contacts) |
| Keying / option | N (normal keying) |
| Shell material and finish | Aluminum alloy; nickel-PTFE (Amphenol T ordering definition) |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/24TC4PN?
The catalog lists shell 13, insert 4 and 4 positions with 4×16. Position count describes the insert; it does not prove supplied contact population.
What mounting information matters for D38999/24TC4PN?
This is a jam-nut receptacle in shell 13. Compare the panel opening, panel thickness, sealing arrangement and nut access against the controlled installation drawing.
How should a mating half be checked for D38999/24TC4PN?
Check MIL-DTL-38999 Series III, shell 13, insert 4 and keying N (normal keying). Compare complete controlled drawings and complementary contact configurations.
What should an RFQ for D38999/24TC4PN include?
Send D38999/24TC4PN, quantity, the mating-half code, mounting or harness drawing, contact supply and termination requirements, and required documents.
Similar Products
Compare adjacent catalog configurations and confirm mating, keying and rear interface by drawing.
D38999/24TC4PN · RFQ
Send the exact drawing and mating requirement
Include the mating part, cable or panel details, quantity and documentation required for your project.
