MIL-DTL-38999 Series III · catalog configuration
D38999/24FF35PN

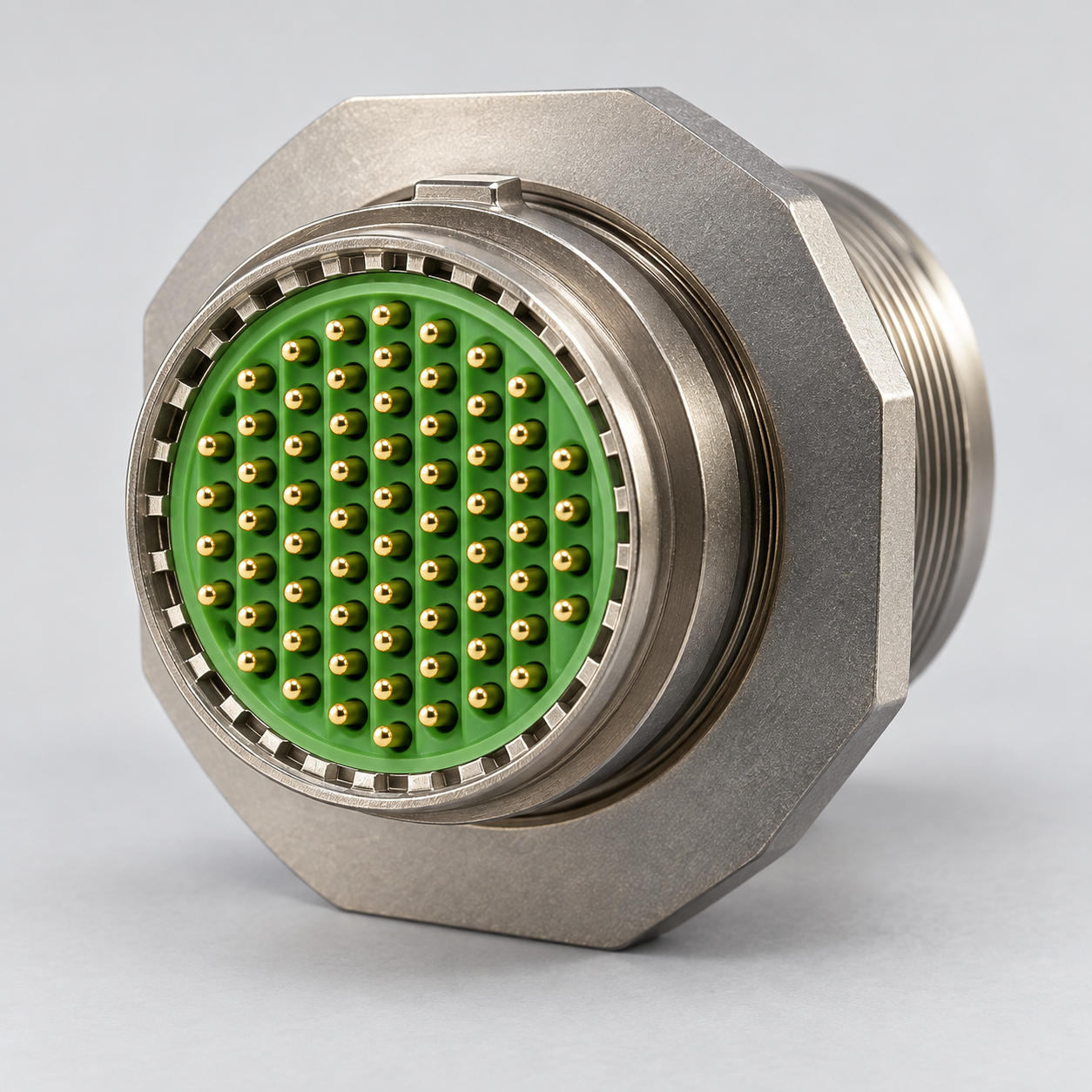

D38999/24FF35PN is a MIL-DTL-38999 Series III jam-nut receptacle. The catalog configuration uses shell size F (19), insert arrangement 35, with 66 contact positions (66×22D).
Product number D38999/24FF35PN
- Series
- Series III
- Shell / insert
- F (19) / 35
- Contact positions
- 66 positions; 66×22D
- Material / finish
- Aluminum alloy; electroless nickel
Description
D38999/24FF35PN is a MIL-DTL-38999 Series III jam-nut receptacle. The catalog configuration uses shell size F (19), insert arrangement 35, with 66 contact positions (66×22D). The catalog lists Triple-start threaded, self-locking coupling and Aluminum alloy; electroless nickel. Select this reference with the full contact and keying code, panel or harness drawing, and intended mating half.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Jam-nut receptacle |
|---|---|
| Shell size / insert arrangement | F (19) / 35 |
| Contact quantity and size mix | 66 positions; 66×22D |
| Coupling | Triple-start threaded, self-locking |
| Ordering-code service / finish | F |
| Contact type / termination | P (crimp pin) |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; electroless nickel |
| Catalog insert service rating | M |
| Catalog withstand voltage at sea level | 1300 V |
| Catalog withstand voltage at 21 km | 800 V |
| Catalog contact current per contact | 22D: 5 A/contact |
| Catalog contact resistance | 22D: ≤12 mΩ |
| Catalog operating temperature | -65 to +200 °C |
| Catalog salt spray | 48 h |
| Family catalog mating life | ≥500 mating cycles (family catalog) |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/24FF35PN?
The current catalog preparation lists shell F (19), insert 35, 66 contact positions with 66×22D. Use the full ordering reference when checking the supplied configuration.
What mounting information matters for D38999/24FF35PN?
Confirm the mounting dimensions and rear interface using the drawing for the exact ordering reference and the equipment drawing.
How should a mating half be checked for D38999/24FF35PN?
Check the same MIL-DTL-38999 Series III, shell F (19), insert 35 and keying N, with complementary contact gender. Verify the two complete drawings; matching a family name does not establish interchangeability.
What should an RFQ for D38999/24FF35PN include?
Send D38999/24FF35PN, quantity, mating-half reference, mounting or harness drawing, contact/termination requirements and required documents. State any configuration changes separately from the base ordering code.
