MIL-DTL-38999 Series III · catalog configuration
D38999/24FA98PN

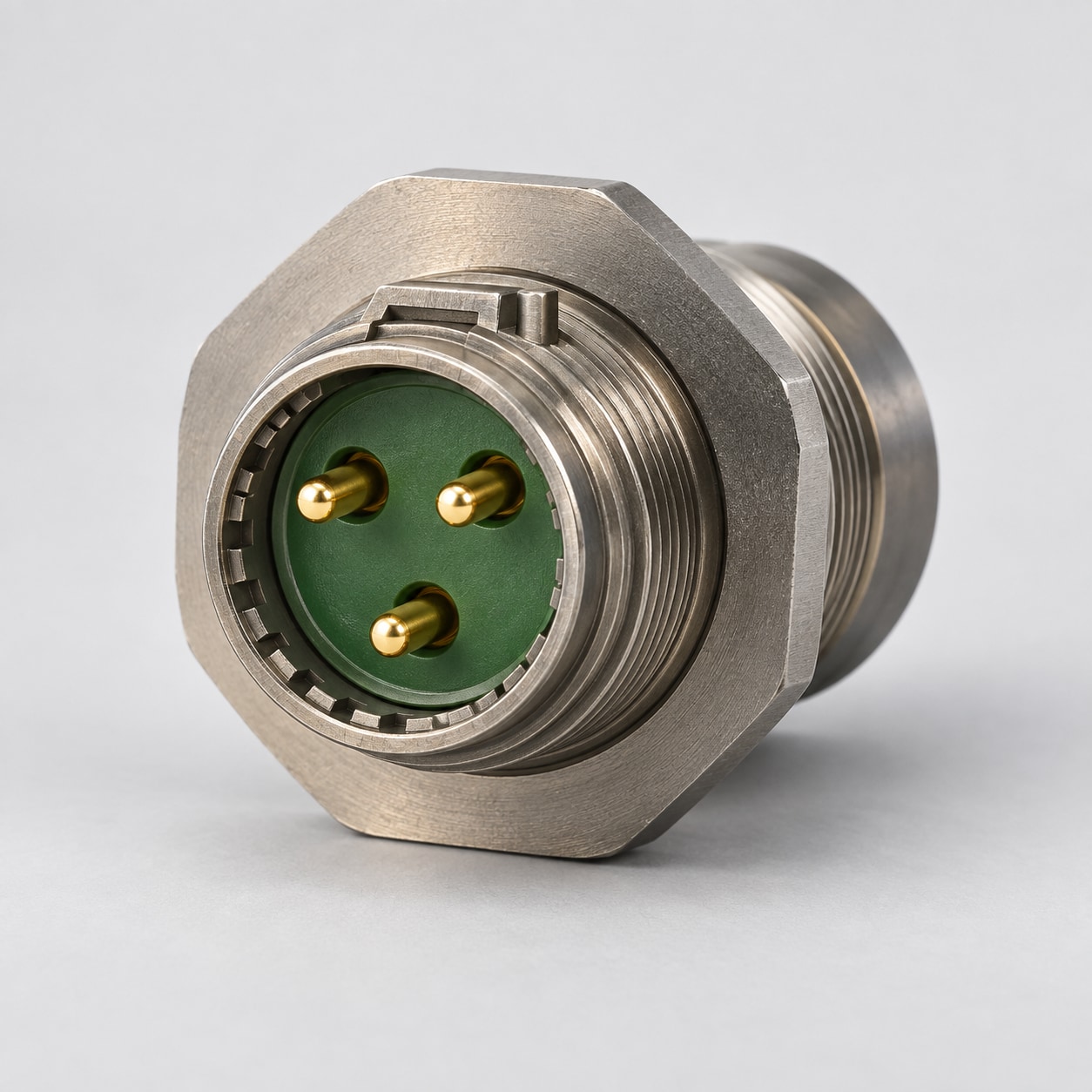

D38999/24FA98PN is a catalog reference for a MIL-DTL-38999 Series III jam-nut receptacle. The cited catalog lists shell A (09), insert 98, and 3 positions (3×20); confirm the supplied configuration against its controlled drawing.
Product number D38999/24FA98PN
- Series
- Series III
- Shell / insert
- A (09) / 98
- Contact positions
- 3 positions (3×20)
- Material / finish
- Aluminum alloy; electroless nickel
Description
D38999/24FA98PN is a catalog reference for a MIL-DTL-38999 Series III jam-nut receptacle. The cited catalog lists shell A (09), insert 98, and 3 positions (3×20); confirm the supplied configuration against its controlled drawing. The catalog lists triple-start threaded, self-locking, p (crimp pin) contacts, keying N, and aluminum alloy; electroless nickel. Match the mating half, mounting interface, complete ordering code and controlled drawing before ordering. Catalog references: Own 2025 pp.45-47; Donconn pp.3-5 | Own 2025 pp.45-47,104-105 | Own 2025 p.104 row 2. These describe catalog/family data and do not verify a supplied unit, qualification, test result or certification.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Jam-nut receptacle |
|---|---|
| Coupling | Triple-start threaded, self-locking |
| Ordering-code service / finish suffix | F |
| Shell size / insert arrangement | A (09) / 98 |
| Contact quantity and size mix | 3 positions (3×20) |
| Contact type / termination | P (crimp pin) |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; electroless nickel |
| Insert service rating | I |
| Catalog withstand voltage at sea level | 1800 |
| Catalog withstand voltage at 21 km | 1000 |
| Catalog current rating by contact size | 20: 7.5 A/contact |
| Catalog contact resistance by size | 20: ≤5 mΩ |
| Catalog operating temperature | -65 to +200 °C |
| Catalog salt spray | 48 h |
| Family catalog mating life | ≥500 mating cycles (family catalog) |
| Family catalog insulation resistance | ≥5000 MΩ normal (family, own pp.46/73) |
| Family catalog shell continuity | ≤1.0 mΩ |
| Family catalog EMI shielding | ≥85 dB (100 MHz–1 GHz); ≥65 dB (1–10 GHz) (family, own pp.46/72) |
| Catalog accessory thread | M 12×1-6g |
| Catalog drawing reference | Own 2025 p.58, 7.3 jam-nut drawing |
| Catalog source | Own 2025 pp.45-47; Donconn pp.3-5 | Own 2025 pp.45-47,104-105 | Own 2025 p.104 row 2 |
| Data boundary | Internal catalog basis; not a SKU test or qualification certificate |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
What does D38999/24FA98PN identify?
D38999/24FA98PN is the exact catalog reference to check in a MIL-DTL-38999 Series III sourcing request; confirm the supplied item against its controlled drawing.
What configuration is listed for D38999/24FA98PN?
The cited catalog lists shell A (09), insert 98, 3 positions (3×20), p (crimp pin) contacts and keying N. Confirm the offered configuration against its controlled drawing.
What should be checked before mating D38999/24FA98PN?
Match the series, shell, insert arrangement, contact type, keying and jam-nut receptacle interface using the full ordering code and assembly drawing.
What should an RFQ for D38999/24FA98PN include?
Send the complete part number, mating-half code, drawing or photo, required quantity and document requirements.
