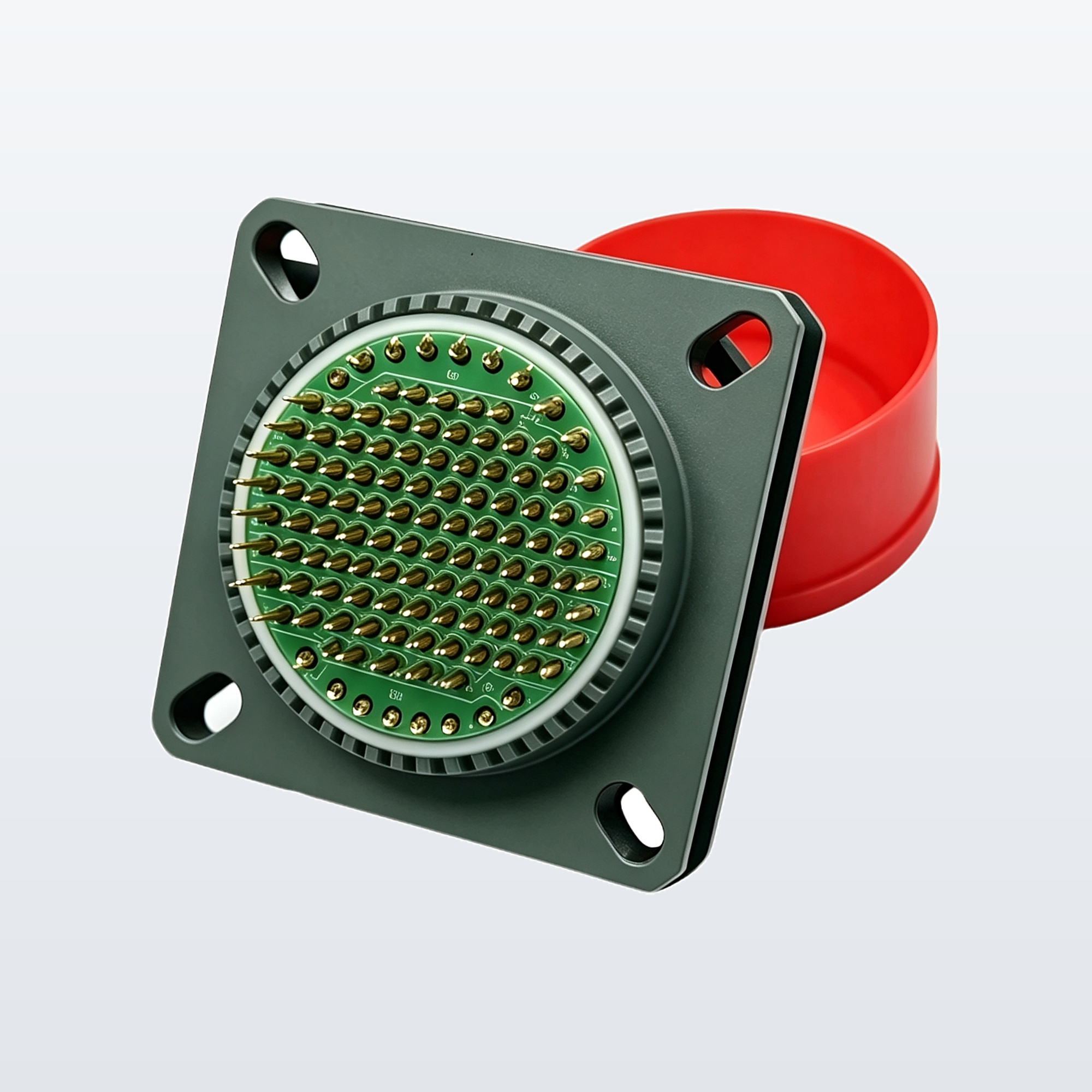

Reference view of the listed series, shell style and finish. Confirm contact population and supplied configuration by drawing.
MIL-DTL-38999 Series III · catalog configuration
D38999/20WJ35SLN
D38999/20WJ35SLN is a MIL-DTL-38999 Series III wall-mount receptacle. The catalog configuration uses shell size J (25), insert arrangement 35, with 128 contact positions (128×22D).
Product number D38999/20WJ35SLN
- Series
- Series III
- Shell / insert
- J (25) / 35
- Contact positions
- 128 positions (128×22D)
- Material / finish
- Aluminum alloy; olive drab cadmium
Description
D38999/20WJ35SLN is a MIL-DTL-38999 Series III wall-mount receptacle. The catalog configuration uses shell size J (25), insert arrangement 35, with 128 contact positions (128×22D). The catalog lists Triple-start threaded, self-locking coupling and Aluminum alloy; olive drab cadmium. Select this reference with the full contact and keying code, panel or harness drawing, and intended mating half. Catalog configuration: SL (long PCB socket) contacts; keying N. Contact positions do not establish the contact population supplied with an order.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Wall-mount receptacle |
|---|---|
| Shell size / insert arrangement | J (25) / 35 |
| Contact quantity and size mix | 128 positions (128×22D) |
| Coupling | Triple-start threaded, self-locking |
| Ordering-code service / finish suffix | W |
| Contact type / termination | SL (long PCB socket) |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; olive drab cadmium |
| Insert service rating | M |
| Catalog withstand voltage at sea level | 1300 V |
| Catalog withstand voltage at 21 km | 800 V |
| Catalog current rating by contact size | 22D: 5 A/contact |
| Catalog contact resistance by size | 22D: ≤12 mΩ |
| Catalog operating temperature | -65 to +175 °C |
| Catalog salt spray | 500 h |
| Family catalog mating life | ≥500 mating cycles (family catalog) |
| Family catalog insulation resistance | ≥5000 MΩ normal (family, Tradin Connect catalog pp.46/73) |
| Family catalog shell continuity | ≤2.5 mΩ |
| Family catalog EMI shielding | ≥85 dB (100 MHz–1 GHz); ≥50 dB (1–10 GHz) (family, Tradin Connect catalog pp.46/72) |
| Catalog accessory thread | M 37×1-6g |
| Catalog drawing reference | Tradin Connect 2025 catalog p.57, 7.2 flange drawing |
| Catalog source | Tradin Connect 2025 catalog pp.45-47; Donconn pp.3-5 | Tradin Connect 2025 catalog pp.45-47,104-105 | Tradin Connect 2025 catalog p.105 row 71 |
| Data boundary | Catalog configuration; confirm the offered item and required qualification documents against its controlled drawing. |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/20WJ35SLN?
The cited catalog lists shell J (25), insert 35, 128 contact positions with 128×22D. Use the full ordering reference when checking the supplied configuration.
What mounting information matters for D38999/20WJ35SLN?
The listed shell style is wall-mount receptacle. The catalog drawing reference is Tradin Connect 2025 catalog p.57, 7.2 flange drawing; compare its installation dimensions and rear interface M 37×1-6g with the equipment drawing.
How should a mating half be checked for D38999/20WJ35SLN?
Check the same MIL-DTL-38999 Series III, shell J (25), insert 35 and keying N, with complementary contact gender. Verify the two complete drawings; matching a family name does not establish interchangeability.
What should an RFQ for D38999/20WJ35SLN include?
Send D38999/20WJ35SLN, quantity, mating-half reference, mounting or harness drawing, contact/termination requirements and required documents. State any configuration changes separately from the base ordering code.
