MIL-DTL-38999 Series III · catalog configuration
D38999/20WE26PN

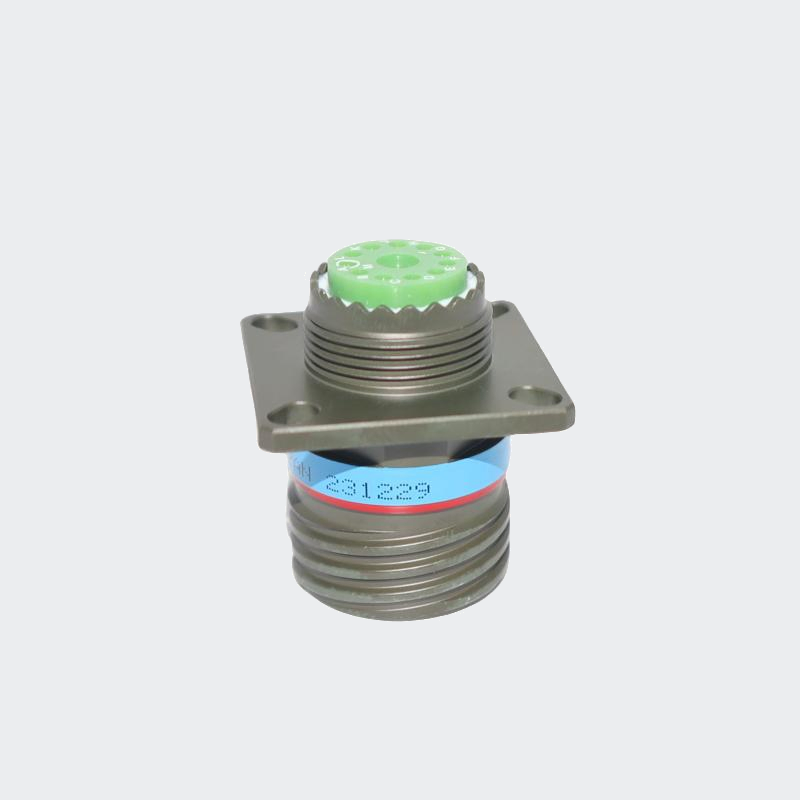

D38999/20WE26PN is a MIL-DTL-38999 Series III wall-mount receptacle. The catalog configuration uses shell size E (17), insert arrangement 26, with 26 contact positions (26×20).
Product number D38999/20WE26PN
- Series
- Series III
- Shell / insert
- E (17) / 26
- Contact positions
- 26 positions; 26×20
- Material / finish
- Aluminum alloy; olive drab cadmium
Description
D38999/20WE26PN is a MIL-DTL-38999 Series III wall-mount receptacle. The catalog configuration uses shell size E (17), insert arrangement 26, with 26 contact positions (26×20). The catalog lists Triple-start threaded, self-locking coupling and Aluminum alloy; olive drab cadmium. Select this reference with the full contact and keying code, panel or harness drawing, and intended mating half.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Wall-mount receptacle |
|---|---|
| Shell size / insert arrangement | E (17) / 26 |
| Contact quantity and size mix | 26 positions; 26×20 |
| Coupling | Triple-start threaded, self-locking |
| Contact / termination | P (crimp pin) |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; olive drab cadmium |
| Accessory thread / shell drawing | M 25×1-6g |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/20WE26PN?
The current catalog preparation lists shell E (17), insert 26, 26 contact positions with 26×20. Use the full ordering reference when checking the supplied configuration.
What mounting information matters for D38999/20WE26PN?
The listed shell style is wall-mount receptacle. The catalog drawing reference is Own 2025 p.57, 7.2 flange drawing; compare its installation dimensions and rear interface M 25×1-6g with the equipment drawing.
How should a mating half be checked for D38999/20WE26PN?
Check the same MIL-DTL-38999 Series III, shell E (17), insert 26 and keying N, with complementary contact gender. Verify the two complete drawings; matching a family name does not establish interchangeability.
What should an RFQ for D38999/20WE26PN include?
Send D38999/20WE26PN, quantity, mating-half reference, mounting or harness drawing, contact/termination requirements and required documents. State any configuration changes separately from the base ordering code.
Similar Products
Compare adjacent catalog configurations and confirm mating, keying and rear interface by drawing.
