MIL-DTL-38999 Series III · catalog configuration
D38999/20KD05PN-M10

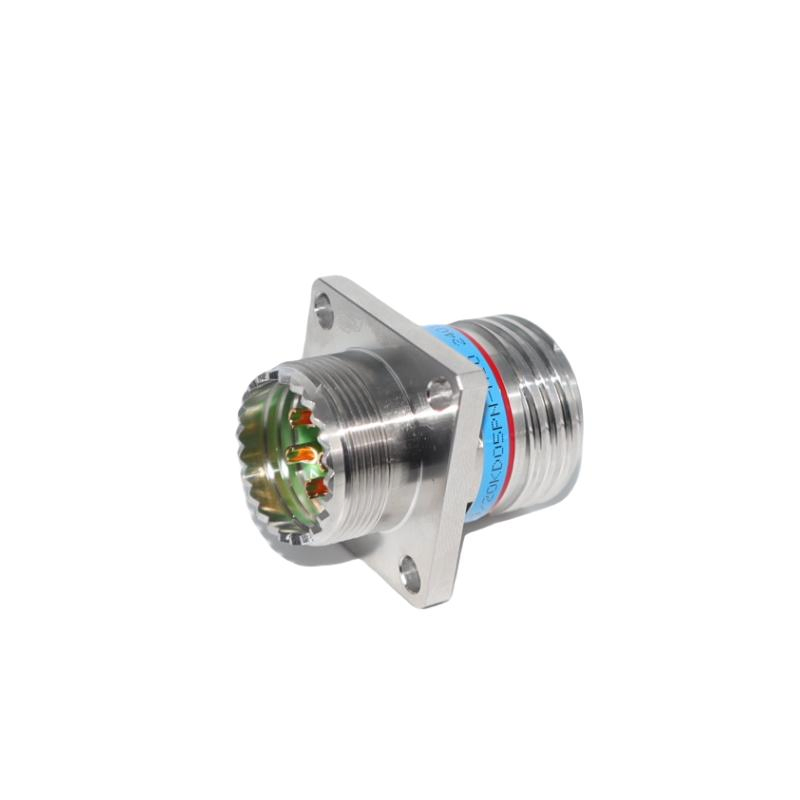

D38999/20KD05PN-M10 is a MIL-DTL-38999 Series III wall-mount receptacle. The catalog configuration uses shell 15, insert 05, with 5 contact positions (5×16).
Product number D38999/20KD05PN-M10
- Series
- Series III
- Shell / insert
- 15 / 05
- Contact positions
- 5 positions; 5×16
- Material / finish
- Passivated stainless steel
Description
D38999/20KD05PN-M10 is a MIL-DTL-38999 Series III wall-mount receptacle. The catalog configuration uses shell 15, insert 05, with 5 contact positions (5×16). The listed contact configuration is P (crimp pin); keying is N. Shell material and finish: Passivated stainless steel. Keep the complete product number when requesting the offered-unit drawing and contact supply details.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Wall-mount receptacle |
|---|---|
| Shell size / insert arrangement | 15 / 05 |
| Contact quantity and size mix | 5 positions; 5×16 |
| Coupling | Triple-start threaded, self-locking |
| Contact / termination | P (crimp pin) |
| Keying / option | N |
| Shell material and finish | Passivated stainless steel |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which insert configuration is listed for D38999/20KD05PN-M10?
The catalog lists shell 15, insert 05, with 5 positions (5×16). Confirm supplied contact population with the offered-unit drawing.
What installation information matters for D38999/20KD05PN-M10?
This is a wall-mount receptacle in shell 15. Compare flange mounting, panel opening, seal placement and rear clearance against the controlled installation drawing.
What contact and keying configuration is listed for D38999/20KD05PN-M10?
The listed contact configuration is P (crimp pin); keying is N. Compare the complete mating-half code and drawings.
What should an RFQ for D38999/20KD05PN-M10 include?
Send the complete D38999/20KD05PN-M10 product number, quantity, mating-half code, installation drawing, required supplied contacts and documents.
Similar Products
Compare adjacent catalog configurations and confirm mating, keying and rear interface by drawing.
D38999/20KD05PN-M10 · RFQ
Send the exact drawing and mating requirement
Include the mating part, cable or panel details, quantity and documentation required for your project.
