D38999/20FE02PN

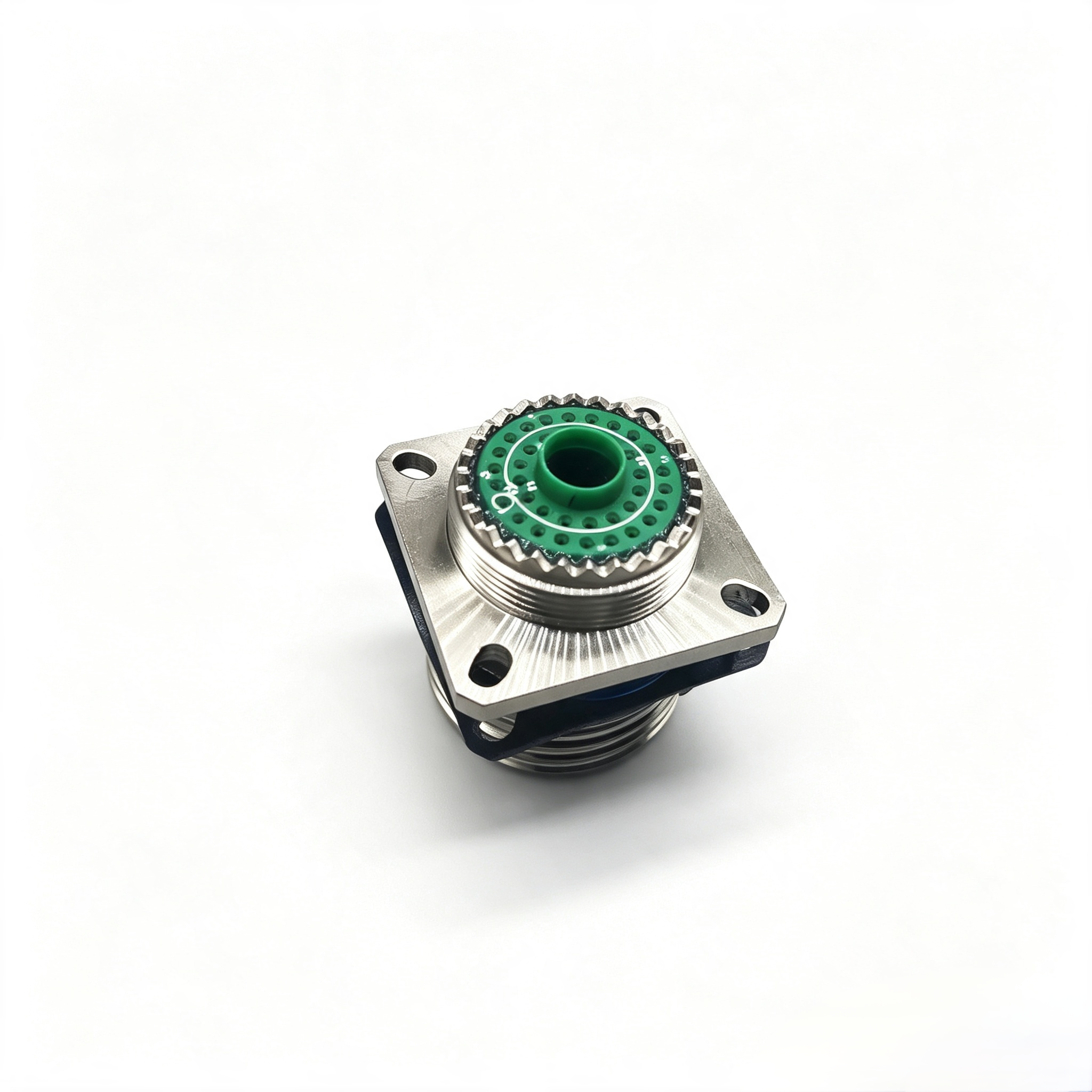

D38999/20FE02PN is a MIL-DTL-38999 Series III wall-mount receptacle. The catalog configuration uses shell size E (17), insert arrangement 02, with 39 contact positions (38×22D, 1×8 twinax).
Product number D38999/20FE02PN
- Series
- Series III
- Shell / insert
- E (17) / 02
- Contact positions
- 39 positions; 38×22D, 1×8 twinax
- Material / finish
- Aluminum alloy; electroless nickel
Description
D38999/20FE02PN is a MIL-DTL-38999 Series III wall-mount receptacle. The catalog configuration uses shell size E (17), insert arrangement 02, with 39 contact positions (38×22D, 1×8 twinax). The catalog lists Triple-start threaded, self-locking coupling and Aluminum alloy; electroless nickel. Confirm supplied contacts, the complete mating half and installation drawing before ordering.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Wall-mount receptacle |
|---|---|
| Shell size / insert arrangement | E (17) / 02 |
| Contact quantity and size mix | 39 positions; 38×22D, 1×8 twinax |
| Coupling | Triple-start threaded, self-locking |
| Contact / termination | P (crimp pin) |
| Keying / option | N |
| Shell material and finish | Aluminum alloy; electroless nickel |
Applications
These are selection and sourcing contexts for the listed catalog configuration. Suitability depends on the equipment interface, operating conditions and supplied-item documentation.
Buyer Q&A
Which shell and insert configuration is listed for D38999/20FE02PN?
The catalog lists shell E (17), insert 02, with 39 positions (38×22D, 1×8 twinax). These are insert positions; supplied contact population is confirmed for the offered unit.
What mounting information matters for D38999/20FE02PN?
This is a wall-mount receptacle in shell E (17). Compare flange mounting, panel opening, seal placement and rear clearance against the controlled installation drawing.
How should a mating half be checked for D38999/20FE02PN?
Check MIL-DTL-38999 Series III, shell E (17), insert 02, keying N and complementary contact gender using both complete drawings.
What should an RFQ for D38999/20FE02PN include?
Send D38999/20FE02PN, quantity, mating-half reference, panel or harness drawing, contact/termination requirements and required documents. Optional electrical or environmental requirements must be supported by offered-unit documentation.
Similar Products
Compare adjacent catalog configurations and confirm mating, keying and rear interface by drawing.
