D38999/20FA35SLNC2

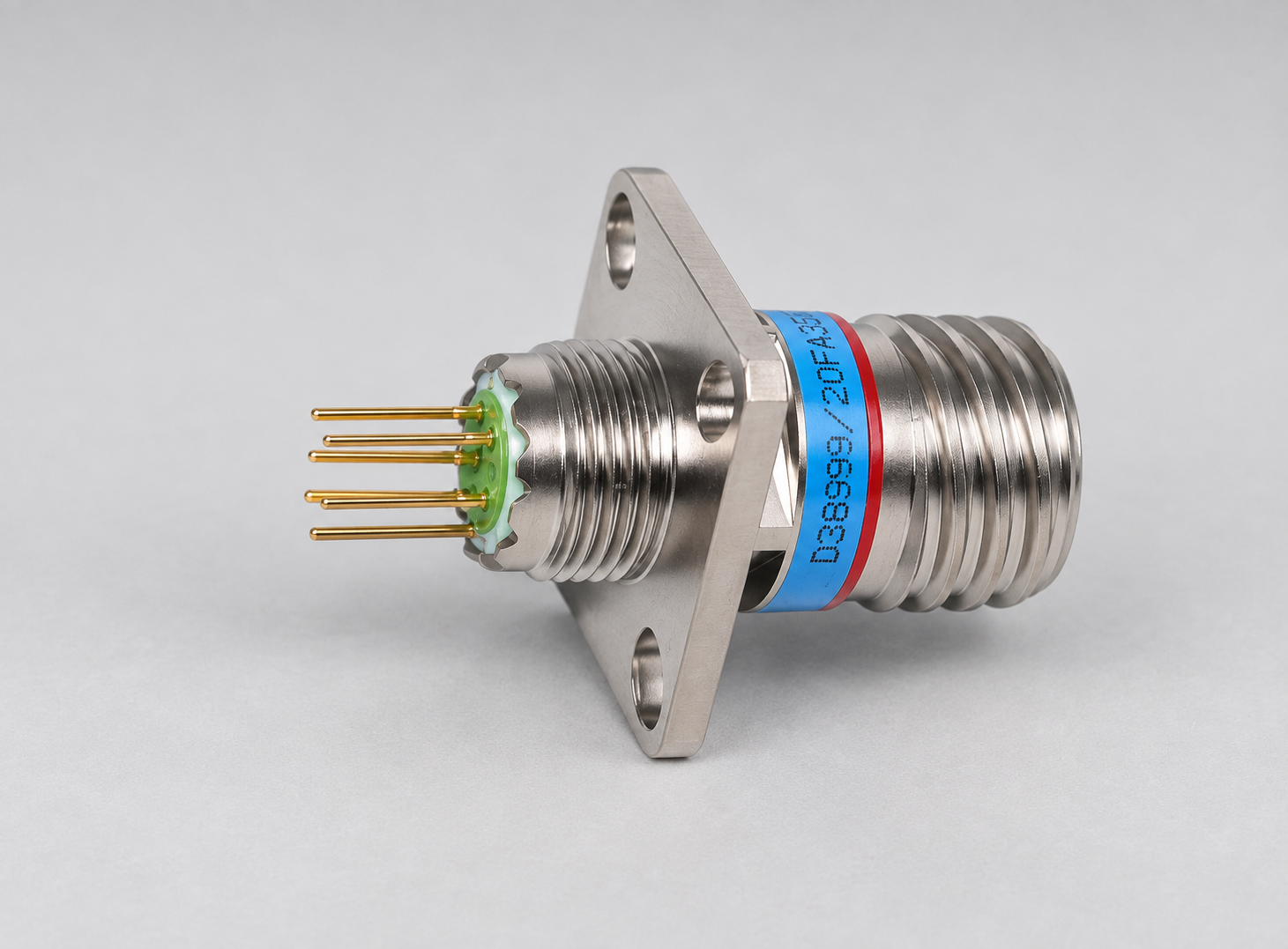

D38999/20FA35SLNC2 is a catalog reference for a MIL-DTL-38999 Series III wall-mount receptacle. The cited catalog lists shell A (09), insert 35 and 6 positions; 6×22D. Verify the offered item against its controlled drawing.
Product number D38999/20FA35SLNC2
- Series
- Series III
- Shell / insert
- A (09) / 35
- Contact positions
- 6 positions; 6×22D
- Material / finish
- Aluminum alloy; electroless nickel
Description
D38999/20FA35SLNC2 is a catalog reference for a MIL-DTL-38999 Series III wall-mount receptacle. The cited catalog lists shell A (09), insert 35 and 6 positions; 6×22D. Verify the offered item against its controlled drawing. Catalog family values are reference data and do not establish unit test results or qualification status. Confirm the offered unit, exact ordering code, mating interface and drawing before ordering. Catalog convention note: Optional C2 is described in own catalog; verify exact option on supplied item.
Configuration checklist
- Match the full ordering code and insert face to the supplied drawing.
- Confirm the mating half, contact gender, key position and coupling interface.
- Check shell style, rear configuration, cable exit and any accessory interface.
- Request the documents required for the offered unit; catalog values are not unit test results.
Technical Data
Ordering-code and insert data are catalog references. Electrical, environmental and mating-life values shown as catalog or family figures do not certify the supplied unit. Confirm the exact configuration and required evidence against its controlled drawing.
| Series and shell style | MIL-DTL-38999 Series III; Wall-mount receptacle |
|---|---|
| Coupling | Triple-start threaded, self-locking |
| Ordering-code service / finish suffix | F |
| Shell size / insert arrangement | A (09) / 35 |
| Contact quantity and size mix | 6 positions; 6×22D |
| Contact type / termination | SL (long PCB socket) |
| Keying / option | N; option C2 |
| Shell material and finish | Aluminum alloy; electroless nickel |
| Insert service rating | M |
| Catalog withstand voltage at sea level | 1300 V |
| Catalog withstand voltage at 21 km | 800 V |
| Catalog current rating by contact size | 22D: 5 A/contact |
| Catalog contact resistance by size | 22D: ≤12 mΩ |
| Catalog operating temperature | -65 to +200 °C |
| Catalog salt spray | 48 h |
| Family catalog mating life | ≥500 mating cycles (family catalog) |
| Family catalog insulation resistance | ≥5000 MΩ normal (family, own pp.46/73) |
| Family catalog shell continuity | ≤1.0 mΩ |
| Family catalog EMI shielding | ≥85 dB (100 MHz–1 GHz); ≥65 dB (1–10 GHz) (family, own pp.46/72) |
| Catalog drawing reference | Own 2025 p.57, 7.2 flange drawing |
| Catalog source | Own 2025 pp.45-47; Donconn pp.3-5 | Own 2025 pp.45-47,104-105 | Own 2025 p.104 row 1 |
| Data boundary | Catalog/family reference only; not a test result or qualification certificate for an offered unit. |
| Accessory interface / shell drawing reference | M 12×1-6g; verify against controlled drawing. |
