UAV and motorsport harnesses reward the same disciplined connector decisions: suitable circuit capacity, verified electrical limits, secure sealing, controlled strain relief, low-mass routing and serviceable assembly. The correct choice comes from the complete system requirement, not from connector size alone.

Conceptual studio mockup of compact connector and harness-protection choices; not a flight- or race-qualified customer installation.

Which requirements should be defined first?

Start with circuit and environment data before choosing a connector family. A lightweight housing is not useful if the contact system does not support the conductor, current, temperature or vibration requirement. Likewise, a sealed connector may still need suitable rear strain relief and abrasion protection.

Circuit count, conductor size, current, voltage and signal sensitivity.

Expected temperature, fluid, dust, moisture, vibration and service conditions.

Mating frequency, field-service access and acceptable assembly tooling.

Allowed connector mass, envelope, cable exit direction and bend radius.

Shielding, grounding, strain relief, boot transition and abrasion protection.

Required drawings, inspection records, material declarations or qualification evidence.

Compact sealed connectors for signal circuits

Compact sealed rectangular connector kits can be practical for sensors, controls and auxiliary circuits when the selected contacts match the wire and electrical requirements. A complete kit should be reviewed as mating housings, contacts, secondary locks and sealing components—not as two empty plastic shells.

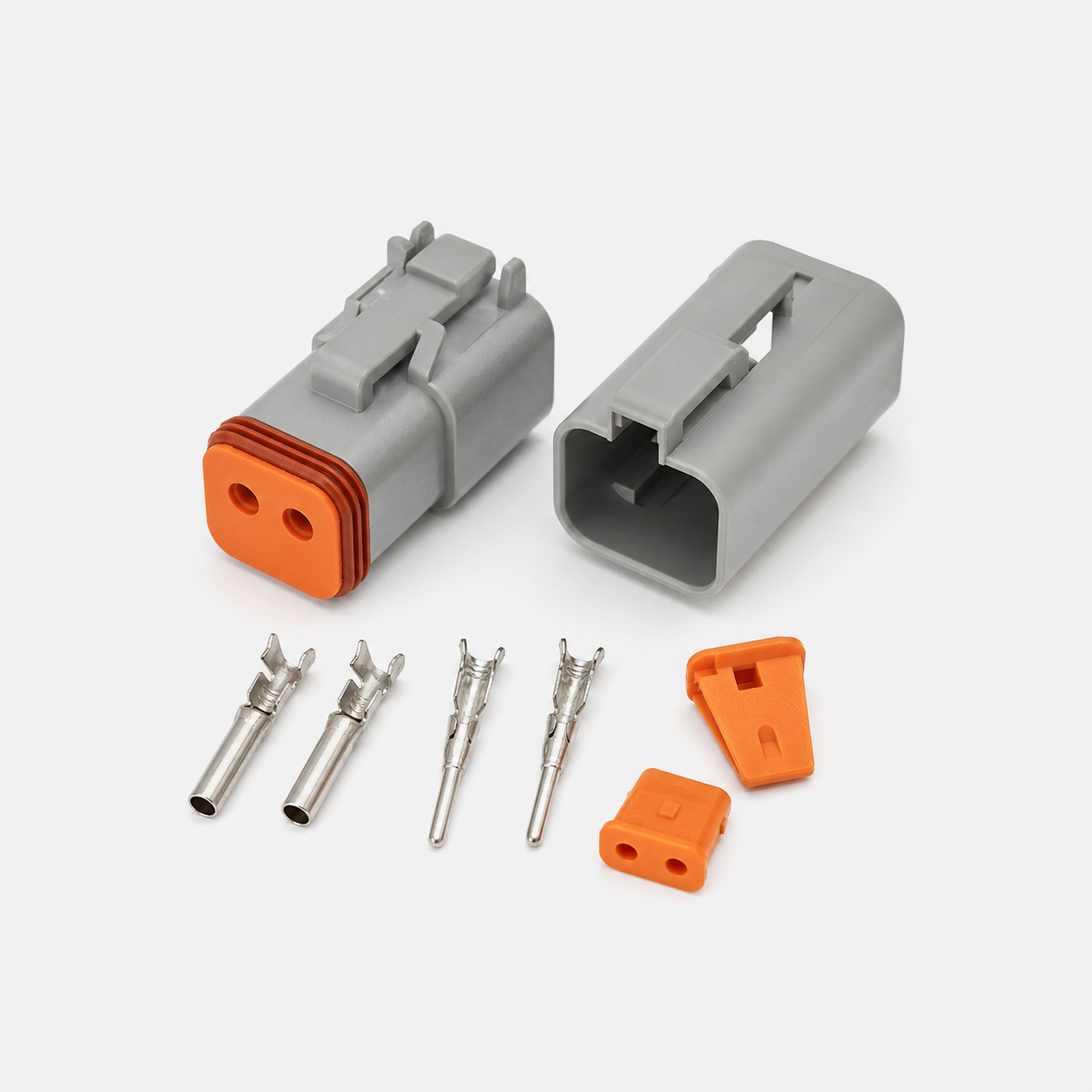

Generic two-way sealed connector-kit illustration; supplier electrical and environmental data must be confirmed.

Circular connectors for dense or modular interfaces

Circular connectors can consolidate multiple circuits into a robust panel or equipment interface. Selection should account for shell style, insert arrangement, contact type, keying and the rear-accessory package. For a cable-side assembly, the backshell, boot and protection materials often determine the finished bend geometry and serviceability.

Design the connector-to-cable transition

Confirm the contact-to-wire termination and inspection method.

Provide mechanical support so conductor terminations do not carry cable loads.

Select shielding and grounding methods from the system electromagnetic requirements.

Use boots, tubing or sleeving that fit the actual bundle and installation process.

Route the harness with enough bend radius and access for mating, inspection and replacement.

Harness reliability depends on the transition, not just the connector body. Contacts, seals, backshell, boot, braid and cable protection should be reviewed as one assembly.

Procurement workflow for mixed connector BOMs

Small UAV and motorsport programs often combine circular connectors, compact sealed kits, sensor connectors, contacts, boots, tubing and braided protection. A mixed-SKU BOM quotation can reduce supplier count, but each item must retain its own technical basis and approval status.

Separate original-brand requirements from compatible-alternative candidates.

Mark all items that need drawing recovery or sample confirmation.

Use globally unique image and document filenames in the CMS batch workflow.

Import new website records as drafts, review the rendered page and schedule only approved content.

Frequently asked questions

Is smaller always better for UAV wiring?

No. Size and mass must be balanced against conductor range, circuit loading, mechanical support, sealing, assembly tooling and service access.

Can the same connector be used in motorsport and UAV systems?

A connector family may appear in both markets, but suitability depends on the specific configuration and verified application requirements. Do not transfer an approval or performance assumption from one use case to another.

What information speeds up a harness BOM quote?

Provide connector references, circuit and wire data, cable diameters, drawings, quantities, environmental constraints, preferred sourcing route and the required validation documents.
